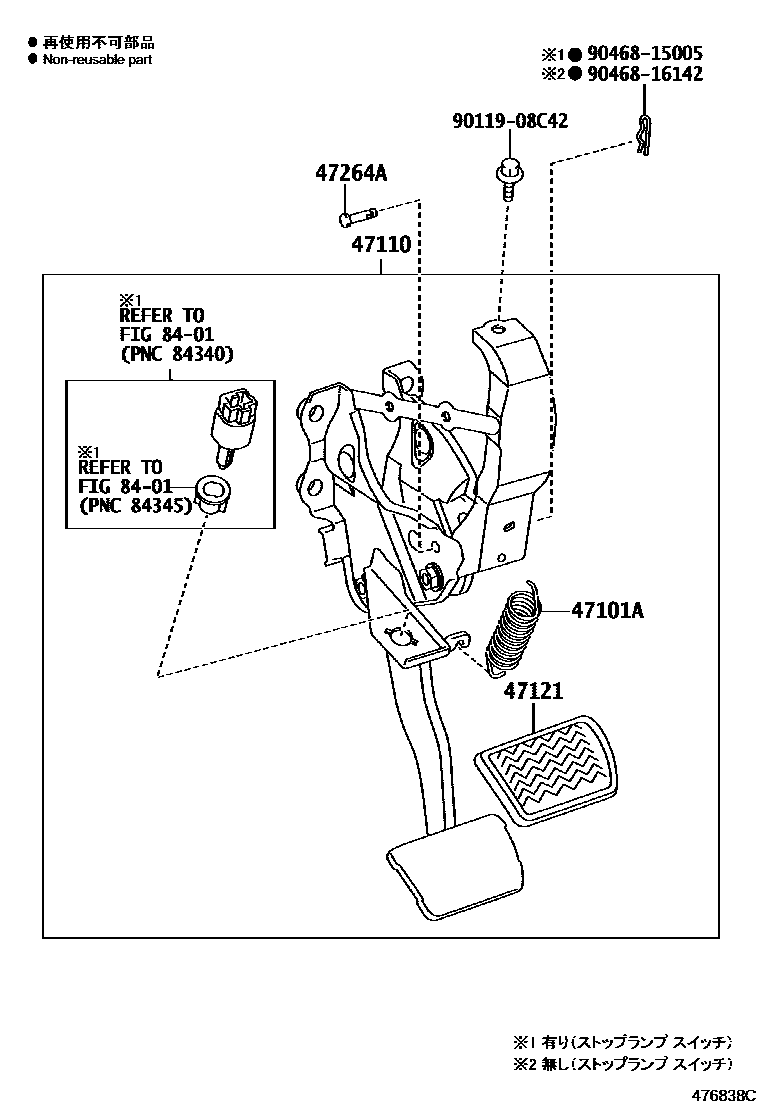

BRAKE PEDAL & BRACKET

0001 1WITHOUT(VSC) 0002 1WITH(VSC)

47101ASPRING(FOR BRAKE PEDAL RETURN)

main47146-42010iACA31,36200511-200808

main47146-42030iACA31,36201306-201404

main47146-78010iACA3#201405

47110SUPPORT ASSY, BRAKE PEDAL

main47110-42151iACA31,36..G,X200912-201212

main47110-42160supersedes 47110-42150iACA31..G,X; ACA31..S; ACA36200808-200912

main47110-42161iACA31,36..S,STYLE200912-201306

main47110-42162iACA33,38201306-201311

main47110-42163iACA3#201602-201606

47121PAD, BRAKE PEDAL

main47121-42010iACA33,38,GSA33200511-201002

47264APIN(FOR PUSH ROD)

main90249-06180supersedes 90249-08256iACA33,38,GSA33201002

main90249-08256iACA31,36..G,X200808-201212

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9046815005

main90468-15005

9046816142

main90468-16142

8 parts on this diagram · 2 diagrams in section
