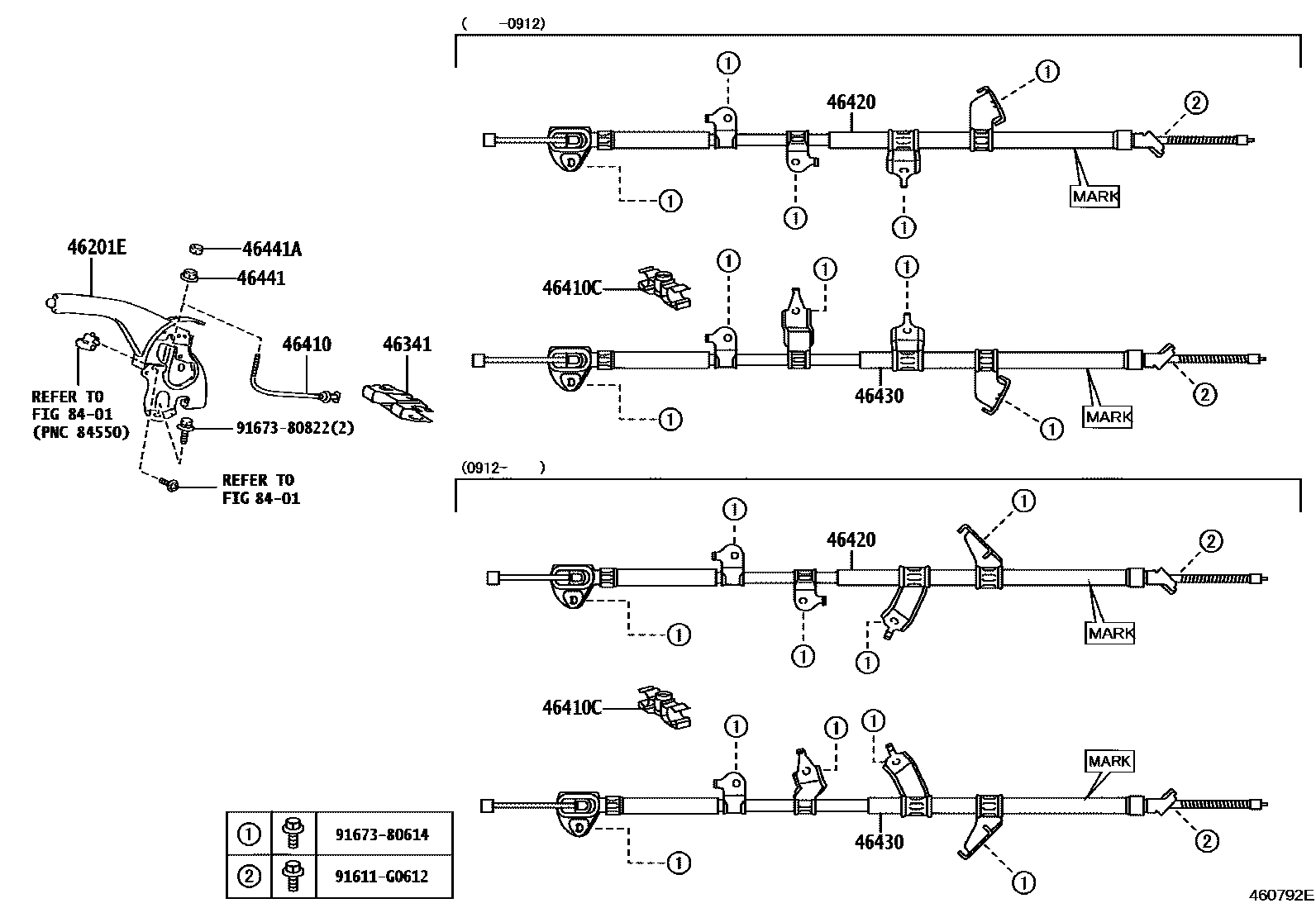

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-42100-B0iACA31,36..G,S; ACA31,36..X200511-200808

DK.GRAY,TRIM1#; DK.GRAY,TRIM11,13

main46201-42101iACA31,36201211-201212

main46201-42101-B0iACA31,36201103-201211

DK.GRAY,TRIM1#

main46201-42101-B1iACA31,36201212-201606

DK.GRAY/BLACK,TRIM1#

main46201-42110-B0iACA38200808-201002

DK.GRAY,TRIM1#,4#

main46201-42111-B0iACA33,38,GSA33201103

DK.GRAY,TRIM1#,4#

46341EQUALIZER, PARKING BRAKE

main46341-20070iACA33,38,GSA33200511-200811

main46341-42020iACA33,38,GSA33200812-201002

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-42050iACA33,38,GSA33200511-201002

main46410-42051iACA31,36; ACA33,38,GSA33201103

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-42010iACA31,36200808

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-42110iACA33,GSA33200708-200709

main46420-42120iACA31,36200511-200709

main46420-42130iACA33,38,GSA33200710-201002

main46420-42131iACA33,38,GSA33201002-201205

main46420-42132iACA33,38,GSA33201206

main46420-42140iACA31,36200808-200912

main46420-42141iACA31,36200912-201205

main46420-42142iACA31,36201206-201606

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-42110iACA33,GSA33200708-200709

main46430-42120iACA31,36200511-200709

main46430-42130iACA33,38,GSA33200710-201002

main46430-42131iACA33,38,GSA33201002-201205

main46430-42132iACA33,38,GSA33201206

main46430-42140iACA31,36200808-200912

main46430-42141iACA31,36200912-201205

main46430-42142iACA31,36201206-201606

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iACA31,36200511-200808

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iACA31,36200511-200808

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611G0612

main91611-G0612

9167380614

main91673-80614

9167380822

main91673-80822

12 parts on this diagram · 2 diagrams in section
