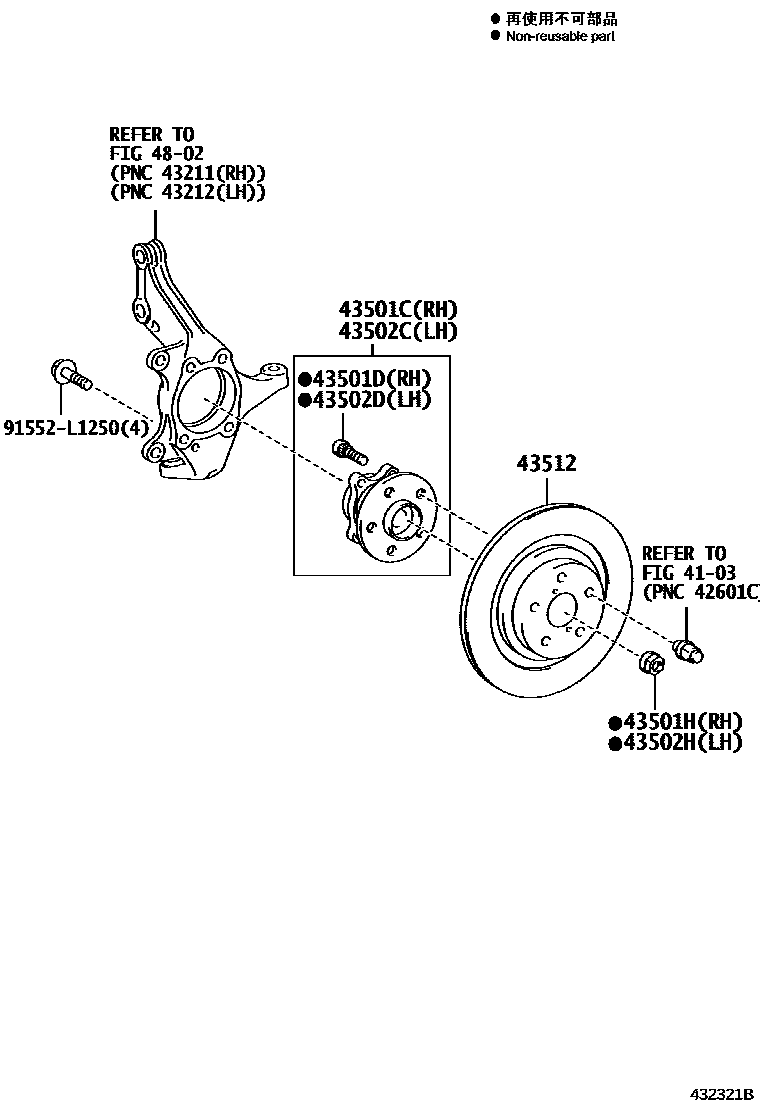

FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42010iACA33,38200511-201606

main43550-42020iGSA33200708-201212

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iACA33,38,GSA33200511-201002

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iACA31,36200511-201002

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42010iACA31,36200511-201002

main43550-42020iGSA33200708-201212

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iACA33,38,GSA33200511-201002

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iACA33,38,GSA33200511-201002

43512DISC, FRONT

main43512-42050iACA38200511-201606

main43512-42090iACA3#,GSA33200801-200802

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552L1250

main91552-L1250

10 parts on this diagram · 1 diagram in section
