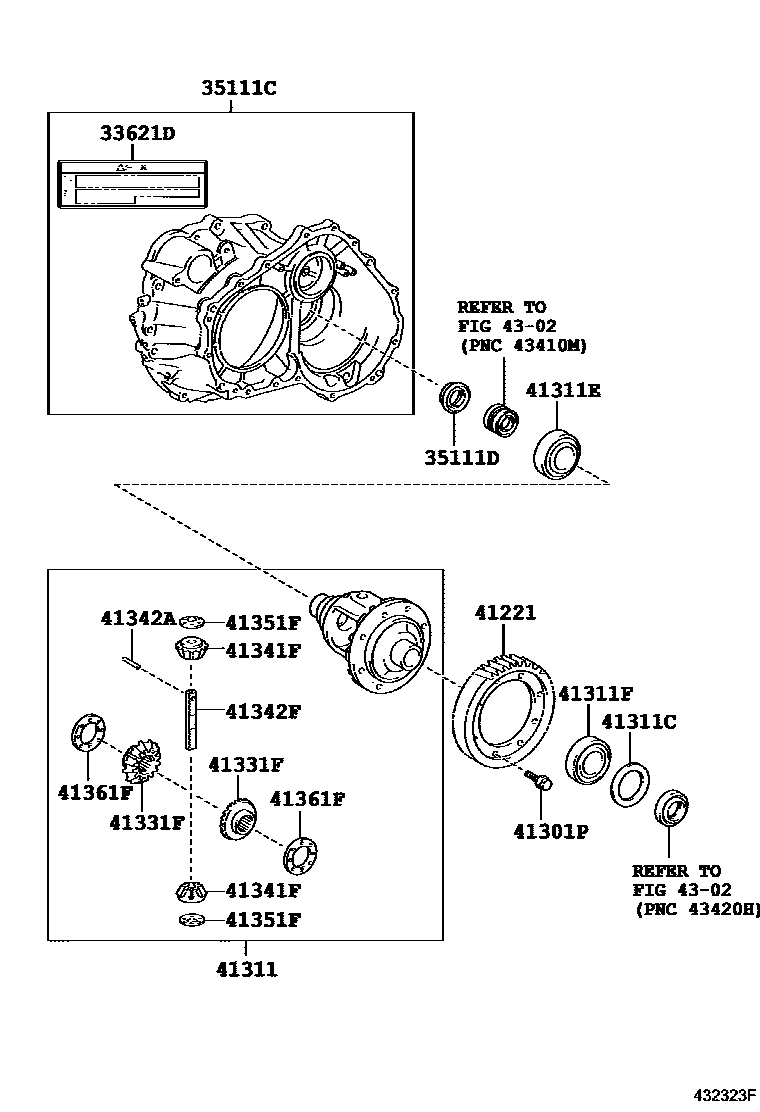

FRONT AXLE HOUSING & DIFFERENTIAL
33621DLABEL, TRANSAXLE OIL INFORMATION
35111CHOUSING, TRANSAXLE
35111DSEAL, OIL (FOR TRANSAXLE HOUSING)
41221GEAR, FRONT DIFFERENTIAL RING
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
4302
16 parts on this diagram · 1 diagram in section
