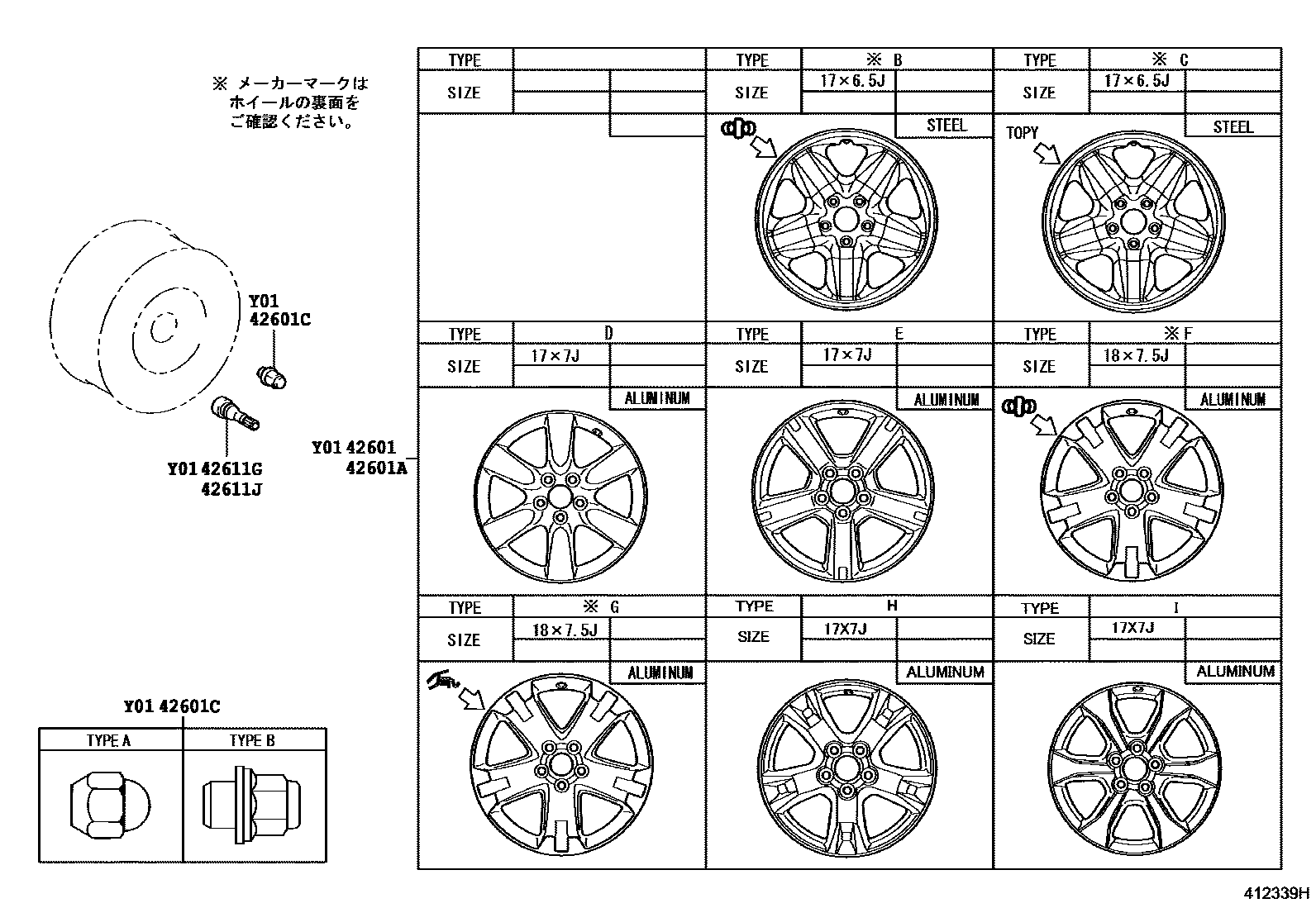

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-42190×4iACA31,36..STYLE,X200808-201403

main42611-42191×4iACA3#201404

main42611-42200×4iACA31,36..STYLE,X200808

main42611-42220×4supersedes 42611-42200iACA31,36..G; ACA31,36..X200511-200808

main42611-42230×4iACA31,GSA33..350S,S200511-200808

main42611-42240×4iACA31,GSA33..350S,S200511-200808

main42611-42320×4iACA31,36..G200808-201212

main42611-42330×4iACA31..S200808-201212

main42611-42390×4iGSA33200808-201002

main42611-42400×4iACA33,38; GSA33201002-201212

main42611-42480×4iACA33,38201209-201212

main42611-42490×4iACA31,36201212

42601AWHEEL, DISC (FOR SPARE)

main42611-42190iACA31,36..X200808-201212

main42611-42200iACA31,36..X200808-201212

main42611-42220iACA31,36..G; ACA31,36..X200511-200808

main42611-42230iACA31..S200511-200808

main42611-42240iACA31..S200511-200808

main42611-42330iACA31..S200808-201212

main42611-42210iACA33,38200708-201002

main42611-42320iACA31,36..G; ACA31..G; ACA36..G200808-201212

main42611-42370supersedes 42611-42480iACA33,38201002-201212

main42611-42390iGSA33200808-201002

main42611-42400supersedes 42611-42480iACA33,38; GSA33201002-201212

main42611-42480iACA33,38201209-201212

42601CNUT, HUB (FOR AXLE)

main90942-01021×20iACA31,36..STYLE,X200808-201606

main90942-01033×20supersedes 90942-01021iACA31,36..G,S200808-201212

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iACA33,38,GSA33201002

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iACA31,36200511-200808

5 parts on this diagram · 4 diagrams in section
