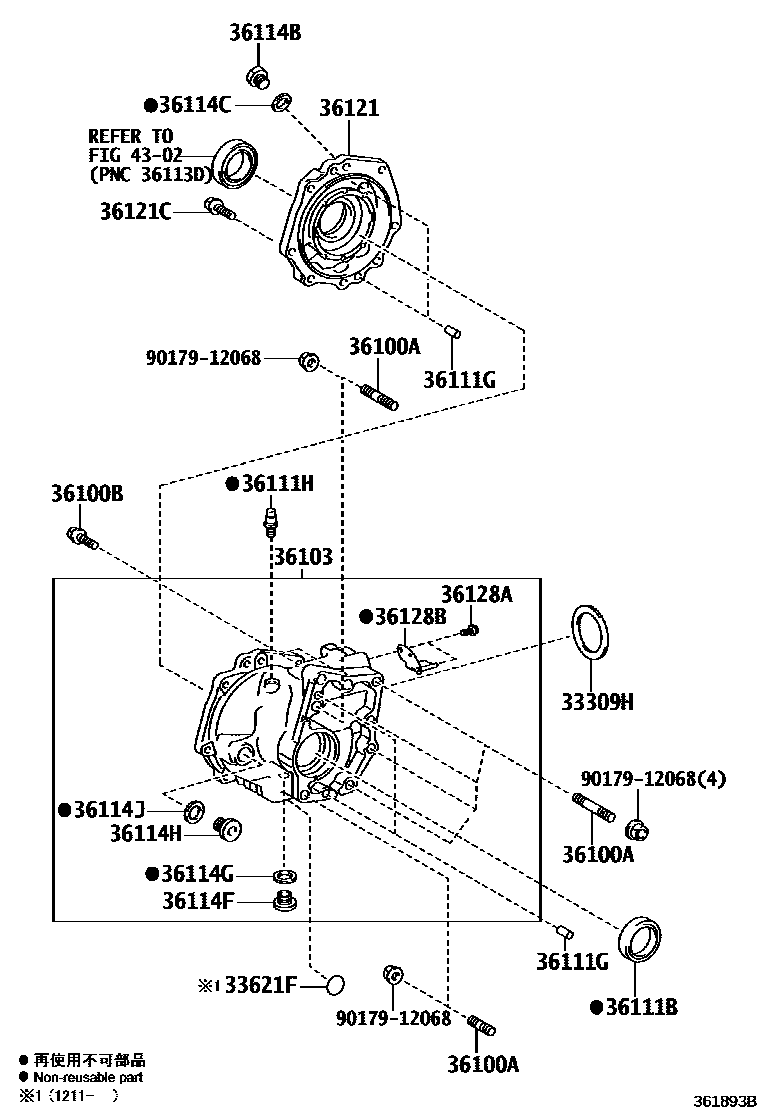

Toyota RAV4/VANGUARD — TRANSFER CASE & EXTENSION HOUSING
33309HWASHER, TRANSFER OUTPUT SHAFT
33621FLABEL, TRANSAXLE OIL INFORMATION
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36114JGASKET, NO.2 (FOR TRANSFER CASE)
36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)
36128ABOLT (FOR BREATHER OIL DEFLECTOR)
36128BDEFLECTOR, BREATHER OIL
4302FRONT DRIVE SHAFT
9017912068
20 parts on this diagram · 1 diagram in section
TRANSFER CASE & EXTENSION HOUSING for Toyota RAV4/VANGUARD
This section contains 20 genuine Toyota parts for the TRANSFER CASE & EXTENSION HOUSING system of the Toyota RAV4/VANGUARD. Key components include: WASHER, TRANSFER OUTPUT SHAFT, LABEL, TRANSAXLE OIL INFORMATION, BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING), BOLT (FOR TRANSFER & TRANSAXLE SETTING), CASE SUB-ASSY, TRANSFER.
