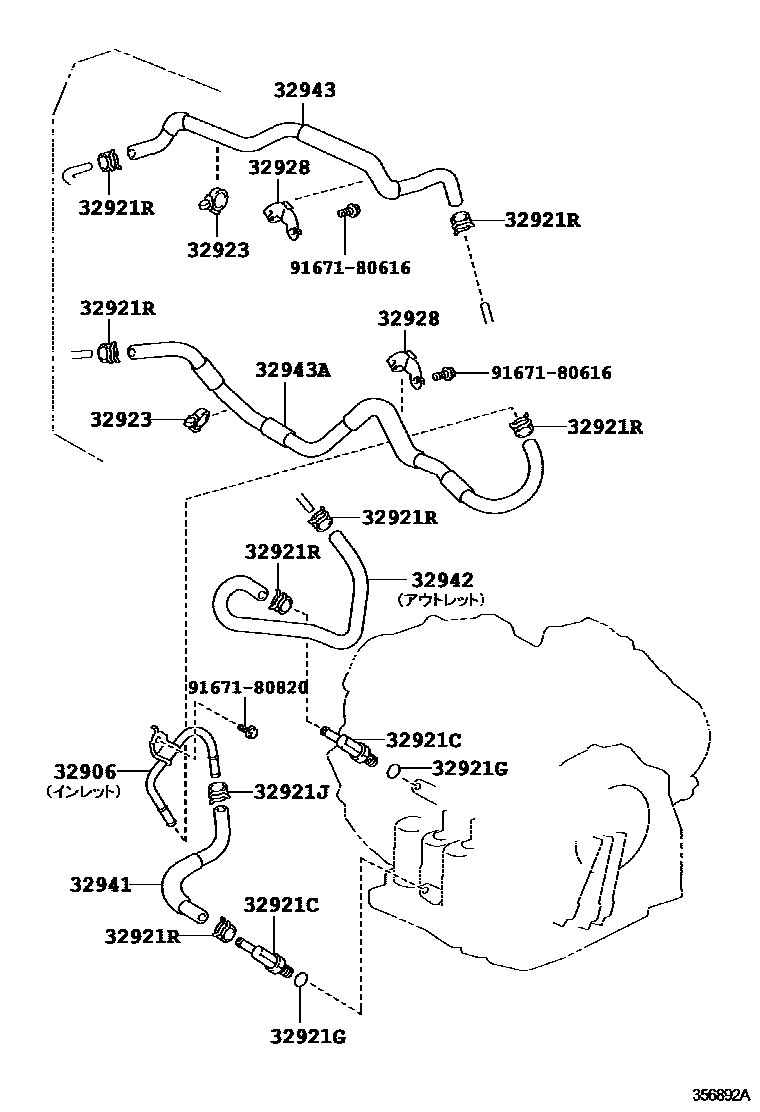

OIL COOLER & TUBE (ATM)

32906TUBE SUB-ASSY, OIL COOLER

main32907-42030iGSA33201002-201212

32921CUNION(FOR OIL COOLER TUBE)

main90407-13009×2iGSA33200708-201002

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iGSA33201002-201212

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004iGSA33200902-201002

main90467-16022iGSA33200708-200901

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90467-16022×7iGSA33200708-201002

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main82711-51020×2iGSA33200708-201002

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-42010×2iGSA33200708-201002

32941HOSE, OIL COOLER INLET, NO.1

main32942-42020iGSA33200708-201002

32942HOSE, OIL COOLER OUTLET, NO.1

main32941-42030iGSA33200708-201002

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-42030iGSA33200708-201002

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-42020iGSA33200708-201002

9167180616

main91671-80616

9167180820

main91671-80820

13 parts on this diagram · 1 diagram in section
