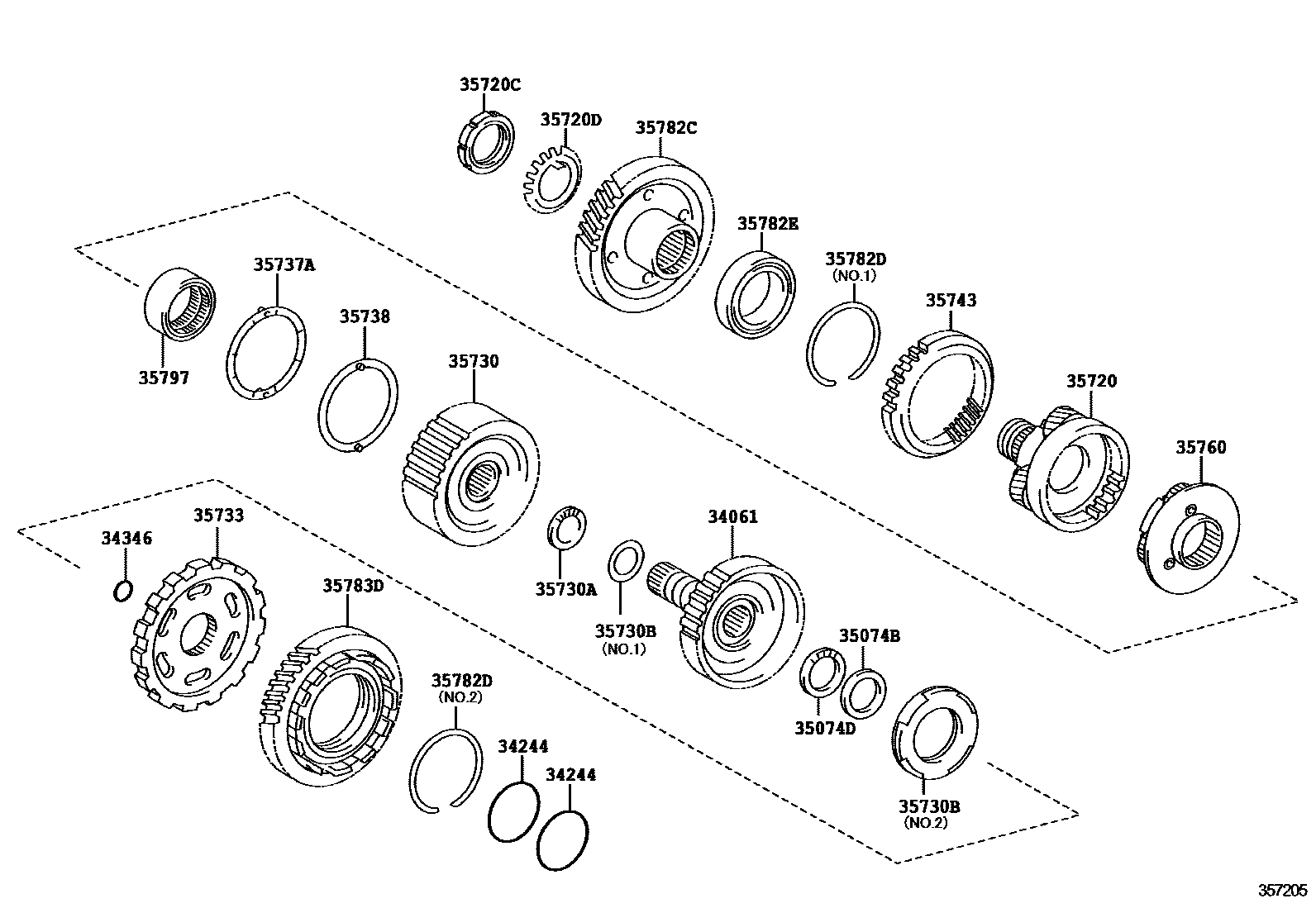

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

34061HUB SUB-ASSY, OVERDREVE DIRECT CLUTCH

main34061-33010iGSA33200708-201002

34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL

main34244-21010×2iGSA33200708-201002

34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL

main34346-21011iGSA33200708-201002

35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)

main35789-33030iGSA33200708-201002

35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)

main90374-25010iGSA33200708-201002

35720GEAR ASSY, FRONT PLANETARY

main35720-28070iGSA33200708-201002

35720CNUT (FOR FRONT PLANETARY GEAR)

main90179-46001iGSA33200708-201002

35720DWASHER (FOR FRONT PLANETARY GEAR)

main90209-46001iGSA33200708-201002

35730GEAR ASSY, REAR PLANETARY SUN

main35730-33011iGSA33200708-201002

35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)

main35788-33010iGSA33200708-201002

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-31007iGSA33200708-201002

main90374-55002iGSA33201002-201212

main90374-55003iGSA33200708-201002

35733GEAR, PARKING LOCK

main35733-21010iGSA33200708-201002

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-42010iGSA33200708-201002

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-33030iGSA33200708-201002

35743GEAR, FRONT PLANETARY RING

main35743-28010iGSA33200708-201002

35760GEAR ASSY, REAR PLANETARY

main35760-42010iGSA33200708-201002

35782CGEAR, COUNTER DRIVE

main35782-33020iGSA33200708-201002

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-87004iGSA33200708-201002

main90520-89004iGSA33200708-201002

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-59001iGSA33201002-201212

35783DGEAR, COUNTER DRIVEN

main35783-33030iGSA33200708-201002

35797RACE, 1 WAY CLUTCH INNER

main35797-21010iGSA33200708-201002

21 parts on this diagram · 1 diagram in section
