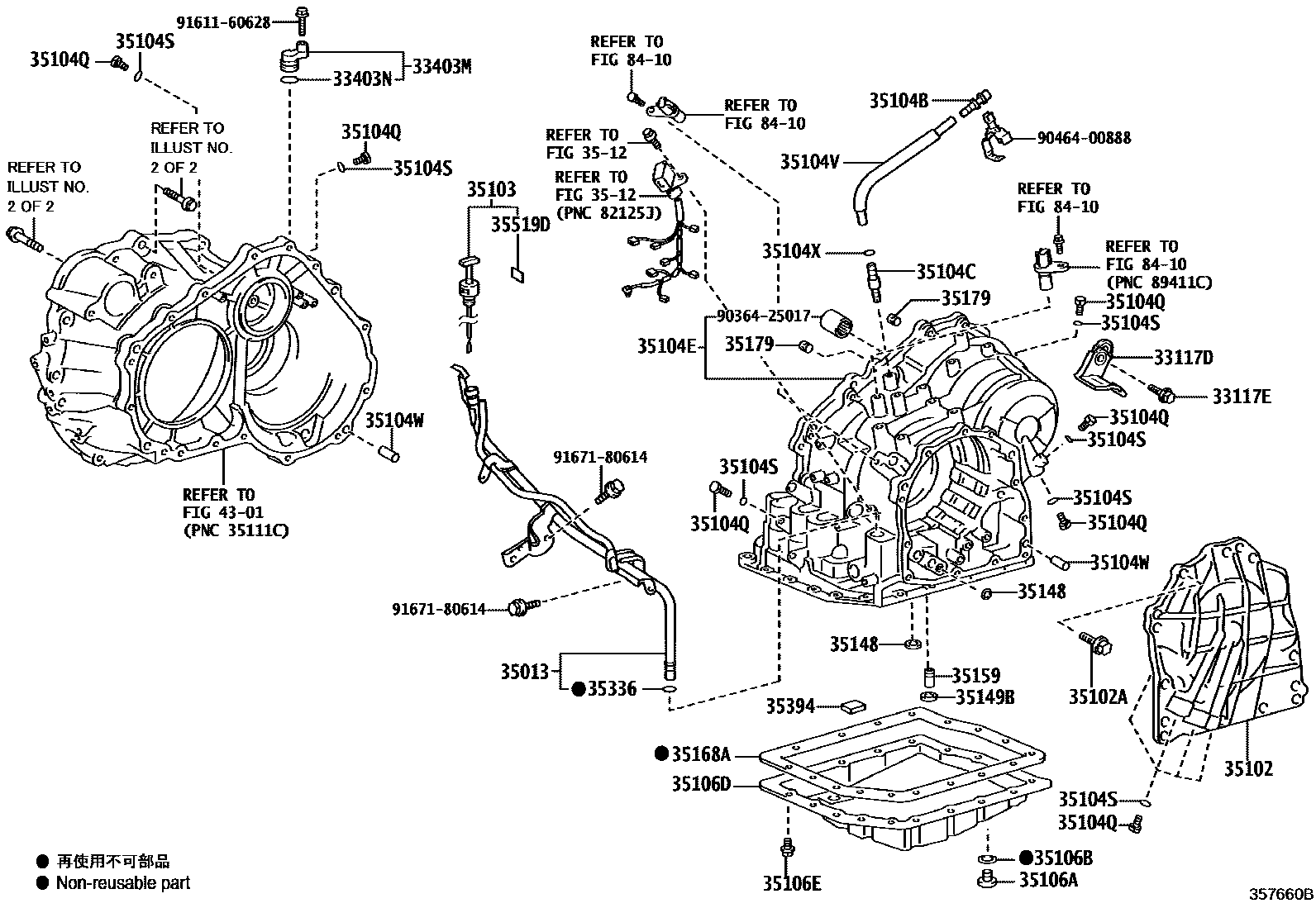

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U151F 0002 1U151F 0003 1U151F

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-21010iGSA33201002-201212

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main91641-H0820×2iGSA33200708-201002

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-21020iGSA33200708-201002

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24020iGSA33200708-201002

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-42110iGSA33200708-201002

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-20060iGSA33200708-201002

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071×11iGSA33200708-201002

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-42100iGSA33200708-201002

main35103-42101iGSA33201206-201212

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iGSA33200708-201002

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03183iGSA33200708-201002

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-33042iGSA33200708-201002

main35104-33043iGSA33201003-201212

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×10iGSA33200708-201002

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×10iGSA33200708-201002

35104VHOSE (FOR BREATHER PLUG)

main35121-21020iGSA33201002-201212

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10034×4iGSA33201002-201212

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iGSA33200708-201002

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iGSA33200708-201002

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iGSA33201002-201212

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33040iGSA33200708-201002

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iGSA33200708-201002

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010×4iGSA33200708-201002

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iGSA33200708-201002

35159GASKET, BRAKE DRUM

main35159-21010iGSA33200708-201002

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21010iGSA33200708-200709

main35168-21011iGSA33200709-201002

35179GASKET, OVERDRIVE BRAKE

main35179-32010×2iGSA33200708-201002

main90301-06008×2iGSA33201003-201212

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iGSA33200708-201002

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-48010×2iGSA33200708-201002

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-41010iGSA33200708-201002

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9036425017

main90364-25017

9046400888

main90464-00888

9161160628

main91611-60628

9167180614

main91671-80614

35 parts on this diagram · 3 diagrams in section
