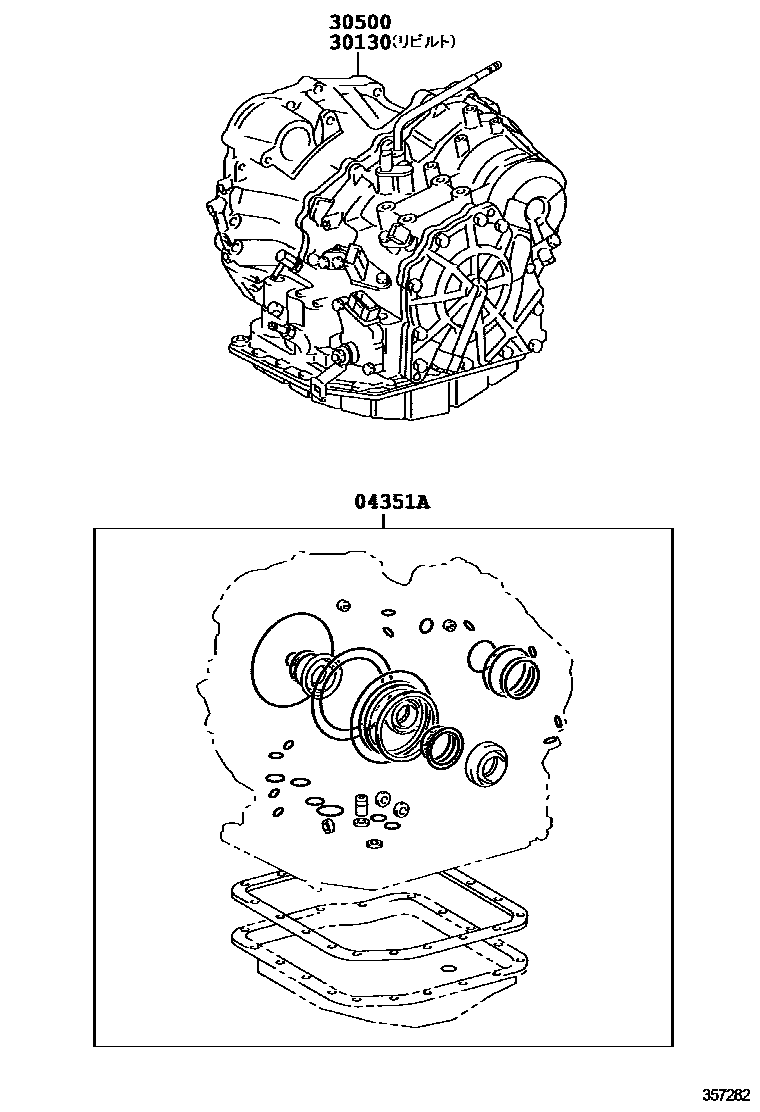

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-42080i200708-200905

main04351-42130i200906-201002

30130TRANSAXLE ASSY, REBUILT

main30130-42201i200708-200907

main30130-42202i200907-201002

30500TRANSAXLE ASSY, AUTOMATIC

main30500-42201i200708-200907

main30500-42202i200907-201002

3 parts on this diagram · 1 diagram in section
