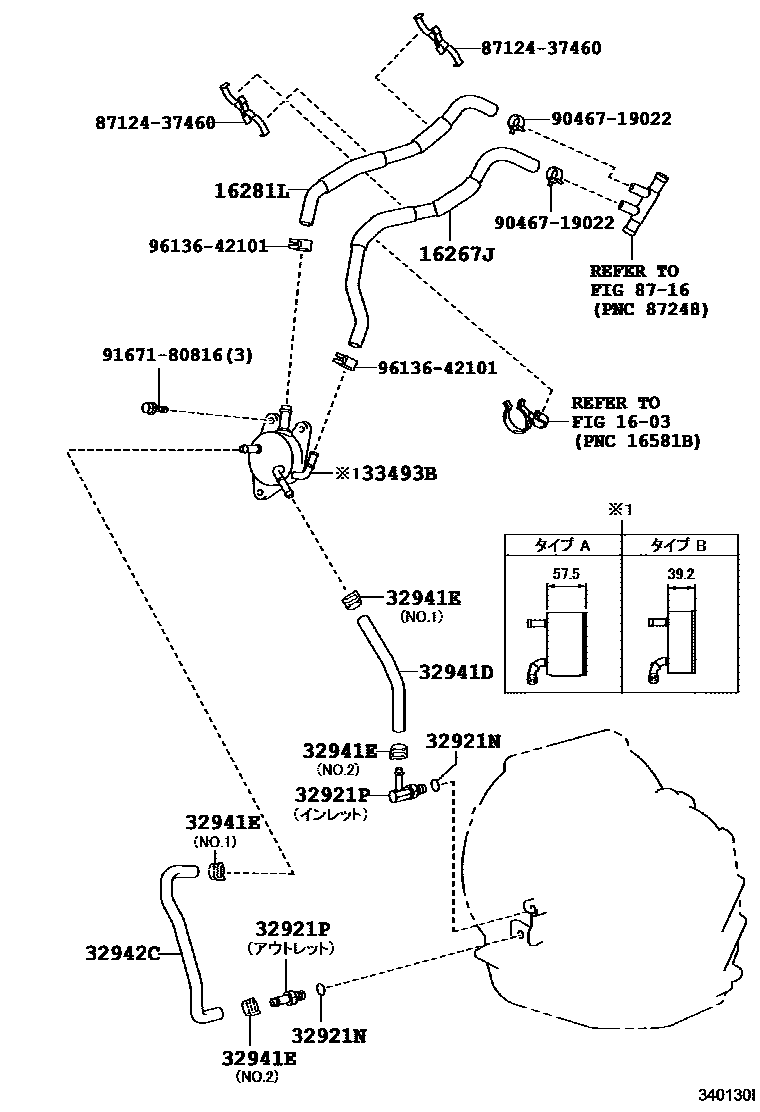

OIL COOLER & TUBE(CVT)

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16267JHOSE, WATER BY-PASS, NO.3

main16267-28040i2AZFE..ACA33,38200511-201002

16281LHOSE, WATER BY-PASS, NO.4

main16281-28020i2AZFE..ACA31,36200511-200808

32921NRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018×2iACA3#201512-201606

main90301-10189×2iACA33,38200511-201002

32921PUNION(FOR OIL COOLER TUBE)

main90404-13004iACA31,36200808-201511

main90404-13010iACA3#201512-201606

main90407-13009iACA33,38201002-201311

main90407-13010iACA3#201512-201606

32941DHOSE, OIL COOLER INLET

main32941-42050iACA33,38200511-200905

main90445-17100iACA33,38200905-201002

32941ECLIP(FOR OIL COOLER TUBE)

main90466-16004×2iACA31,36200709-200808

main90467-16022×2iACA33,38201002

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-42040iACA31,36200808-200904

main32942-58030iACA33,38201002

33493BCOOLER, OIL

main33493-42040iACA3#200511-200905

main33493-42080iACA33,38200905-201002

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

8712437460CLAMP, HEATER

main87124-37460

9046719022

main90467-19022

9167180816

main91671-80816

9613642101

main96136-42101

14 parts on this diagram · 1 diagram in section
