VACUUM PIPING

0001 1 0002 1

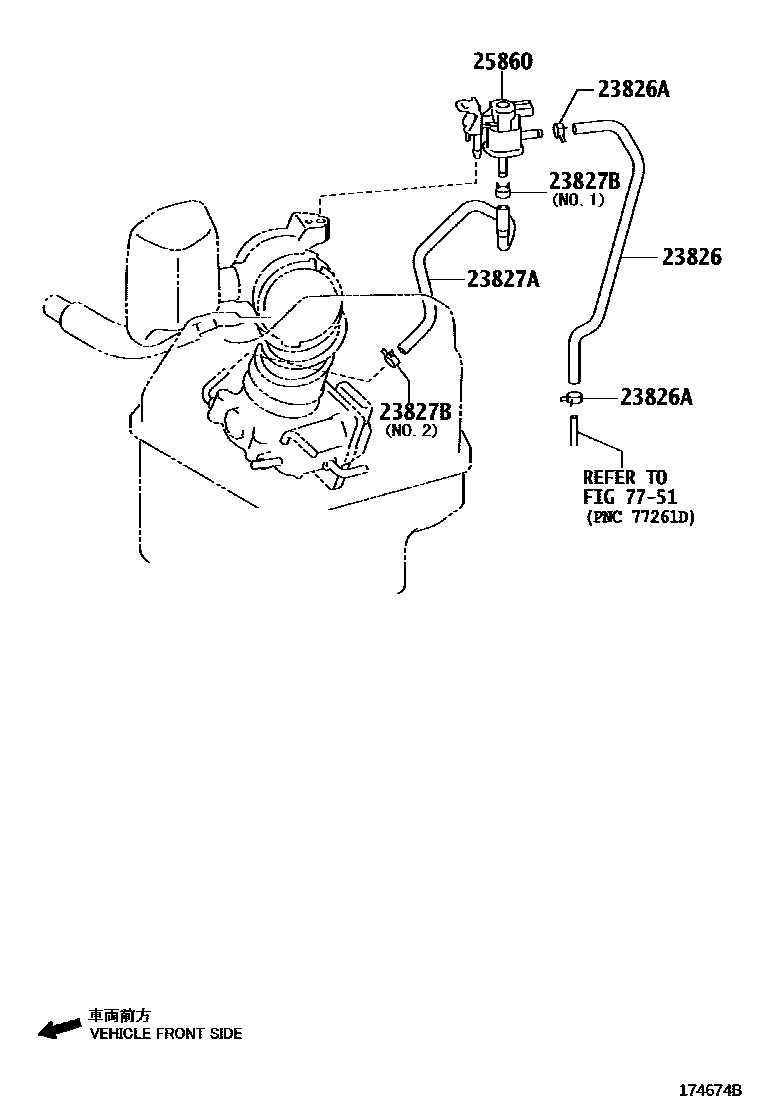

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-28340i2AZFE..ACA31,36200808

main23826-31091i2GRFE..GSA33201002-201212

main23826-31110i2GRFE..GSA33201002-201212

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003×2i2AZFE..ACA31,36200511-200808

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-28280i2AZFE..ACA33,38200511-201002

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-11003i2AZFE..ACA31,36200808

main96132-41000i2AZFE..ACA33,38201002

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28140i2AZFE..ACA31,36200511-200808

main25860-31070i2GRFE..GSA33200708-201002

7751FUEL TANK & TUBE

→ Go to FIG 77-51

6 parts on this diagram · 2 diagrams in section
