V-BELT

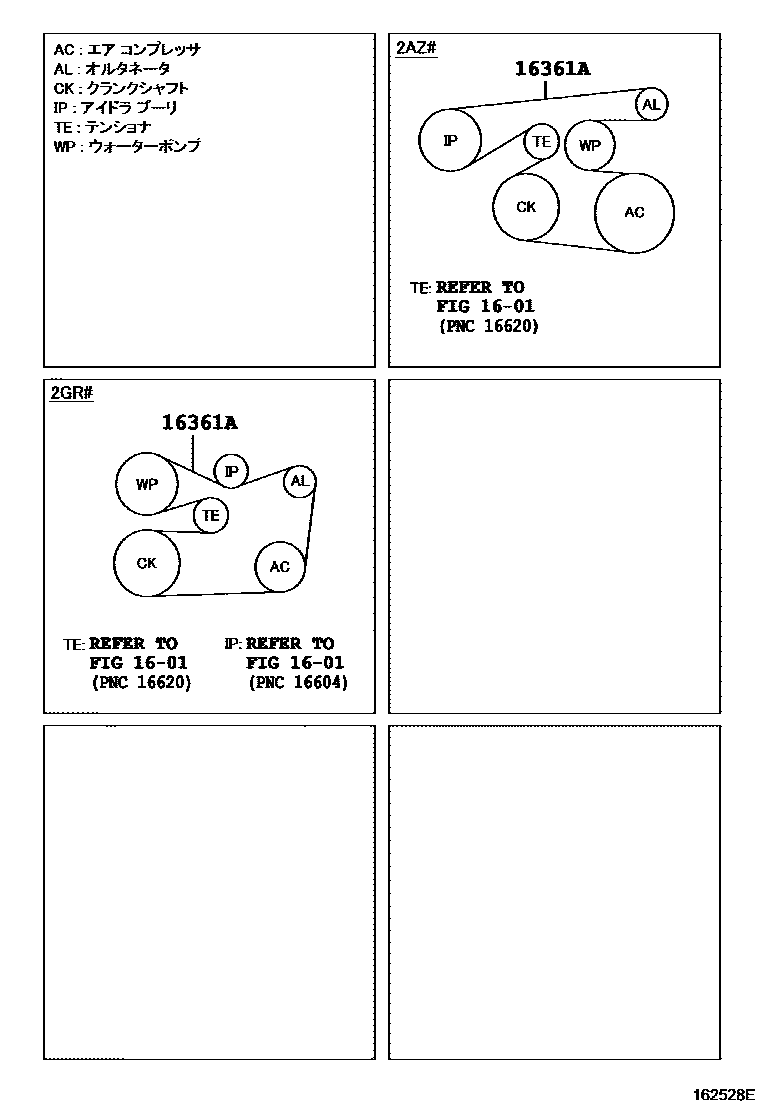

Parts diagram

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02651i200511-200808

main90916-02652i200708-201002

main99367-C1550i200708-201002

2 parts on this diagram · 1 diagram in section
