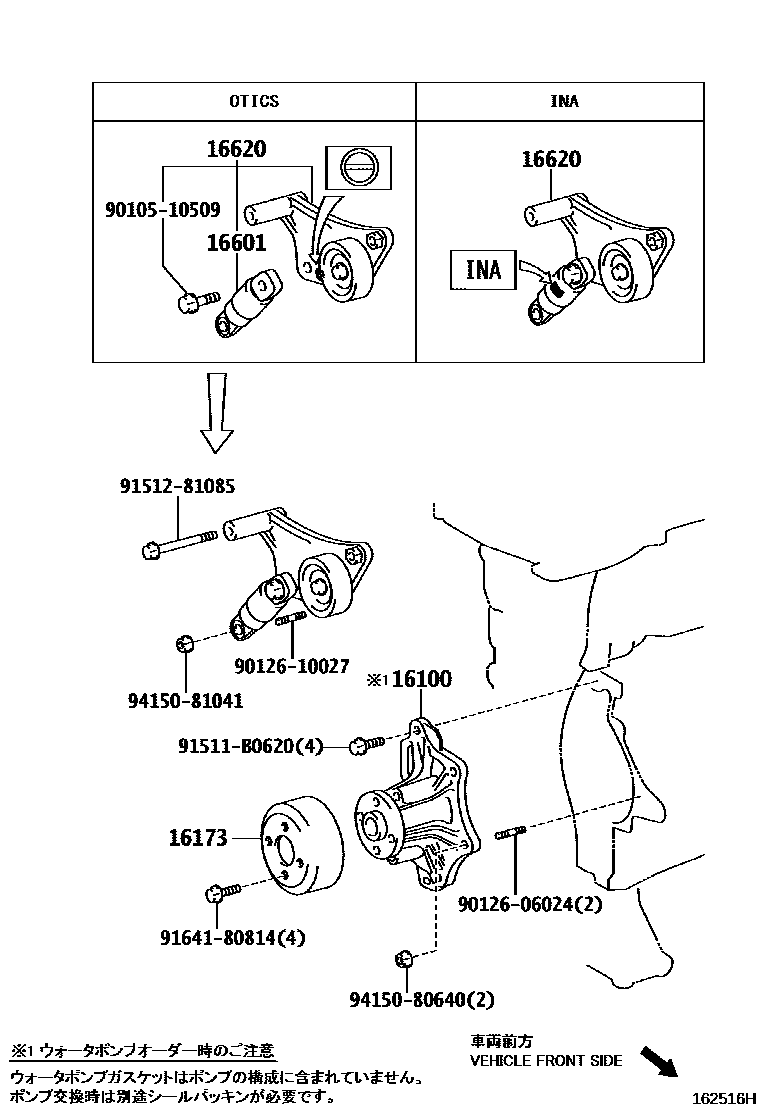

WATER PUMP

0001 1*195 0002 1*195 0004 1*194 0005 1*194 0007 1 0008 1

16100PUMP ASSY, ENGINE WATER

main16100-28040i2AZFE..ACA3#200511-200701

main16100-28041i2AZFE..ACA31,36200808

main16100-39455i2GRFE..GSA33200708-200903

main16100-39456i2GRFE..GSA33201002-201212

16173PULLEY, WATER PUMP

main16173-0H040i2AZFE..ACA33,38200803-201002

main16173-28020i2AZFE..ACA33,38200511-201002

main16173-31010i2GRFE..GSA33200708-201002

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28020i2AZFE..ACA3#200511-200610

main16601-28021i2AZFE..ACA3#200610-200804

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H020i2AZFE..ACA33,38200805-201002

main16620-0H021i2AZFE..ACA31,36; 2AZFE..ACA33,38201301

main16620-0H030i2AZFE..ACA3#200702-200805

main16620-28040i2AZFE..ACA3#200511-200610

main16620-28041i2AZFE..ACA3#200610-200804

main16620-31040i2GRFE..GSA33200708-201002

9010510509

main90105-10509

9012606024

main90126-06024

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

12 parts on this diagram · 6 diagrams in section
