ENGINE OIL COOLER

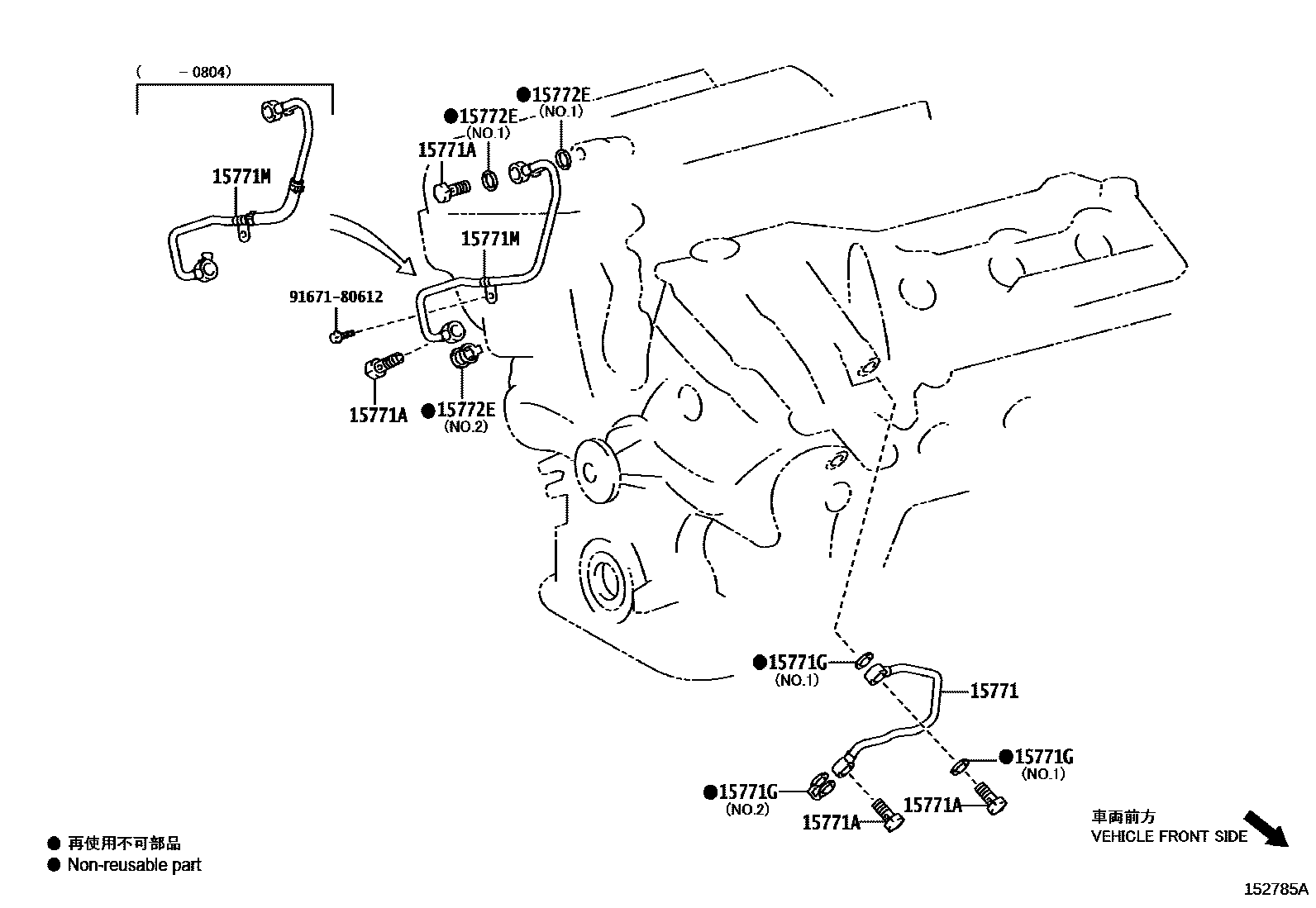

Parts diagram

15771PIPE, OIL, NO.1

main15771-31010i200708-201002

15771AUNION(FOR OIL PIPE)

main90401-16043×4i201002-201212

15771GGASKET

main90430-16012×2i200708-200803

main90430-16016i200708-201002

main90430-16017×2i201002-201212

15771MPIPE, OIL

main15707-31012i200708-200804

main15772-31030i200804-201002

15772EGASKET(FOR OIL PIPE)

main90430-16012×2i200708-200803

main90430-16016i200708-201002

main90430-16017×2i201002-201212

9167180612

main91671-80612

6 parts on this diagram · 1 diagram in section
