Toyota RAV4/VANGUARD — CRANKSHAFT & PISTON

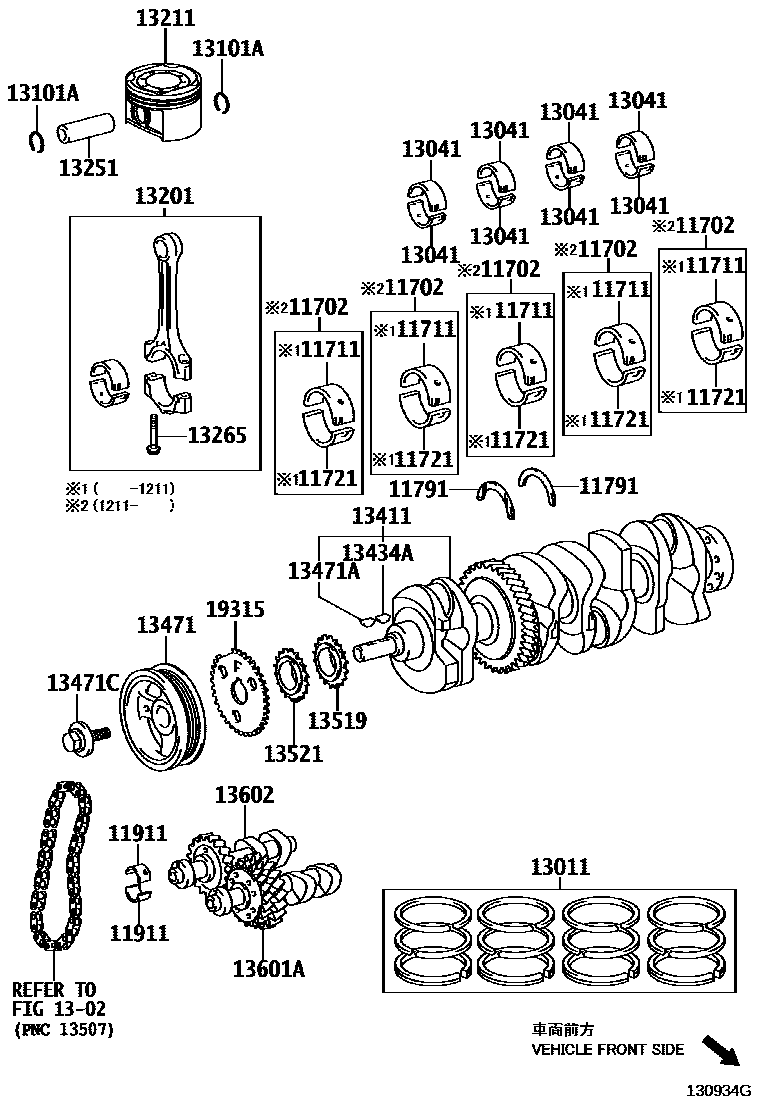

Parts diagram

11702BEARING SET, CRANKSHAFT

11711BEARING, CRANKSHAFT

11721BEARING, CRANKSHAFT, NO.2

11791WASHER, CRANKSHAFT THRUST, UPPER

11911BEARING, BALANCESHAFT, NO.1

13011RING SET, PISTON

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

13041BEARING, CONNECTING ROD

13101PISTON SUB-ASSY, W/PIN

13101ARING, HOLE SNAP(FOR PISTON PIN)

13201ROD SUB-ASSY, CONNECTING

13211PISTON

13251PIN, PISTON

13265BOLT, CONNECTING ROD

13411CRANKSHAFT

13434AKEY(FOR OIL PUMP DRIVE SPLINE)

13471PULLEY, CRANKSHAFT

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

13519GEAR, OIL PUMP DRIVE

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

13601ABALANCESHAFT SUB-ASSY, NO.1

13602BALANCESHAFT SUB-ASSY, NO.2

19315PLATE, CRANK ANGLE SENSOR, NO.1

24 parts on this diagram · 2 diagrams in section

CRANKSHAFT & PISTON for Toyota RAV4/VANGUARD

This section contains 28 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota RAV4/VANGUARD. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, BEARING, CRANKSHAFT, NO.2, WASHER, CRANKSHAFT THRUST, UPPER.
