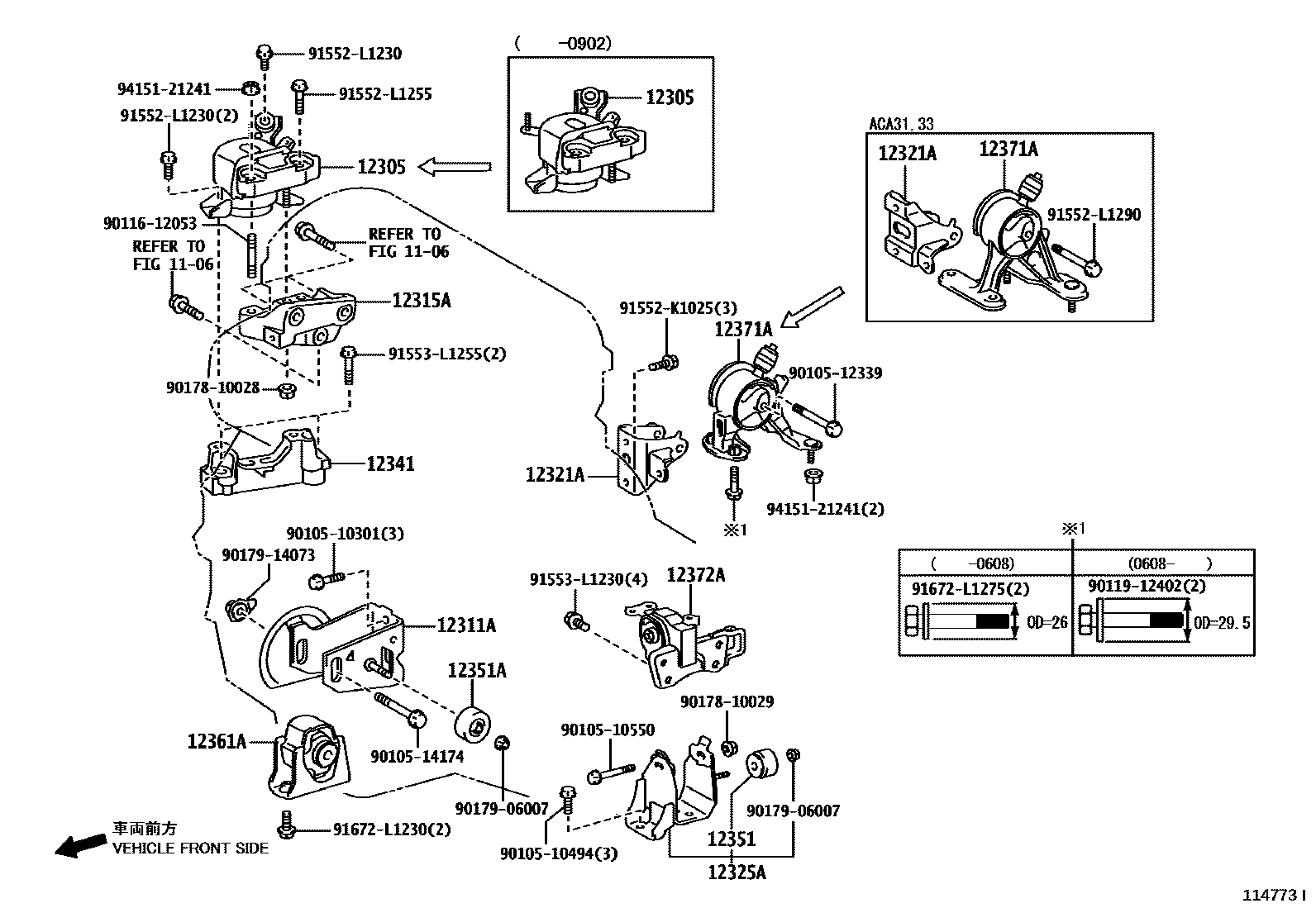

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-28230i200511-200808

main12305-28300i200902-201002

main12305-28301i201312

main12305-31020i201002-201212

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-28220i200511-201002

main12311-28310i201004

main12311-31070i200708-201002

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31110i200708-201002

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-28090i200511-201002

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-28190i200511-200808

main12321-28220i201002

main12321-31060i200708-201002

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-28130i200511-200808

main12304-31010i201002-201212

12341SPACER, ENGINE MOUNTING

main12341-26010i200511-200801

main12341-26011i200802-201002

12351DAMPER, ENGINE MOUNTING

main12351-23010i201002-201212

main12351-28090i200808

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-28110i200511-200808

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-28240i200511-200808

main12361-31160i201002-201212

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-28180i200511-200808

main12371-28220i201002

main12371-31110i200708-200903

main12371-31111i200904-201002

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-28230i200511-200709

main12372-28341i201002

main12372-28342i201505

main12372-31020i200708-200810

main12372-31021i201002-201212

9010510301

main90105-10301

9010510494

main90105-10494

9010510550

main90105-10550

9010512339

main90105-12339

9010514174

main90105-14174

9011612053

main90116-12053

9011912402

main90119-12402

9017810028

main90178-10028

9017810029

main90178-10029

9017906007

main90179-06007

9017914073

main90179-14073

91552K1025

main91552-K1025

91552L1230

main91552-L1230

91552L1255

main91552-L1255

91552L1290

main91552-L1290

91553L1230

main91553-L1230

91553L1255

main91553-L1255

91672L1230

main91672-L1230

91672L1275

main91672-L1275

9415121241

main94151-21241
