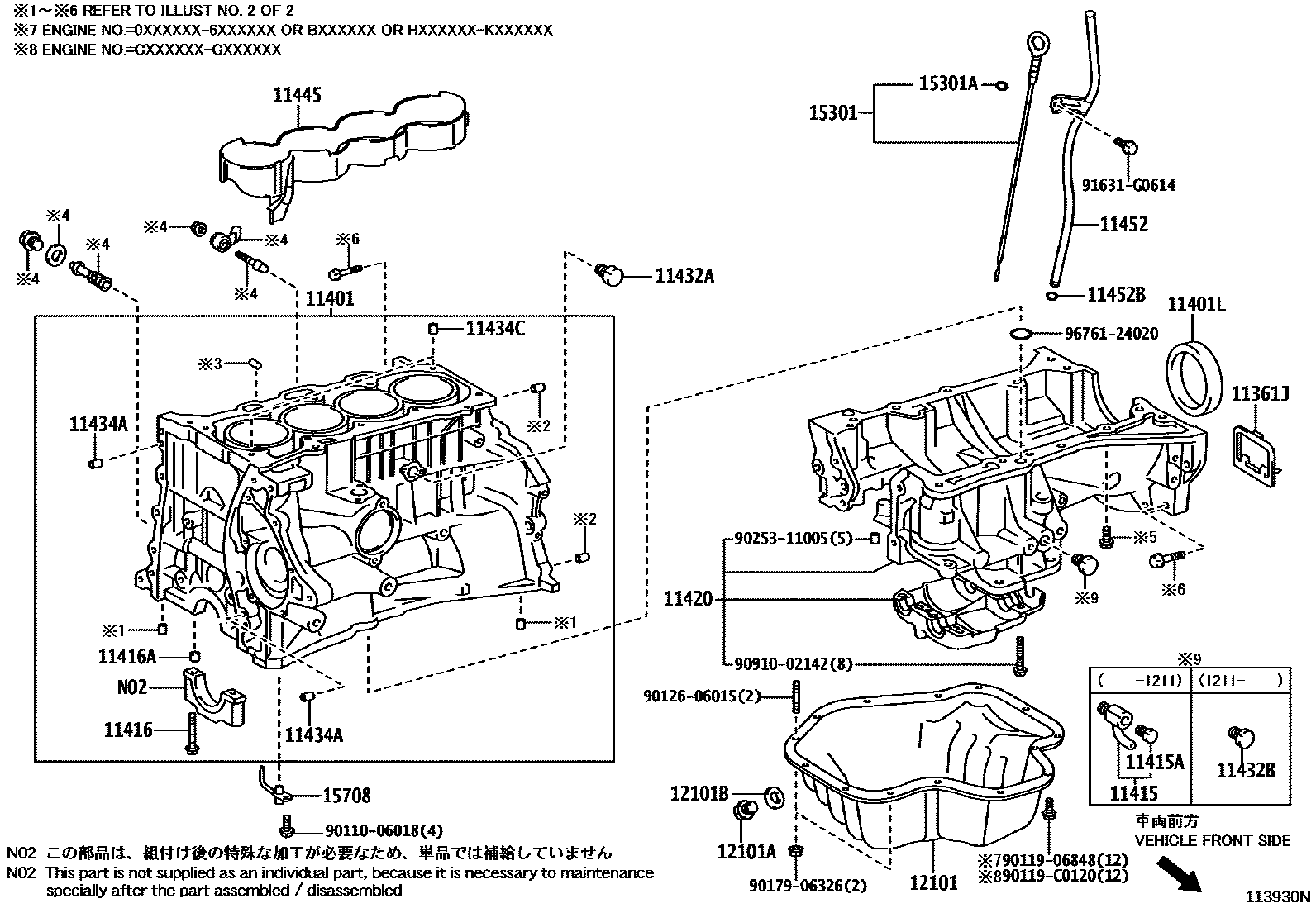

CYLINDER BLOCK

0001 1 0002 1 0003 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-28010i2AZFE..ACA33,38200511-201002

main11361-31060i2GRFE..GSA33200708-201002

11401BLOCK SUB-ASSY, CYLINDER

main11401-80718i2GRFE..GSA33200708-200804

main11401-80774i2GRFE..GSA33201002-201210

main11410-29345i2AZFE..ACA33,38201002-201212

main11410-29346i2AZFE..ACA31,36; 2AZFE..ACA33,38201212

11401LSEAL, ENGINE REAR OIL

main90311-89003i2AZFE..ACA31,36200511-200808

main90311-89007i2AZFE..ACA31,36; 2AZFE..ACA33,38201204-201305

main90311-89010i2AZFE..ACA31,36; 2AZFE..ACA33,38201305

main90311-C0001i2AZFE..ACA33,38200511-201002

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09120i2AZFE..ACA33,38201002-201211

main90910-09129×2i2GRFE..GSA33201002-201212

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i2AZFE..ACA31,36200511-200808

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02124×10i2AZFE..ACA33,38201002

main90910-02154×8i2GRFE..GSA33201002-201212

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017×10i2AZFE..ACA33,38200609-200811

main90253-A0008×10i2AZFE..ACA31,36200609-200808

11420CRANKCASE ASSY, STIFFENING

main11420-0H040i2AZFE..ACA3#200511-200605

main11420-0H050i2AZFE..ACA3#200605-201002

main11420-0H051i2AZFE..ACA31,36; 2AZFE..ACA33,38201010

main11420-28020i2AZFE..ACA31,36200808-201010

main11420-28021i2AZFE..ACA31,36; 2AZFE..ACA33,38201010

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i2AZFE..ACA33,38200511-201002

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90345-53006i2AZFE..ACA31,36; 2AZFE..ACA33,38201211

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i2GRFE..GSA33200708-201002

main90250-08120×2i2AZFE..ACA33,38201002

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×4i2GRFE..GSA33200708-201002

main90253-14003×2i2AZFE..ACA31,36200511-200808

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-28020i2AZFE..ACA33,38201002

11452GUIDE, OIL LEVEL GAGE

main11452-28040i2AZFE..ACA33,38200511-201002

main11452-31060i2GRFE..GSA33201002-201212

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GRFE..GSA33200708-201002

main96721-19010i2AZFE..ACA33,38200511-201002

12101PAN SUB-ASSY, OIL

main12101-0H060i2AZFE..ACA31,36200511-200808

main12101-28060i2AZFE..ACA31,36200511-200808

main12101-31121i2GRFE..GSA33200708-201002

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2AZFE..ACA31,36200511-200808

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2AZFE..ACA31,36200804-200808

main90430-C0005i2AZFE..ACA31,36200804-200808

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0H050i2AZFE..ACA31,36200604-200808

main15301-28030i2AZFE..ACA3#200511-200604

main15301-28031i2AZFE..ACA31,36; 2AZFE..ACA33,38201301

main15301-31090i2GRFE..GSA33200708-201002

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2AZFE..ACA31,36201301-201606

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-28010×4i2AZFE..ACA31,36200808-200809

main15708-28011×4i2AZFE..ACA33,38201002

main15708-31030×3i2GRFE..GSA33200708-201002

9011006018

main90110-06018

9011906848

main90119-06848

90119C0120

main90119-C0120

9012606015

main90126-06015

9017906326

main90179-06326

9025311005

main90253-11005

9091002142

main90910-02142

91631G0614

main91631-G0614

9676124020

main96761-24020

30 parts on this diagram · 3 diagrams in section
