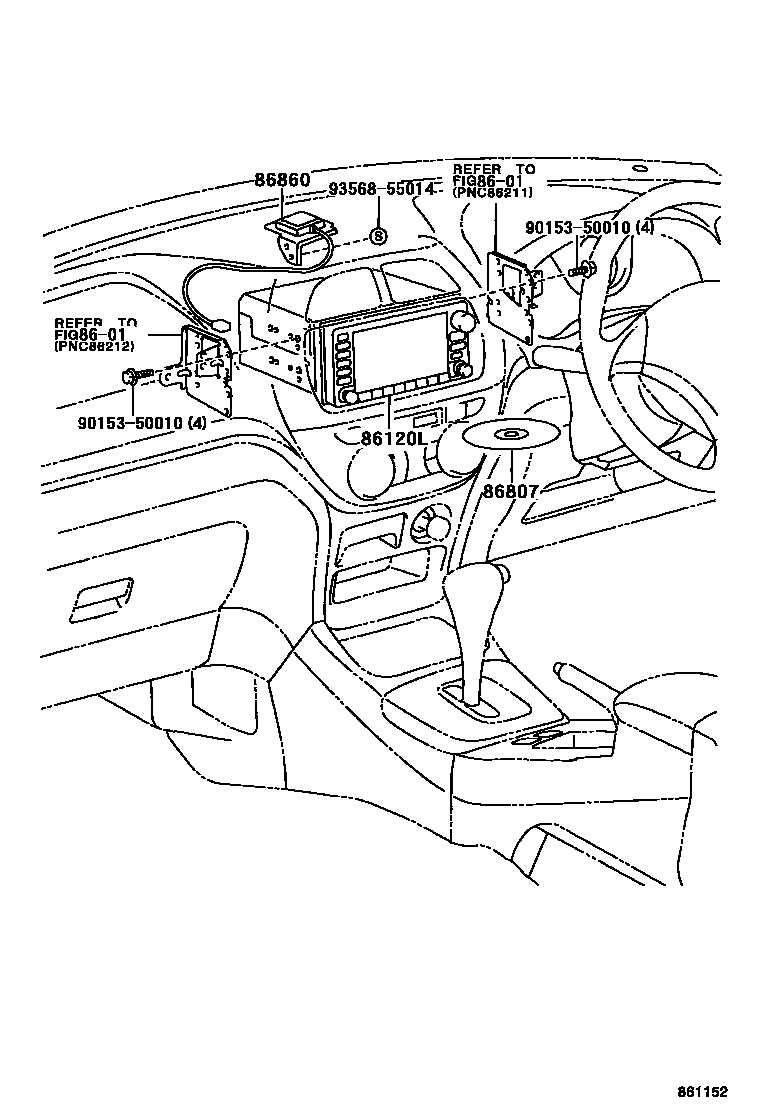

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86120-42020iACA2#,ZCA2#200005-200108

main86120-42080iACA2#,ZCA2#200108-200307

86807DISC KIT, CD-ROM

main86807-42010iACA2#,ZCA2#200005-200108

main86807-42020iACA2#,ZCA2#200108-200307

main86807-42021iACA2#,ZCA2#200309-200404

main86807-42022iACA2#,ZCA2#200404-200409

main86807-42023iACA2#,ZCA2#200410-200509

main86807-42024iACA2#,ZCA2#200510

86860ANTENNA ASSY, NAVIGATION

main86860-42010iACA2#,ZCA2#200005-200108

main86860-42011iACA2#,ZCA2#200108-200307

main86860-42020iACA2#,ZCA2#200307

9015350010

main90153-50010

9356855014

main93568-55014

6 parts on this diagram · 1 diagram in section
