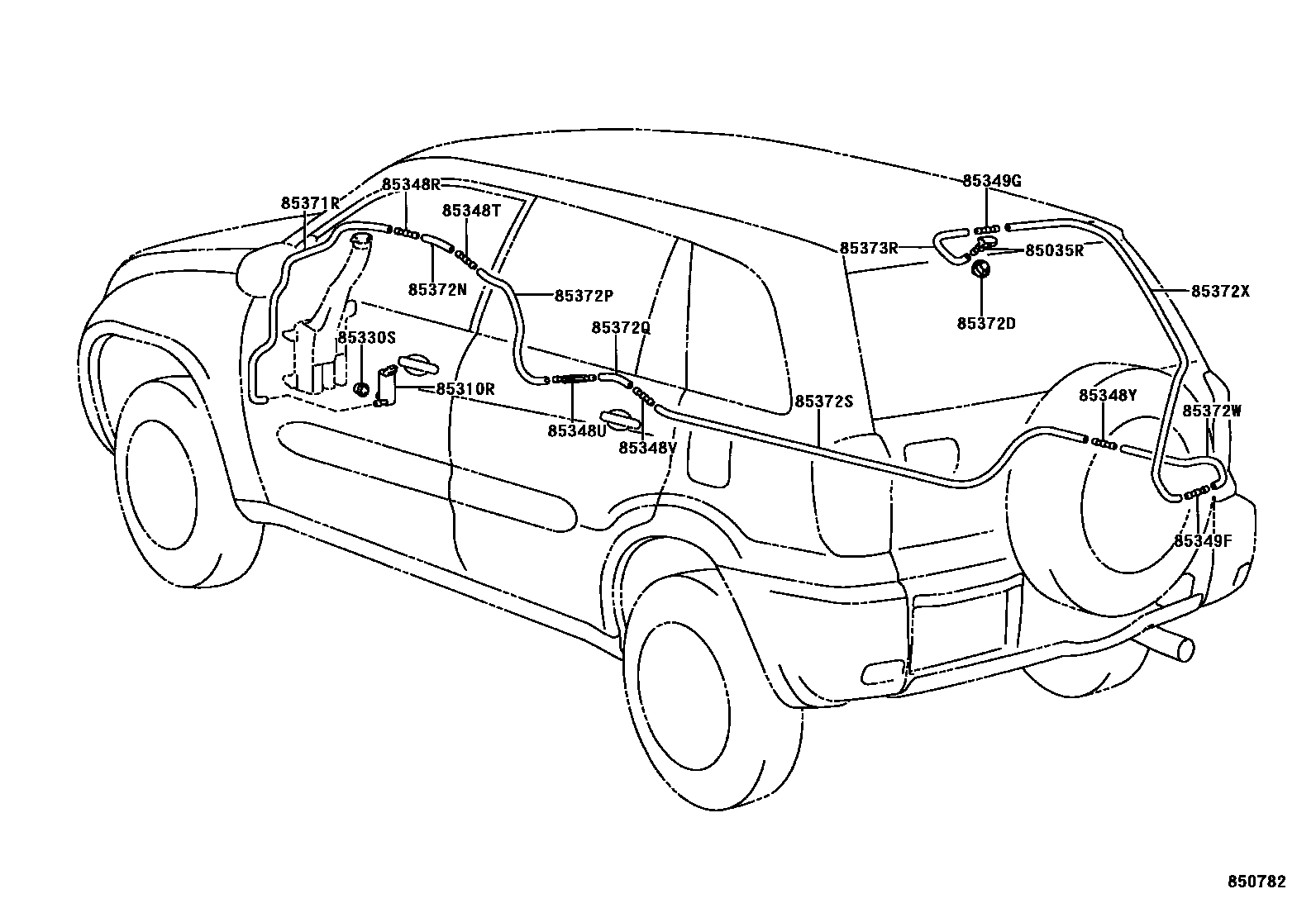

REAR WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85310RMOTOR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
19 parts on this diagram · 2 diagrams in section
