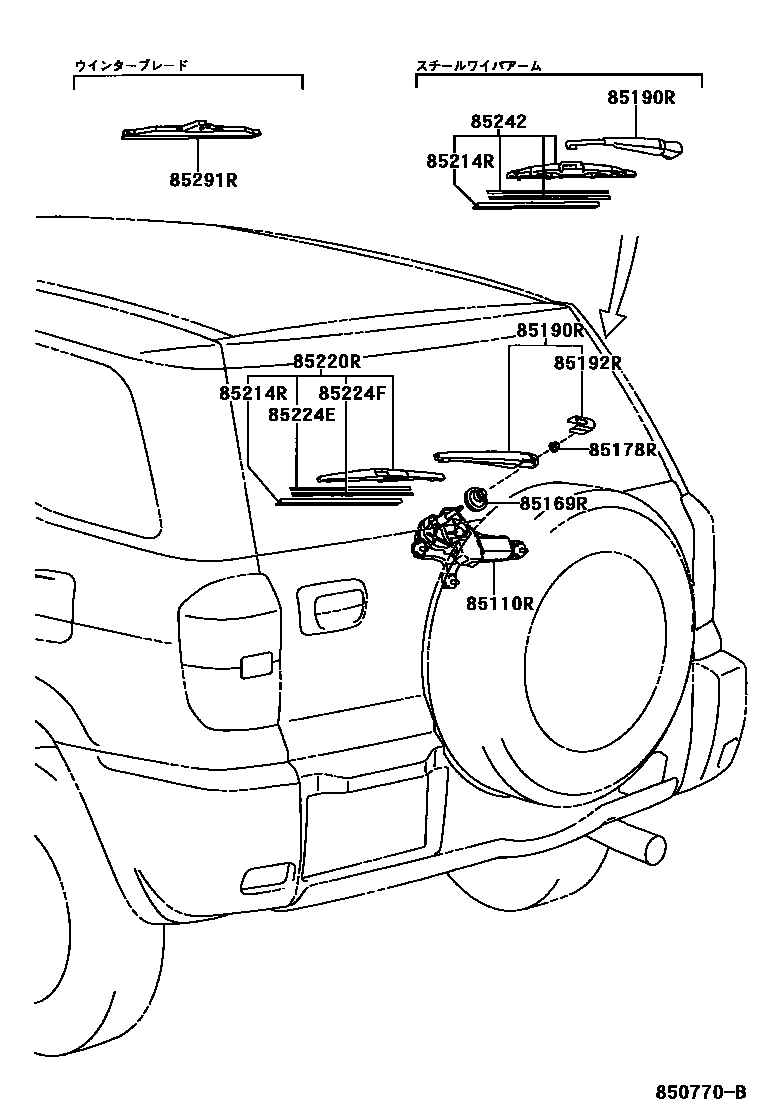

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85130-42040iACA2#,ZCA2#200005-200307

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85143-42030iACA2#,ZCA2#200005-200307

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iACA2#,ZCA2#200005-200307

85190RARM ASSY, REAR WIPER

main85241-42040iACA2#,ZCA2#200005-200307

main85241-42050iACA2#,ZCA2#200102-200307

85192RCOVER, REAR WIPER ARM

main85292-28030iACA2#,ZCA2#200005-200307

85214RRUBBER, REAR WIPER

main85214-31010iACA2#,ZCA2#200005-200307

main85214-42040iACA2#,ZCA2#200005-200307

85220RBLADE ASSY, REAR WIPER

main85242-42020iACA2#,ZCA2#200307

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-42040iACA2#,ZCA2#200005-200307

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-42040iACA2#,ZCA2#200005-200307

85242BLADE, RR WIPER

main85242-31011iACA2#,ZCA2#200307

85291RBLADE,REAR WIPER, WINTER

main85291-33020iACA2#,ZCA2#200102-200307

main85291-42020iACA2#,ZCA2#200307

11 parts on this diagram · 2 diagrams in section
