WINDSHIELD WIPER

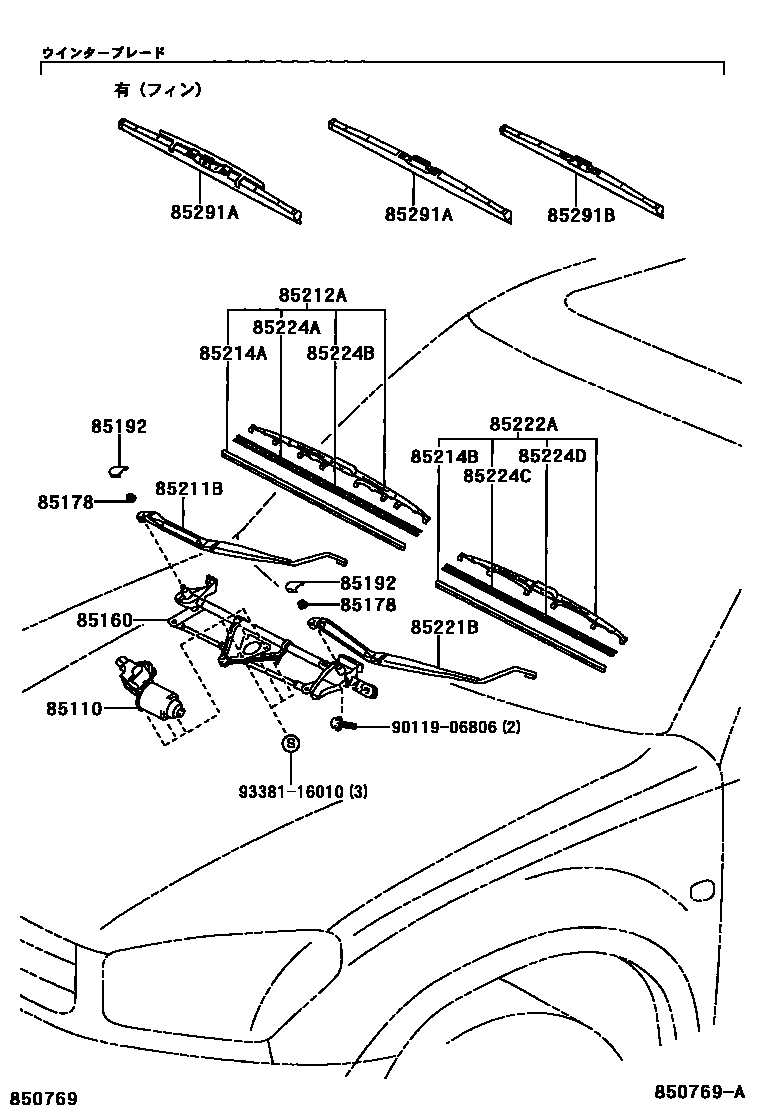

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42100i200005-200307

main85110-42110i200005-200307

85160LINK ASSY, WINDSHIELD WIPER

main85150-42070i200005-200307

main85150-42100i200307

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2i200307

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2i200307

85211BARM, FRONT WIPER, RH

main85211-42070i200005-200307

85212ABLADE, FR WIPER, RH

main85212-24100i200307

main85212-33190i200207-200307

main85212-42090i200005-200207

85214ARUBBER, WIPER, RH

main85214-30290i200005-200307

main85214-50100i200307

85214BRUBBER, WIPER, LH

main85214-17050i200005-200307

main85214-53040i200307

85221BARM, FRONT WIPER, LH

main85221-42070i200005-200307

85222ABLADE, FR WIPER, LH

main85222-17050i200005-200207

main85222-48030i200207-200307

main85222-53010i200307

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-44010i200005-200307

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-44010i200005-200307

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-35040i200005-200307

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-35040i200005-200307

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-13030i200005-200307

main85291-13040i200005-200307

main85291-24090i200307

main85291-24100i200307

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33050i200307

main85291-42010i200005-200307

9011906806

main90119-06806

9338116010

main93381-16010

18 parts on this diagram · 2 diagrams in section
