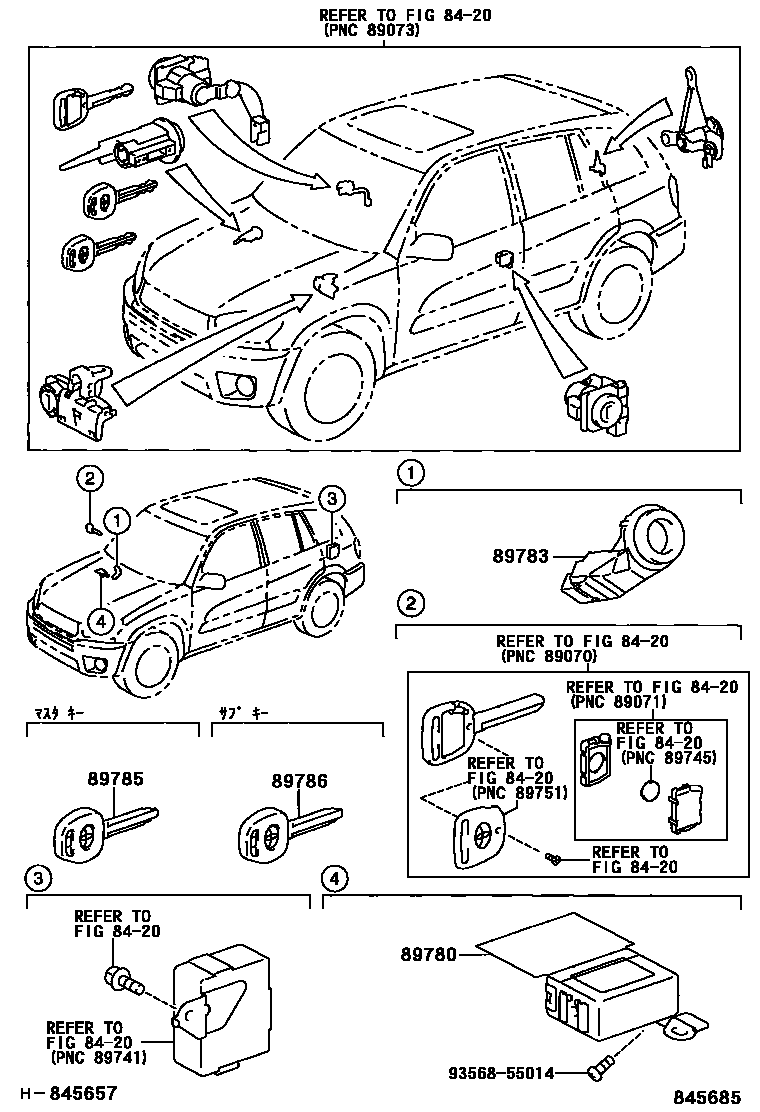

ANTI-THEFT DEVICE

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-42080iACA2#,ZCA2#200307

89783AMPLIFIER, TRANSPONDER KEY

main89783-52040iACA2#,ZCA2#200307

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-60160iACA2#,ZCA2#200307

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60170iACA2#,ZCA2#200307

9356855014

main93568-55014

6 parts on this diagram · 1 diagram in section
