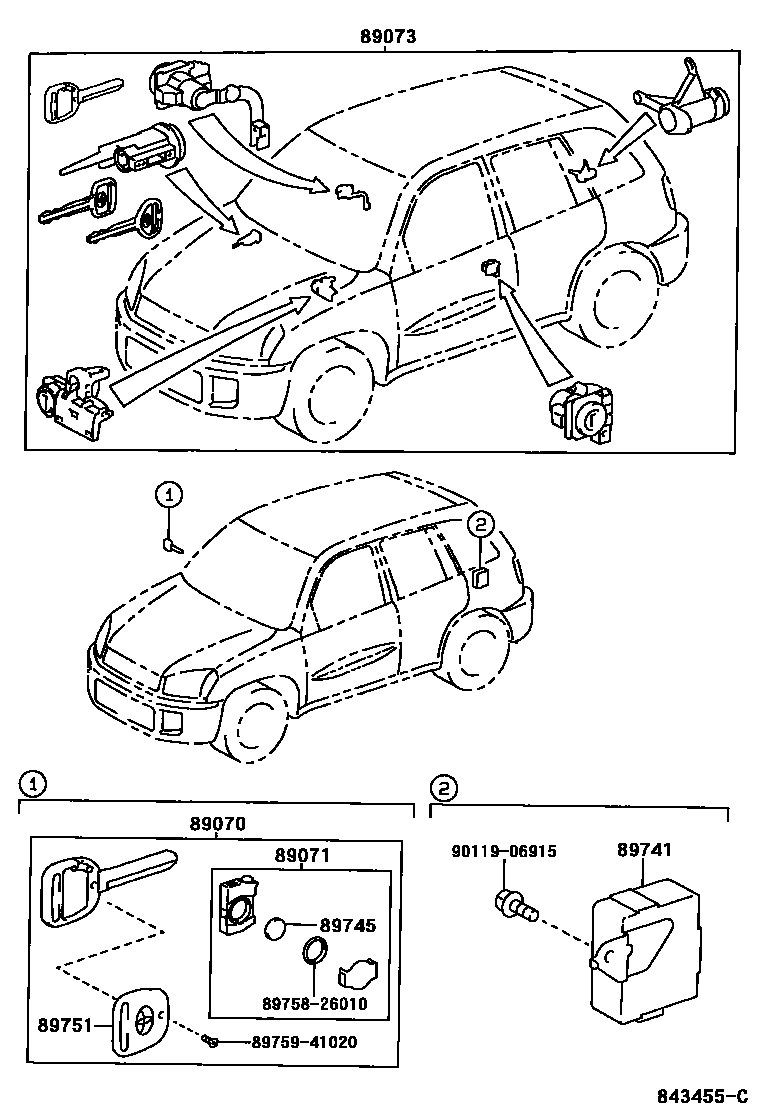

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1��(��������)

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-12270iACA2#,ZCA2#200307-200511

main89070-12340iACA2#,ZCA2#200307-200511

main89070-42180iACA2#,ZCA2#200005-200102

main89070-42181iACA2#,ZCA2#200102-200307

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-12021iACA2#,ZCA2#200102-200307

main89071-12031iACA2#,ZCA2#200307-200511

main89071-12060iACA2#,ZCA2#200307-200511

main89071-28050iACA2#,ZCA2#200005-200102

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-42320iACA2#,ZCA2#200307-200511

main69005-42330iACA2#,ZCA2#200307-200511

main89073-42090iACA2#,ZCA2#200005-200307

89741RECEIVER, DOOR CONTROL

main89741-42130iACA2#,ZCA2#200005-200102

main89741-42131iACA2#,ZCA2#200102-200307

89745BATTERY, TRANSMITTER

main89745-26010iACA2#,ZCA2#200005-200307

89751COVER, TRANSMITTER HOUSING

main89751-44010iACA2#,ZCA2#200005-200307

8975826010PACKING, DOOR CONTROL TRANSMITTER

main89758-26010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9011906915

main90119-06915

9 parts on this diagram · 3 diagrams in section
