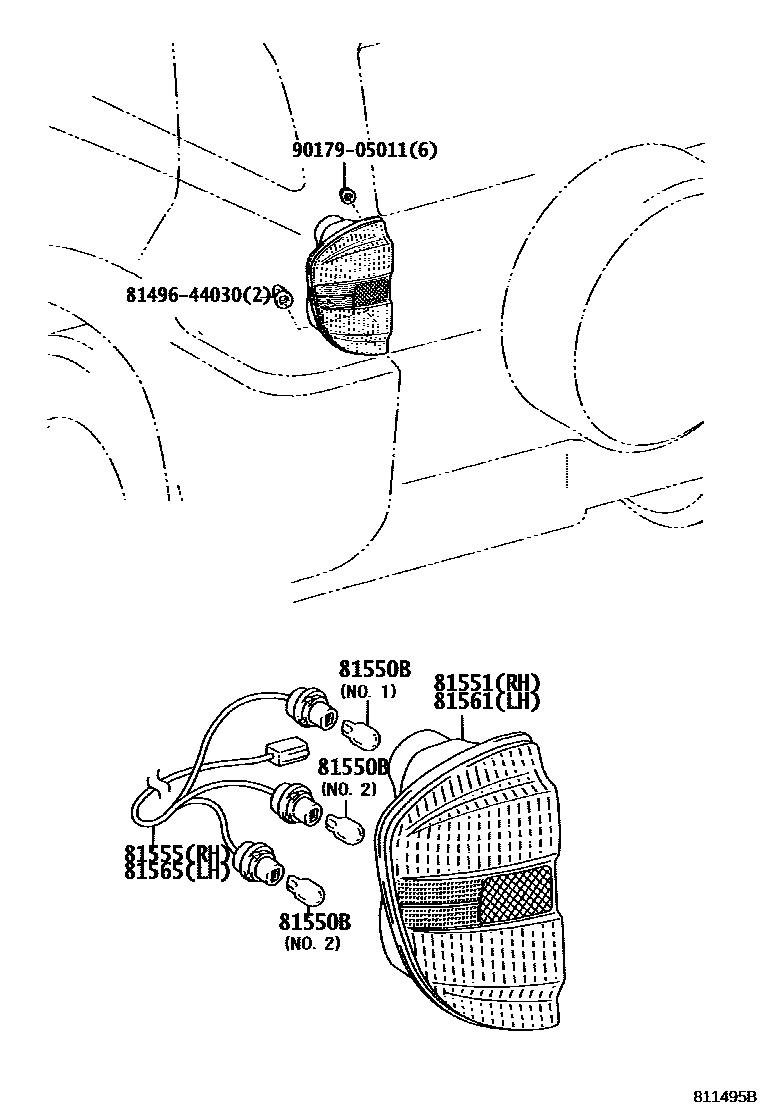

REAR COMBINATION LAMP

0001 1 0002 1

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11042×4iACA2#,ZCA2#200005-200307

main90981-11043×2iACA2#,ZCA2#200005-200307

main90981-11047×4iACA2#,ZCA2#200005-200307

main90981-11048×2iACA2#,ZCA2#200005-200307

main90981-11059×2iACA2#,ZCA2#200307

main90981-13043×2iACA2#,ZCA2#200307

81551LENS, REAR COMBINATION LAMP, RH

main81551-42060iACA2#,ZCA2#200005-200307

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-42040iACA2#,ZCA2#200307

main81555-42060iACA2#,ZCA2#200005-200307

81561LENS, REAR COMBINATION LAMP, LH

main81561-42060iACA2#,ZCA2#200005-200307

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-42040iACA2#,ZCA2#200307

main81555-42060iACA2#,ZCA2#200005-200307

8149644030GUIDE, REAR COMBINATION LAMP

main81496-44030

9017905011

main90179-05011

7 parts on this diagram · 2 diagrams in section
