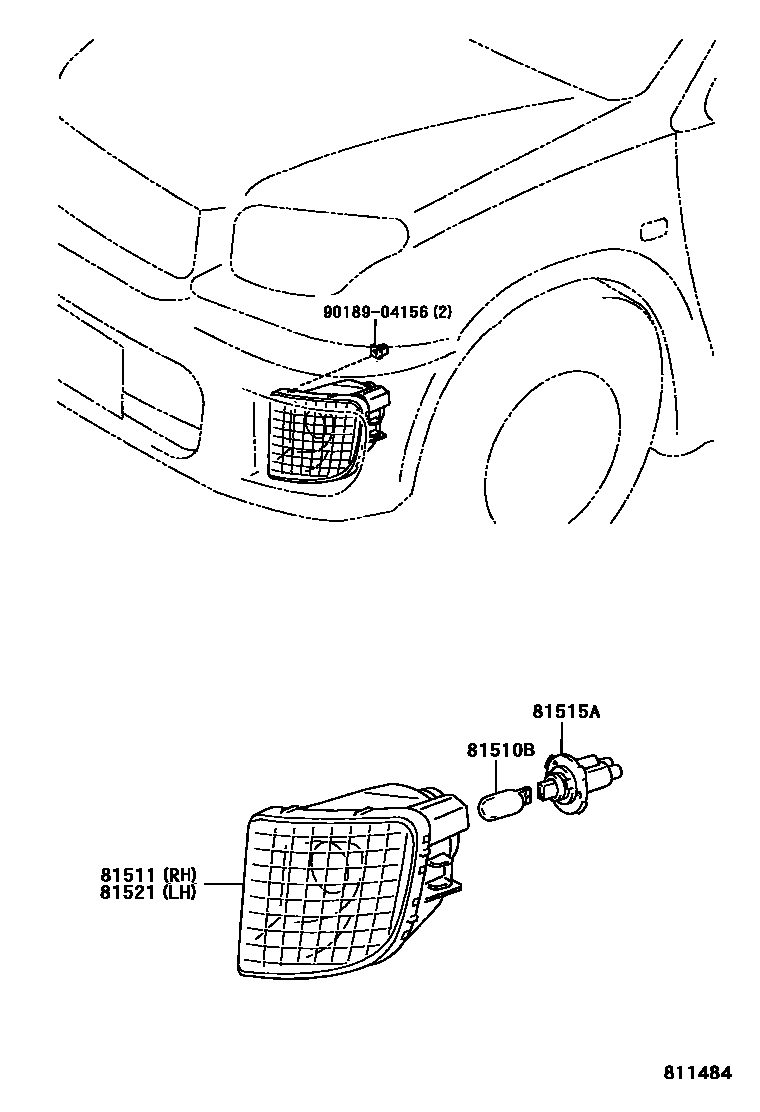

FRONT TURN SIGNAL LAMP

0001 1��(���� ����) 0002 1��(���� ����)

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-11042×2iACA2#,ZCA2#200005-200104

main90981-11047×2iACA2#,ZCA2#200104-200207

main90981-15011×2iACA2#,ZCA2#..X200307

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-42050iACA2#,ZCA2#..X200005-200307

main81511-42060iACA2#,ZCA2#200307

main81511-42070iACA21..X200108-200206

RUGGED SPECIAL *(R),*(S)

81515APLUG ASSY, FRONT TURN SIGNAL LAMP

main81515-42050×2iACA2#,ZCA2#..X200307

main90075-99080×2iACA2#,ZCA2#200307

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-42050iACA2#,ZCA2#..X200005-200307

main81521-42060iACA2#,ZCA2#200307

main81521-42070iACA21..X200108-200206

RUGGED SPECIAL *(R),*(S)

9018904156

main90189-04156

5 parts on this diagram · 2 diagrams in section
