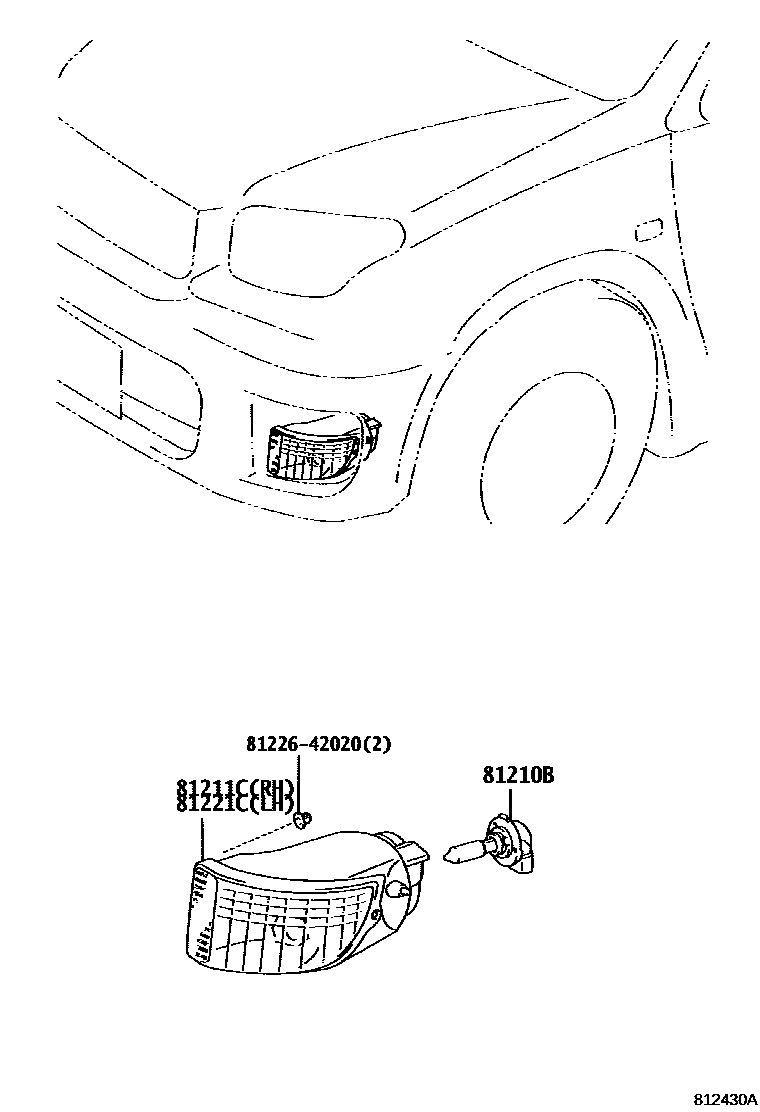

FOG LAMP

0001 1 0002 1

81210BBULB, FOG LAMP

main90080-81040×2iACA2#,ZCA2#200005-200307

main90981-13047×2iACA2#,ZCA2#200307

81211CLAMP UNIT, FOG LAMP, RH

main81211-42020iACA2#,ZCA2#200005-200307

main81211-42040iACA21..X200108-200207

RUGGED SPECIAL *(R),*(S)

main81211-42050iACA2#,ZCA2#200307

81221CLAMP UNIT, FOG LAMP, LH

main81221-42020iACA2#,ZCA2#200005-200307

main81221-42040iACA21..X200108-200207

RUGGED SPECIAL *(R),*(S)

main81221-42050iACA2#,ZCA2#200307

8122642020SPRING, FOG LAMP ADJUSTING

main81226-42020

4 parts on this diagram · 2 diagrams in section
