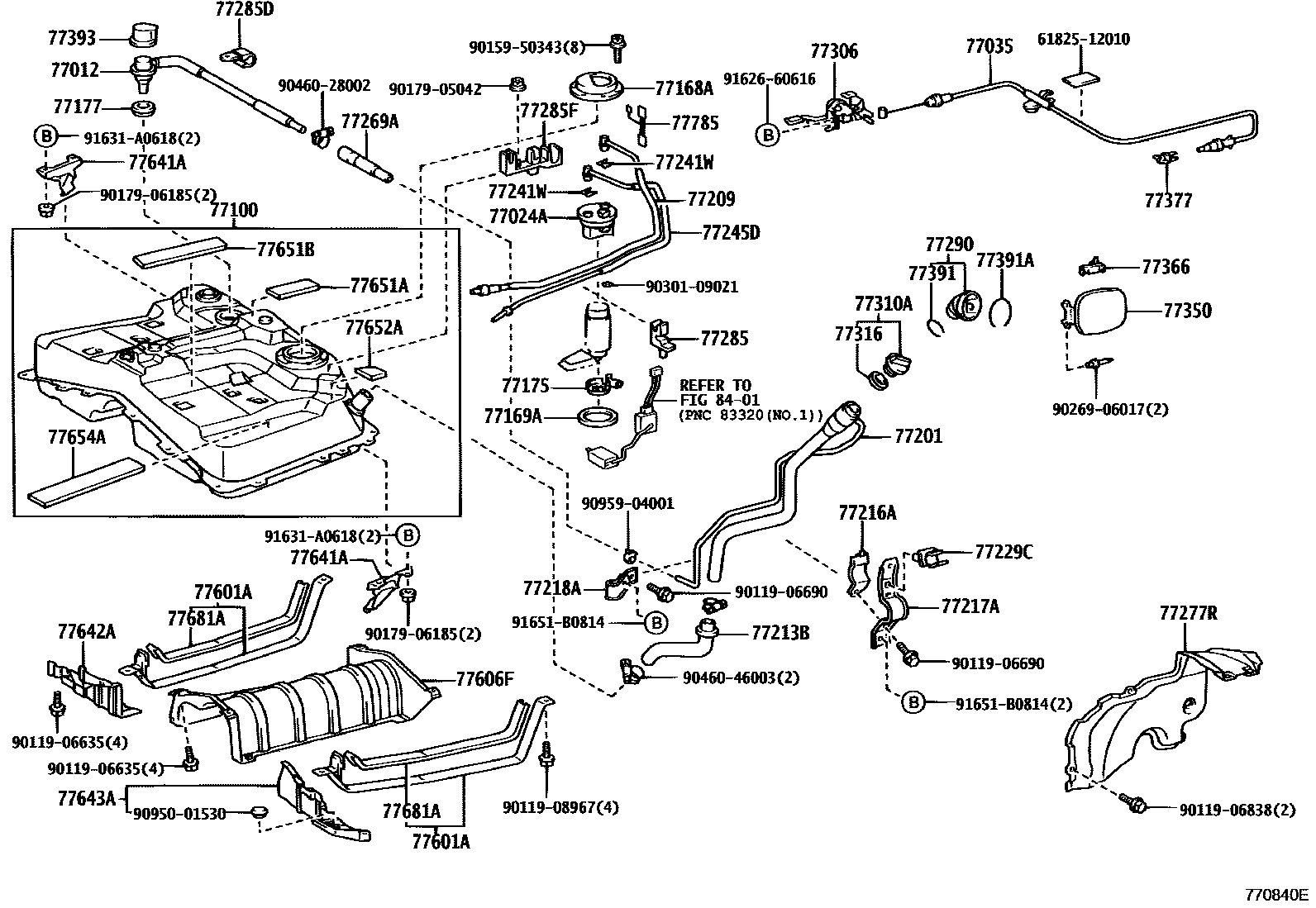

FUEL TANK & TUBE
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77177GASKET, CHECK VALVE
77209CONNECTOR SUB-ASSY, FUEL TUBE
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77245DTUBE, FUEL TANK RETURN VENT
77269AHOSE, FUEL TANK BREATHER
77277RPROTECTOR, FUEL TANK FILLER PIPE
77285BRACKET, FUEL TUBE
77285DCLAMP, FUEL TUBE, NO.1
77285FCLAMP, FUEL TUBE, NO.1
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77393PROTECTOR, CHECK VALVE
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606FCASE SUB-ASSY, FUEL TANK COVER VENT
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77643APROTECTOR, FUEL TANK, NO.3
77651ACUSHION, FUEL TANK, NO.1
77651BCUSHION, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
77654ACUSHION, FUEL TANK, NO.4
77681ASEAT, FUEL TANK BAND
77785HARNESS, FUEL PUMP
8401
6182512010PLATE, QUARTER INNER PANEL, LOWER FRONT RH
main61825-12010
9011906635
main90119-06635
9011906690
main90119-06690
9011906838
main90119-06838
9011908967
main90119-08967
9015950343
main90159-50343
9017905042
main90179-05042
9017906185
main90179-06185
9026906017
main90269-06017
9030109021
main90301-09021
9046028002
main90460-28002
9046046003
main90460-46003
9095001530
main90950-01530
9095904001
main90959-04001
9162660616
main91626-60616
91631A0618
main91631-A0618
91651B0814
main91651-B0814
61 parts on this diagram · 4 diagrams in section
