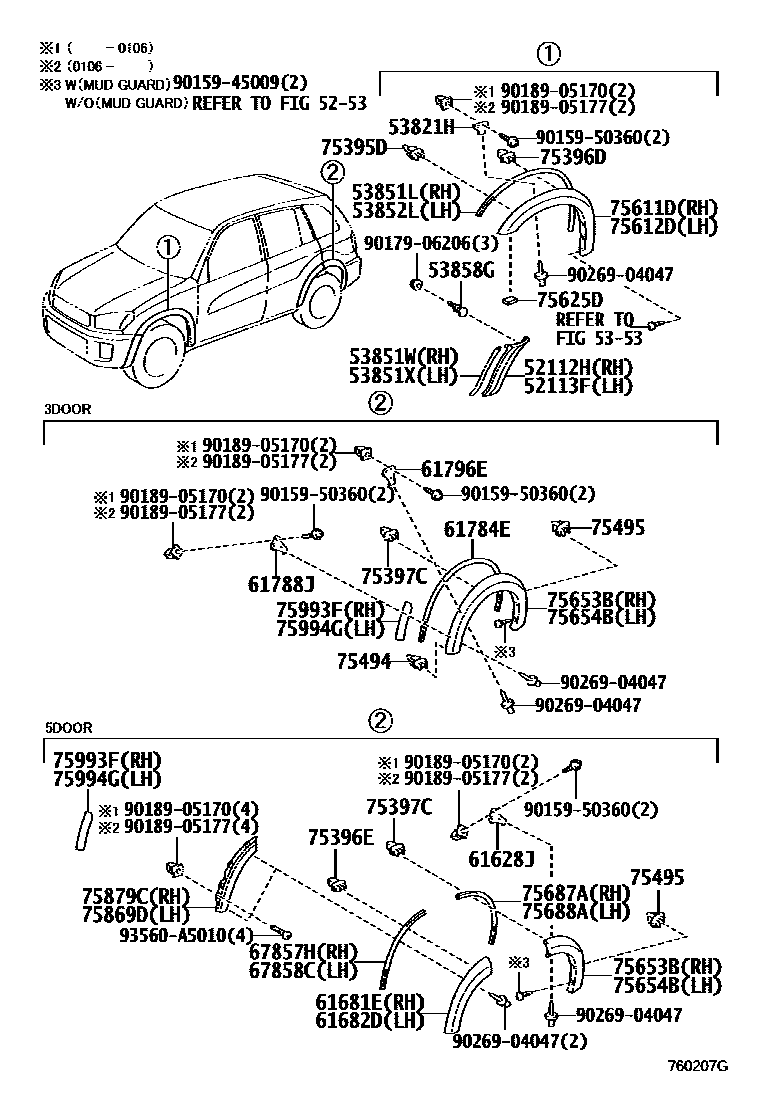

SPOILER & SIDE MUDGUARD
52112HEXTENSION, FRONT BUMPER, RH
WHITE PEARL CS.,064
*104,SILVER ME.,056 ,1D4; SILVER ME.,1D4
*104,GRAY MM,202 ,8M6; GRAY MM,202 ,3Q3 ,6R4 ,6T6 ,8M6
*104,BLACK,202
*104,DK.GREEN M.M.,6S3
*104,DARK GREEN MC.,6R4
LT.GREEN ME.,6T6
*104,BLUE MC.,8M6
52113FEXTENSION, FRONT BUMPER, LH
WHITE PEARL CS.,064
*104,SILVER ME.,056 ,1D4; SILVER ME.,1D4
*104,GRAY MM,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
*104,BLACK,202
*104,DK.GREEN M.M.,6S3
*104,DARK GREEN MC.,6R4
LT.GREEN ME.,6T6
*104,BLUE MC.,8M6
5253REAR BUMPER & BUMPER STAY
5353HOOD & FRONT FENDER
53821HBRACKET, FRONT FENDER, REAR
53851LPAD, FRONT WHEEL OPENING EXTENSION, RH
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1; *104,GRAY,1D4 ,202 ,586 ,6S3 ,8M6
BLACK,202 ,3Q3 ,6R4 ,8M6; BLACK,202 ,8M6
WHITE,064
53851WPAD, FRONT WHEEL OPENING EXTENSION, NO.1
GRAY,064 ,1D4 ,202 ,8M6; GRAY,1D4 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6
BLACK,202 ,3Q3 ,6R4 ,8M6; BLACK,202 ,8M6
*104,WHITE,064
53851XPAD, FRONT WHEEL OPENING EXTENSION, NO.1
*104,GRAY,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1; *104,GRAY,1D4 ,202 ,586 ,6S3 ,8M6
BLACK,202 ,3Q3 ,6R4 ,8M6; BLACK,202 ,8M6
WHITE,064
53852LPAD, FRONT WHEEL OPENING EXTENSION, LH
GRAY,064 ,1D4 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6; GRAY,064 ,1D4 ,202 ,8M6
BLACK,202 ,3Q3 ,6R4 ,8M6; BLACK,202 ,8M6
WHITE,064
53858GBOLT, WHEEL OPENING SET
61628JEXTENSION, QUARTER OUTER PANEL, FRONT
61681EEXTENSION, REAR WHEEL OPENING, NO.1 RH
WHITE PEARL CS.,064
SILVER ME.,1D4 ,4R4
*104,GRAY MM,202 ,586 ,6S3 ,8M6
*104,BLACK,202
*104,DK.GREEN M.M.,6S3
*104,DARK GREEN MC.,6R4
LT.GREEN ME.,6T6
*104,BLUE MC.,8M6
61682DEXTENSION, REAR WHEEL OPENING, NO.1 LH
WHITE PEARL CS.,064
SILVER ME.,1D4 ,4R4
GRAY MM,202 ,3Q3 ,6R4 ,6T6 ,8M6
*104,BLACK,202
*104,DK.GREEN M.M.,6S3
*104,DARK GREEN MC.,6R4
LT.GREEN ME.,6T6
*104,BLUE MC.,8M6
61784EPAD, REAR WHEEL OPENING EXTENSION, NO.2
61788JBRACKET, REAR WHEEL OPENING, NO.5
61796EBRACKET, REAR WHEEL OPENING, NO.7
67857HPROTECTOR, REAR DOOR PANEL, RH
*104,GRAY,1D4 ,202 ,586 ,6S3 ,8M6
BLACK,202 ,3Q3 ,6R4 ,8M6
*104,WHITE,064
67858CPROTECTOR, REAR DOOR PANEL, LH
*104,GRAY,1D4 ,202 ,586 ,6S3 ,8M6
BLACK,202 ,3Q3 ,6R4 ,8M6
WHITE,064
75395DCLIP, OUTSIDE MOULDING, NO.1
75396DCLIP, OUTSIDE MOULDING, NO.2
75396ECLIP, OUTSIDE MOULDING, NO.2
75397CCLIP, OUTSIDE MOULDING, NO.3
75494CLIP, OUTSIDE MOULDING, NO.3
75495CLIP, OUTSIDE MOULDING, NO.4
75611DMOULDING, FRONT FENDER, OUTSIDE FRONT RH
WHITE PEARL CS.,064
*104,SILVER ME.,056 ,1D4; SILVER ME.,1D4
*104,GRAY MM,202 ,3Q3 ,6R4 ,6T6 ,8M6; *104,GRAY MM,202 ,8M6
*104,BLACK,202
*104,DK.GREEN M.M.,6S3
*104,DARK GREEN MC.,6R4
*104,LT.GREEN ME.,6T6
*104,BLUE MC.,8M6
75612DMOULDING, FRONT FENDER, OUTSIDE FRONT LH
WHITE PEARL CS.,064
*104,SILVER ME.,056 ,1D4; SILVER ME.,1D4
*104,GRAY MM,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
*104,BLACK,202
*104,DK.GREEN M.M.,6S3
*104,DARK GREEN MC.,6R4
*104,LT.GREEN ME.,6T6
*104,BLUE MC.,8M6
75625DPAD, FRONT FENDER OUTSIDE MOULDING, UPPRER
75653BMOULDING, QUARTER OUTSIDE, RH NO.3
WHITE PEARL CS.,064
SILVER ME.,1D4
*104,GRAY MM,202 ,8M6
*104,BLACK,202
*104,DK.GREEN M.M.,6S3
*104,BLUE MC.,8M6
WHITE PEARL CS.,064
SILVER ME.,1D4
*104,GRAY MM,202 ,586 ,6S3 ,8M6
*104,BLACK,202
*104,DK.GREEN M.M.,6S3
*104,DARK GREEN MC.,6R4
*104,LT.GREEN ME.,6T6
*104,BLUE MC.,8M6
75654BMOULDING, QUARTER, OUTSIDE NO.4
WHITE PEARL CS.,064
SILVER ME.,056 ,1D4
*104,GRAY MM,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1
*104,BLACK,202
*104,DK.GREEN M.M.,6S3
*104,BLUE MC.,8M6
WHITE PEARL CS.,064
SILVER ME.,1D4
*104,GRAY MM,202 ,586 ,6S3 ,8M6
*104,BLACK,202
*104,DK.GREEN M.M.,6S3
*104,DARK GREEN MC.,6R4
*104,LT.GREEN ME.,6T6
*104,BLUE MC.,8M6
75687APROTECTOR, QUARTER MOULDING, LOWER REAR RH
*104,GRAY,1D4 ,202 ,586 ,6S3 ,8M6
BLACK,202 ,3Q3 ,6R4 ,8M6
GRAY,1D4 ,6T6
BLACK,202 ,6R4 ,8M6
WHITE,064
75688APROTECTOR, QUARTER MOULDING, LOWER REAR LH
*104,BLACK,202 ,6S3 ,8M6
75869DRETAINER, QUARTER OPENING, LH
75879CRETAINER, QUARTER OPENING, RH
75993FSTRIPE, QUARTER, FRONT RH
75994GSTRIPE, QUARTER, FRONT LH
9015945009
main90159-45009
9015950360
main90159-50360
9017906206
main90179-06206
9018905170
main90189-05170
9018905177
main90189-05177
9026904047
main90269-04047
93560A5010
main93560-A5010
42 parts on this diagram · 4 diagrams in section
