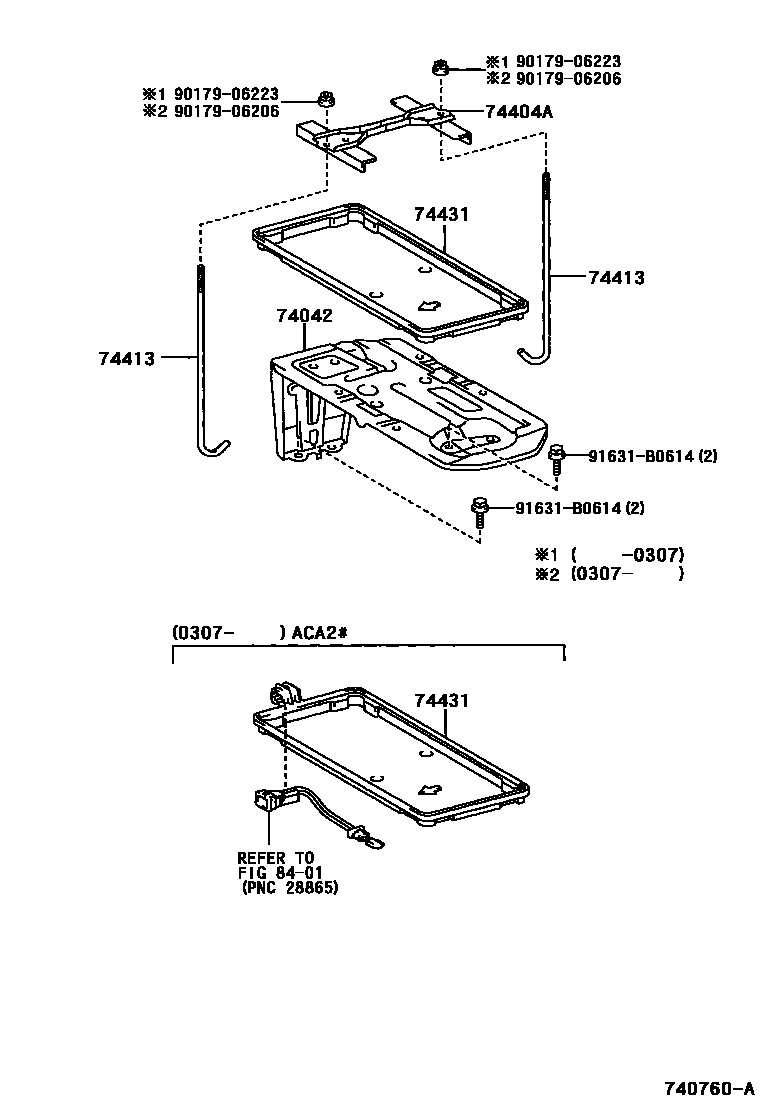

BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74402-42010iACA2#,ZCA2#200005-200307

74404ACLAMP SUB-ASSY, BATTERY

main74404-42010iACA2#,ZCA2#200005-200307

74413BOLT, BATTERY CLAMP

main74451-10060iACA2#,ZCA2#200005-200307

74431TRAY, BATTERY

main74431-42070iACA2#,ZCA2#200005-200307

sub74431-20120

main74431-42080iACA2#200307

8401

9017906206

main90179-06206

9017906223

main90179-06223

91631B0614

main91631-B0614

8 parts on this diagram · 1 diagram in section
