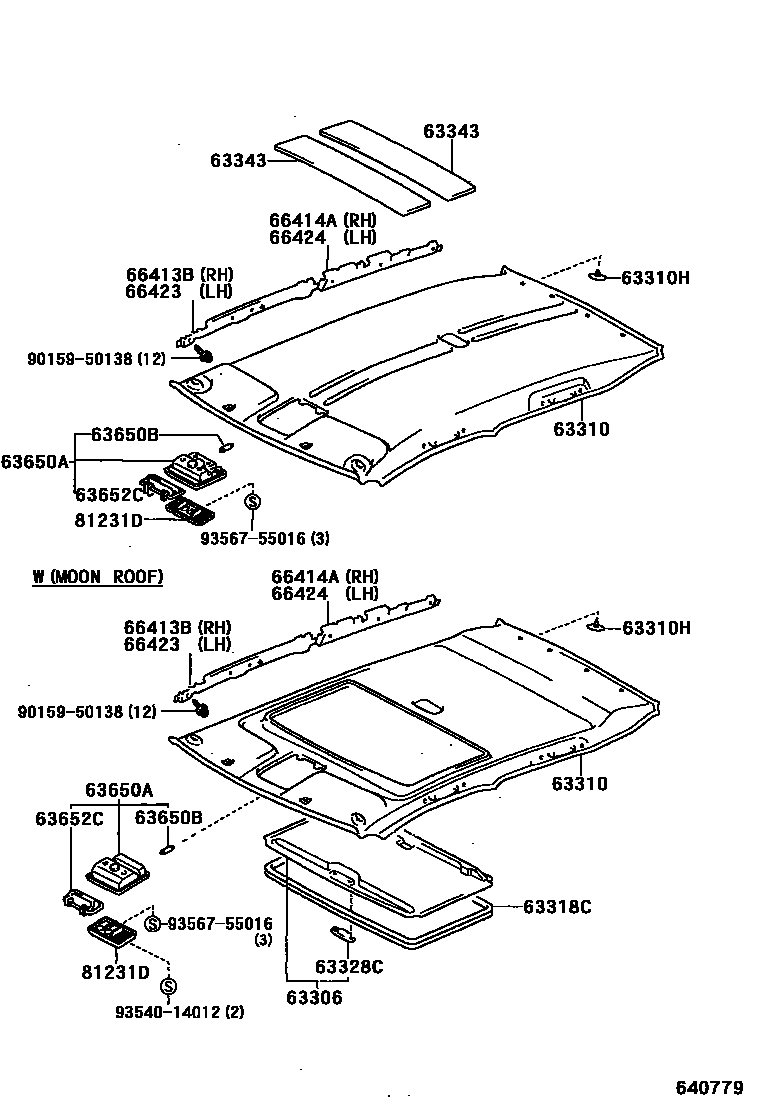

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

63306TRIM SUB-ASSY, SUNSHADE

main63306-42030-B0iACA2#,ZCA2#200307-200511

GRAY,TRIM1#

main63306-44020-A2iACA21,ZCA26..WIDE,X200005-200307

IVORY,TRIM4#

main63306-44020-B4iACA20,ZCA25..WIDE,X; ACA21,ZCA26;ACA20,ZCA25..AERO200005-200307

LT. BLUISH GRAY,TRIM1#; LT. BLUISH GRAY,TRIM14,15

63310HEADLINING ASSY, ROOF

main63310-42070-A0iACA21,ZCA26..WIDE,X200005-200104

IVORY,TRIM4#

main63310-42070-B0iACA21,ZCA26200005-200104

LT. BLUISH GRAY,TRIM1#

main63310-42090-A0iACA21,ZCA26..WIDE,X200005-200104

main63310-42090-B0iACA21,ZCA26200005-200104

main63310-42110-B0iACA20,ZCA25200005-200104

LT. BLUISH GRAY,TRIM1#

main63310-42120-B0iACA20,ZCA25200005-200104

main63310-42130-A0iACA21,ZCA26..WIDE,X200104-200307

IVORY,TRIM4#

main63310-42130-B0iACA21,ZCA26200104-200307

LT. BLUISH GRAY,TRIM1#

main63310-42150-A0iACA21,ZCA26..WIDE,X200104-200307

main63310-42150-B0iACA21,ZCA26200104-200307

main63310-42170-B0iACA20,ZCA25200104-200307

LT. BLUISH GRAY,TRIM1#

main63310-42180-B0iACA20,ZCA25200104-200307

main63310-42200-B0iACA21,ZCA26200307-200308

GRAY,TRIM1#

main63310-42201-B0iACA21,ZCA26200308-200511

GRAY,TRIM1#

main63310-42220-B0iACA21,ZCA26200307-200308

main63310-42221-B0iACA21,ZCA26200308-200511

main63310-42240-B0iACA20,ZCA25200307-200511

GRAY,TRIM1#

main63310-42250-B0iACA20,ZCA25200307-200511

63310HCLIP(FOR ROOF HEADLINING)

main90467-06070-A1×2iACA21,ZCA26..WIDE,X200005-200307

IVORY,TRIM4#

main90467-06070-B1×4iACA20,ZCA25..AERO; ACA20,ZCA25..WIDE,X; ACA21,ZCA26200005-200307

LT.BLUISH GRAY,TRIM1#; LT.BLUISH GRAY,TRIM14,15

main90467-06070-B9×2iACA20,ZCA25; ACA21,ZCA26200307-200511

NEW GRAY,TRIM1#

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-42040-A0iACA21,ZCA26..WIDE,X200005-200307

main63318-42040-B0iACA20,ZCA25..WIDE,X; ACA21,ZCA26;ACA20,ZCA25..AERO200005-200307

main63318-42050-B0iACA2#,ZCA2#200307-200511

63328CKNOB, SUNSHADE TRIM

main63328-12030-A1iACA21,ZCA26..WIDE,X200005-200307

IVORY,TRIM4#

main63328-12030-B5iACA20,ZCA25..WIDE,X; ACA21,ZCA26;ACA20,ZCA25..AERO200005-200307

LT.BLUISH GRAY,TRIM1#; LT.BLUISH GRAY,TRIM14,15

main63328-12030-P1iACA2#,ZCA2#200307-200511

NEW GRAY,TRIM1#

63343PAD, ROOF SILENCER, NO.3

main63341-42010×2iACA21,ZCA26200307

main63343-32070×4iACA20,ZCA25; ACA21,ZCA26200308

63650ABOX ASSY, ROOF CONSOLE

main63650-0W011-A1iACA21,ZCA26..WIDE,X200005-200307

IVORY,TRIM4#

main63650-0W011-B2iACA20,ZCA25..WIDE,X; ACA21,ZCA26;ACA20,ZCA25..AERO200005-200307

LT. BLUISH GRAY,TRIM1#; LT. BLUISH GRAY,TRIM14,15

main63650-0W011-B5iACA2#,ZCA2#200307-200511

NEW GRAY,TRIM1#

main63660-0W011-A1iACA21,ZCA26..WIDE,X200005-200307

main63660-0W011-B3iACA20,ZCA25..WIDE,X; ACA21,ZCA26;ACA20,ZCA25..AERO200005-200307

main63660-0W011-B5iACA2#,ZCA2#200307-200511

63650BBULB, ROOF CONSOLE BOX

main90084-98049iACA2#,ZCA2#200005-200307

63652CCOVER, ROOF CONSOLE BOX

main63652-AA021-A1iACA21,ZCA26..WIDE,X200005-200307

IVORY,TRIM4#

main63652-AA021-B2iACA20,ZCA25..WIDE,X; ACA21,ZCA26;ACA20,ZCA25..AERO200005-200307

LT. BLUISH GRAY,TRIM1#; LT. BLUISH GRAY,TRIM14,15

main63652-AA021-B6iACA2#,ZCA2#200307-200511

NEW GRAY,TRIM1#

66413BSPACER, SIDE RAIL, FRONT RH

main66413-42010iACA21,ZCA26200005-200307

main66413-42020iACA21,ZCA26200005-200307

main66413-42030iACA20,ZCA25200005-200307

main66413-42040iACA20,ZCA25200005-200307

main66413-42080iACA21,ZCA26200307

main66413-42090iACA21,ZCA26200307

main66413-42100iACA20,ZCA25200307

main66413-42110iACA20,ZCA25200307

66414ASPACER, SIDE RAIL, REAR RH

main66414-42010iACA21,ZCA26200005-200307

main66414-42020iACA21,ZCA26200005-200307

main66414-42030iACA20,ZCA25200005-200307

main66414-42040iACA20,ZCA25200005-200307

main66414-42070iACA21,ZCA26200307

main66414-42080iACA21,ZCA26200307

main66414-42090iACA20,ZCA25200307

main66414-42100iACA20,ZCA25200307

66423SPACER, SIDE RAIL, FRONT LH

main66423-42010iACA21,ZCA26200005-200307

main66423-42020iACA21,ZCA26200005-200307

main66423-42030iACA20,ZCA25200005-200307

main66423-42040iACA20,ZCA25200005-200307

main66423-42080iACA21,ZCA26200307

main66423-42090iACA21,ZCA26200307

main66423-42100iACA20,ZCA25200307

main66423-42110iACA20,ZCA25200307

66424SPACER, SIDE RAIL, REAR LH

main66424-42010iACA21,ZCA26200005-200307

main66424-42020iACA21,ZCA26200005-200307

main66424-42030iACA20,ZCA25200005-200307

main66424-42040iACA20,ZCA25200005-200307

main66424-42050iACA21,ZCA26200307

main66424-42060iACA21,ZCA26200307

main66424-42070iACA20,ZCA25200307

main66424-42080iACA20,ZCA25200307

81231DLENS, COURTESY

main81231-0W010iACA2#,ZCA2#200005-200307

main81231-AA010iACA2#,ZCA2#200307

9015950138

main90159-50138

9354014012

main93540-14012

9356755016

main93567-55016

17 parts on this diagram · 4 diagrams in section
