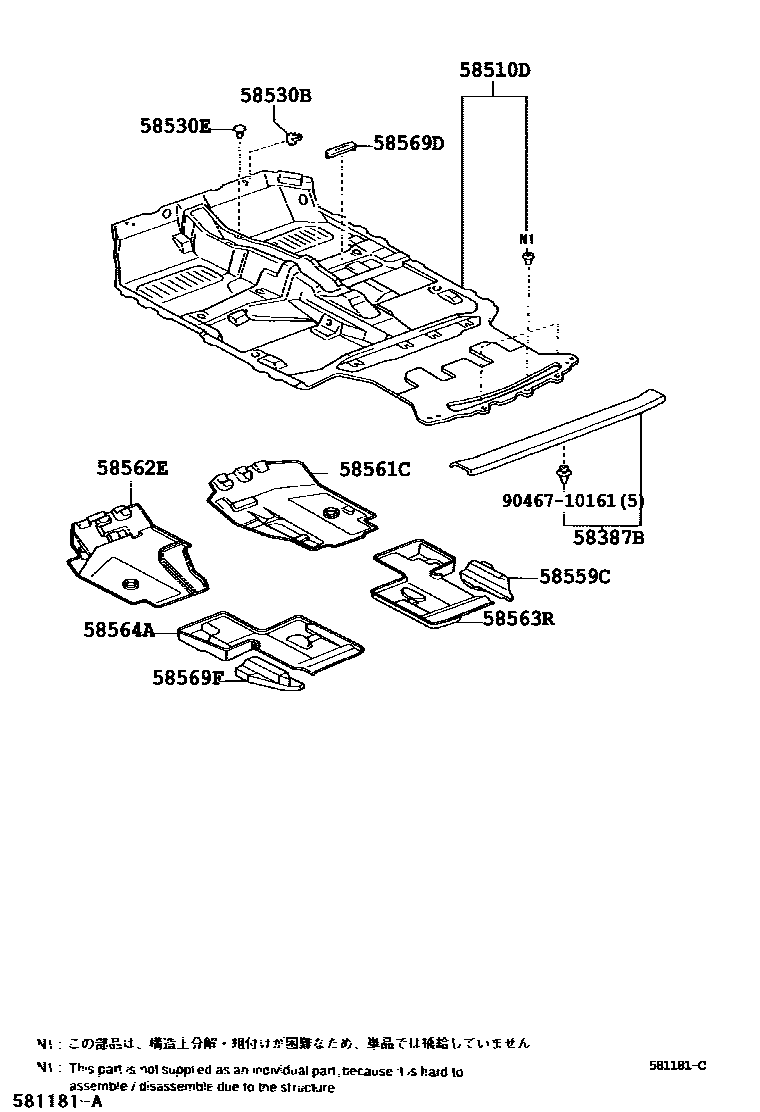

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58387BPLATE, REAR FLOOR FINISH

main58387-42020-B0iACA20,ZCA25..WIDE,X; ACA21,ZCA26;ACA20,ZCA25..AERO200005-200307

BLUE GRAY,TRIM1#; BLUE GRAY,TRIM14,15

main58387-42020-B1iACA2#,ZCA2#200307-200511

DK.GRAY,TRIM1#

main58387-42020-E0iACA21,ZCA26..WIDE,X200005-200307

FAWN,TRIM4#

58510DCARPET ASSY, FLOOR, FRONT

main58510-42390-B0iACA21,ZCA26..X200005-200108

BLUISH GRAY,TRIM1#

main58510-42390-E0iACA21,ZCA26..X200005-200108

FAWN,TRIM4#

main58510-42400-B0iACA21,ZCA26200005-200108

main58510-42400-E0iACA21,ZCA26..WIDE,X200005-200108

main58510-42480-B0iACA20,ZCA25..X200005-200108

BLUISH GRAY,TRIM15

main58510-42480-J0iACA20,ZCA25..X200005-200108

DARK BLUE,TRIM14

main58510-42490-B0iACA20,ZCA25..AERO; ACA20,ZCA25..WIDE,X200005-200108

main58510-42490-J0iACA20,ZCA25..WIDE,X200005-200108

main58510-42550-B0iACA21,ZCA26..X200108-200307

BLUISH GRAY,TRIM1#

main58510-42550-E0iACA21,ZCA26..X200108-200307

FAWN,TRIM4#

main58510-42560-B0iACA21,ZCA26200108-200307

main58510-42560-E0iACA21,ZCA26..WIDE,X200108-200307

main58510-42570-B0iACA20,ZCA25..X200108-200307

BLUISH GRAY,TRIM15

main58510-42570-J0iACA20,ZCA25..X200108-200307

DARK BLUE,TRIM14

main58510-42580-B0iACA20,ZCA25..AERO; ACA20,ZCA25..WIDE,X200108-200307

main58510-42580-J0iACA20,ZCA25..WIDE,X200108-200307

main58510-42600-B0iACA21,ZCA26..X200307-200511

GRAY,TRIM1#

main58510-42610-B0iACA21,ZCA26200307-200511

main58510-42700-B0iACA20,ZCA25..X200307-200511

GRAY,TRIM1#

main58510-42710-B0iACA20,ZCA25200307-200511

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09167×2iACA2#,ZCA2#200307

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90467-09118×2iACA2#,ZCA2#200005-200307

58559CPAD, FRONT FLOOR SIDE, RH

main58559-42010iACA20,ZCA25200307

58561CSILENCER, FRONT FLOOR, NO.1

main58561-42010iACA2#,ZCA2#..X200005-200307

main58561-42020iACA2#,ZCA2#200005-200307

58562ESILENCER, FRONT FLOOR, NO.2

main58562-42010iACA2#,ZCA2#..X200005-200306

main58562-42020iACA2#,ZCA2#200005-200306

main58562-42050iACA2#,ZCA2#..X200306-200307

main58562-42060iACA2#,ZCA2#200306-200307

58563RSILENCER, FRONT FLOOR, NO.3

main58563-42010iACA21,ZCA26200005-200307

main58563-42020iACA20,ZCA25200005-200307

main58563-42030iACA21,ZCA26200307

58564ASILENCER, FRONT FLOOR, NO.4

main58564-42010iACA21,ZCA26200005-200307

main58564-42020iACA20,ZCA25200005-200307

main58564-42030iACA21,ZCA26200307

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-44010-B2iACA20,ZCA25..WIDE,X; ACA21,ZCA26;ACA20,ZCA25..AERO200005-200307

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM14,15

main58569-44010-B5iACA2#,ZCA2#200307-200511

DK.GRAY,TRIM1#

main58569-44010-E0iACA21,ZCA26..WIDE,X200005-200307

SANDAL WOOD,TRIM4#

58569FPAD, FRONT FLOOR SIDE, LH

main58569-42010iACA20,ZCA25200307

9046710161

main90467-10161

12 parts on this diagram · 2 diagrams in section
