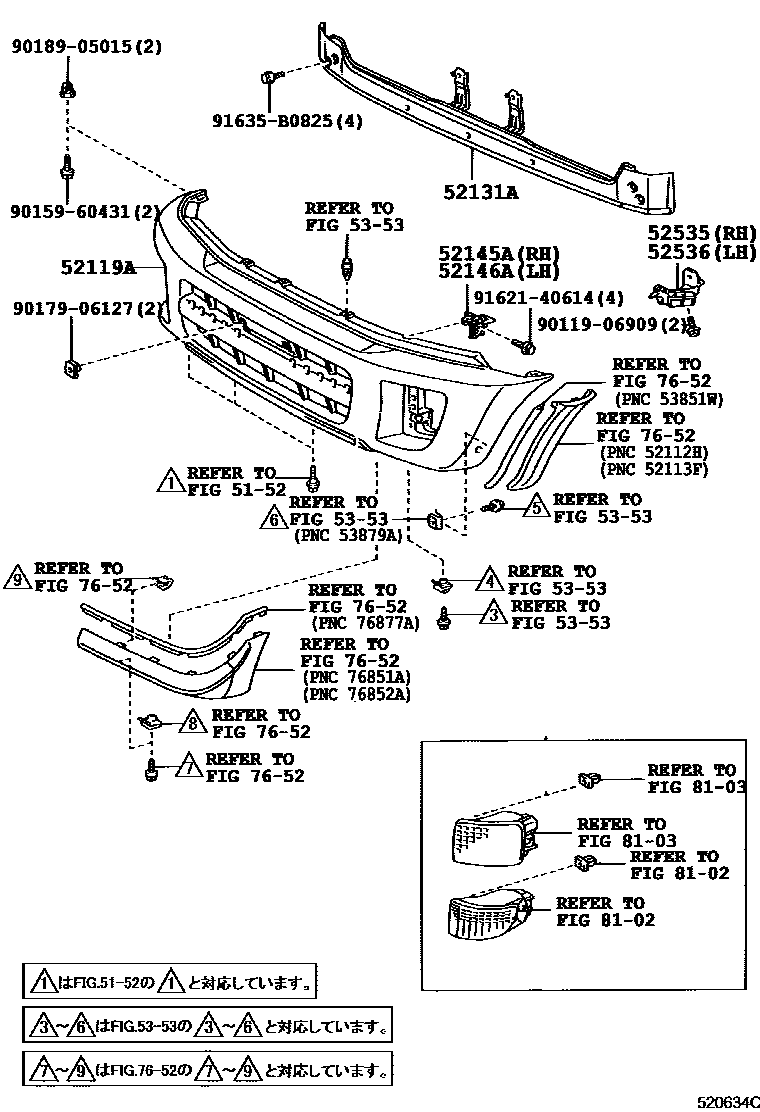

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52119ACOVER, FRONT BUMPER

main52119-42380-A0iACA2#,ZCA2#..X200307-200511

WHITE PEARL CS.,064

main52119-42380-B0iACA2#,ZCA2#..X200307-200511

SILVER ME.,1D4

main52119-42380-C0iACA2#,ZCA2#..X200307-200511

*104,BLACK,202

main52119-42380-D0iACA21,ZCA26..X200307-200511

*104,DK. RED M.M.,3Q3

main52119-42380-E0iACA21,ZCA26..X200307-200511

BEIGE ME.,4R4

main52119-42380-G0iACA21,ZCA26..X200307-200511

*104,DARK GREEN MC.,6R4

main52119-42380-G1iACA21,ZCA26..X200307-200511

*104,LT.GREEN ME.,6T6

main52119-42380-J0iACA2#,ZCA2#..X200307-200511

*104,BLUE MC.,8M6

main52119-42400-A0iACA2#..WIDE200307-200511

WHITE PEARL CS.,064

main52119-42400-B0iACA20..WIDE; ACA21..WIDE200307-200511

SILVER ME.,1D4; SILVER ME.,1D4 ,4R4

main52119-42400-C0iACA2#..WIDE200307-200511

*104,BLACK,202

main52119-42400-D0iACA21..WIDE200307-200511

*104,DK. RED M.M.,3Q3

main52119-42400-E0iACA21..WIDE200307-200511

BEIGE ME.,4R4

main52119-42400-G0iACA21..WIDE200307-200511

*104,DARK GREEN MC.,6R4

main52119-42400-G1iACA21..WIDE200307-200511

*104,LT.GREEN ME.,6T6

main52119-42400-J0iACA2#..WIDE200307-200511

*104,BLUE MC.,8M6

main52119-42903iACA2#,ZCA2#..X200005-200307

main52119-42904-A0iACA2#,ZCA2#..X200005-200307

*104,WHITE PEARL CS.,064

main52119-42904-A1iACA2#,ZCA2#..X200208-200307

*104,WHITE,056

main52119-42904-B0iACA20,ZCA25..X; ACA21,ZCA26..X200005-200208

*104,SILVER ME.,056 ,1D4; *104,SILVER ME.,1D4

main52119-42904-B1iACA20,ZCA25..X; ACA21,ZCA26..X200005-200307

*104,GRAY MM,202 ,586 ,6S3 ,8M6; *104,GRAY MM,3P1 ,8P1

main52119-42904-C0iACA2#,ZCA2#..X200005-200307

*104,BLACK,202

main52119-42904-F0iACA2#,ZCA2#..X200005-200307

*104,CHANPANGE ME.,586

main52119-42904-G0iACA2#,ZCA2#..X200005-200307

*104,DK.GREEN M.M.,6S3

main52119-42904-J0iACA2#,ZCA2#..X200005-200307

*104,BLUE MC.,8M6

main52119-42905iACA2#..WIDE200005-200307

main52119-42906-A0iACA2#..WIDE200005-200307

*104,WHITE PEARL CS.,064

main52119-42906-B0iACA20..WIDE; ACA21..WIDE200005-200307

*104,SILVER ME.,056 ,1D4; *104,SILVER ME.,1D4

main52119-42906-B1iACA20..WIDE200005-200307

*104,GRAY MM,3P1 ,8P1

main52119-42906-C0iACA2#..WIDE200005-200307

*104,BLACK,202

main52119-42906-F0iACA2#..WIDE200005-200307

*104,CHANPANGE ME.,586

main52119-42906-G0iACA2#..WIDE200005-200307

*104,DK.GREEN M.M.,6S3

main52119-42906-J0iACA2#..WIDE200005-200307

*104,BLUE MC.,8M6

main52119-42909-A0iACA2#,ZCA2#..AERO200005-200307

*104,WHITE PEARL CS.,064

main52119-42909-B0iACA2#,ZCA2#..AERO200005-200307

*104,SILVER ME.,1D4

main52119-42909-C0iACA2#,ZCA2#..AERO200005-200307

*104,BLACK,202

main52119-42909-F0iACA2#,ZCA2#..AERO200108-200307

*104,CHAMPAGNE ME.,586

52131AREINFORCEMENT, FRONT BUMPER

main52021-42040iACA2#,ZCA2#200005-200007

main52021-42041iACA2#,ZCA2#200007-200307

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-42020iACA2#,ZCA2#200005-200307

main52145-42030iACA2#,ZCA2#200307-200511

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-42020iACA2#,ZCA2#200005-200307

main52146-42030iACA2#,ZCA2#200307-200511

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-42010iACA2#,ZCA2#200005-200307

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-42010iACA2#,ZCA2#200005-200307

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

7652SPOILER & SIDE MUDGUARD

→ Go to FIG 76-52

8102FOG LAMP

→ Go to FIG 81-02

8103FRONT TURN SIGNAL LAMP

→ Go to FIG 81-03

9011906909

main90119-06909

9015960431

main90159-60431

9017906127

main90179-06127

9018905015

main90189-05015

9162140614

main91621-40614

91635B0825

main91635-B0825

17 parts on this diagram · 3 diagrams in section
