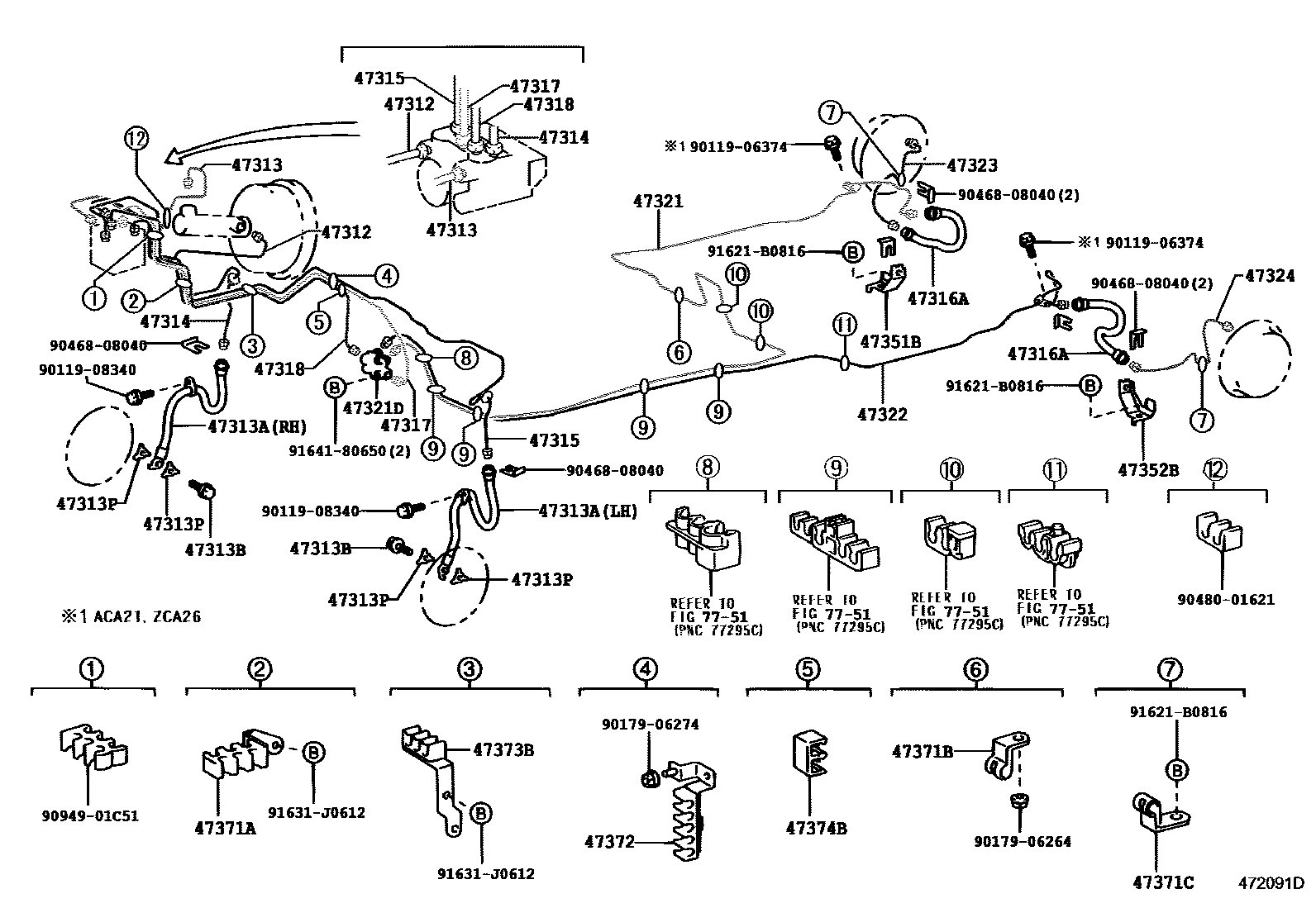

BRAKE TUBE & CLAMP

0001 1 0002 1��(VSC) 0003 1 0004 1 0005 1��(VSC)

47312TUBE, FRONT BRAKE, NO.2

main47312-42160iACA2#,ZCA2#200307

main47312-42170iACA2#,ZCA2#200005-200307

main47312-42250iACA2#200307

47313TUBE, FRONT BRAKE, NO.3

main47313-42160iACA2#,ZCA2#200307

main47313-42170iACA2#,ZCA2#200005-200307

main47313-42250iACA2#200307

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02C54iACA2#,ZCA2#200005-200307

main90947-02C55iACA2#,ZCA2#200307

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iACA2#,ZCA2#200005-200307

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010×4iACA2#,ZCA2#200005-200307

47314TUBE, FRONT BRAKE, NO.4

main47314-42110iACA2#200307

main47314-42120iACA2#,ZCA2#200005-200307

47315TUBE, FRONT BRAKE, NO.5

main47315-42170iACA2#,ZCA2#200005-200108

main47315-42171iACA2#,ZCA2#200108-200307

main47315-42220iACA2#200307

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02C53×2iACA2#,ZCA2#200005-200307

47317TUBE, FRONT BRAKE, NO.7

main47317-42110iACA2#,ZCA2#200005-200108

main47317-42111iACA2#,ZCA2#200108-200305

main47317-42112iACA2#,ZCA2#200305-200307

main47317-42160iACA2#200307

47318TUBE, FRONT BRAKE, NO.8

main47318-42110iACA2#,ZCA2#200005-200108

main47318-42111iACA2#,ZCA2#200108-200307

main47318-42160iACA2#200307

47321TUBE, REAR BRAKE, NO.1

main47321-42100iACA21,ZCA26200005-200305

main47321-42101iACA21,ZCA26200307-200511

main47321-42110iACA20,ZCA25200005-200305

main47321-42111iACA20,ZCA25200305-200307

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10140iACA2#,ZCA2#200005-200307

47322TUBE, REAR BRAKE, NO.2

main47322-42070iACA21,ZCA26200005-200305

main47322-42071iACA21,ZCA26200305-200307

main47322-42080iACA20,ZCA25200005-200305

main47322-42081iACA20,ZCA25200305-200307

47323TUBE, REAR BRAKE, NO.3

main47323-42040iACA2#,ZCA2#200005-200208

main47323-42041iACA2#,ZCA2#200208-200307

main47323-42050iACA2#200307

47324TUBE, REAR BRAKE, NO.4

main47324-42040iACA2#,ZCA2#200005-200208

main47324-42041iACA2#,ZCA2#200208-200307

main47324-42050iACA2#200307

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-42060iACA2#,ZCA2#200005-200307

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-42060iACA2#200005-200008

47371ACLAMP, BRAKE TUBE, NO.1

main47371-42200iACA2#,ZCA2#200005-200307

47371BCLAMP, BRAKE TUBE, NO.6

main90461-08715iACA2#,ZCA2#200005-200307

47371CCLAMP, BRAKE TUBE, NO.7

main90461-08726×2iACA2#,ZCA2#200005-200307

47372CLAMP, BRAKE TUBE, NO.2

main47371-42210iACA2#,ZCA2#200005-200307

47373BCLAMP, BRAKE TUBE, NO.3

main47371-42250iACA2#,ZCA2#200005-200307

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01972iACA2#,ZCA2#200005-200307

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011906374

main90119-06374

9011908340

main90119-08340

9017906264

main90179-06264

9017906274

main90179-06274

9046808040

main90468-08040

9048001621

main90480-01621

9094901C51

main90949-01C51

91621B0816

main91621-B0816

91631J0612

main91631-J0612

9164180650

main91641-80650

34 parts on this diagram · 5 diagrams in section
