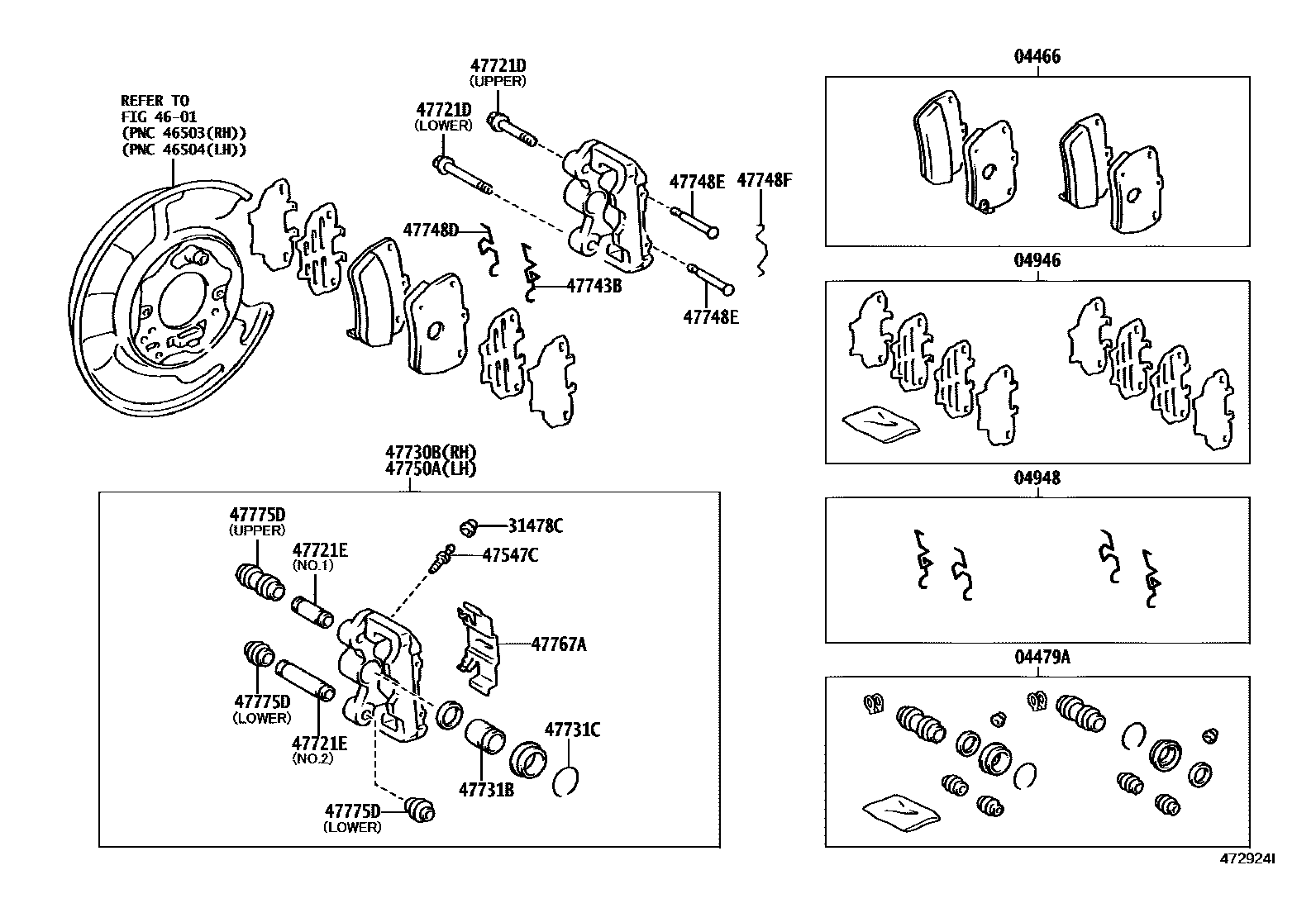

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-42050iZCA2#200307-200402

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-42020iZCA2#200307-200402

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-42011iZCA2#200307-200402

04948FITTING KIT, DISC BRAKE, REAR

main04948-20010iZCA2#200307-200402

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iACA2#200307-200511

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-35020×2iACA2#200307-200511

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10427×2iACA2#200307-200511

main90105-10428×2iACA2#200307-200511

47721ECOLLAR(FOR REAR DISC BRAKE CYLINDER MOUNTING)

main90389-10053×2iACA2#200307-200511

main90389-10054×2iACA2#200307-200511

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-42050iACA2#200307-200511

47731BPISTON, REAR DISC BRAKE

main47731-42020×2iACA2#200307-200511

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-37016×2iACA2#200307-200511

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-20030×2iACA2#200307-200511

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-20040×2iACA2#200307-200511

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main90240-06021×4iACA2#200307-200511

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12025×2iACA2#200307-200511

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-42050iACA2#200307-200511

47767APROTECTOR, REAR DISC BRAKE PAD

main47767-42010×2iACA2#200307-200511

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22020×2iACA2#200307-200511

main47775-42010×4iACA2#200307-200511

19 parts on this diagram · 1 diagram in section
