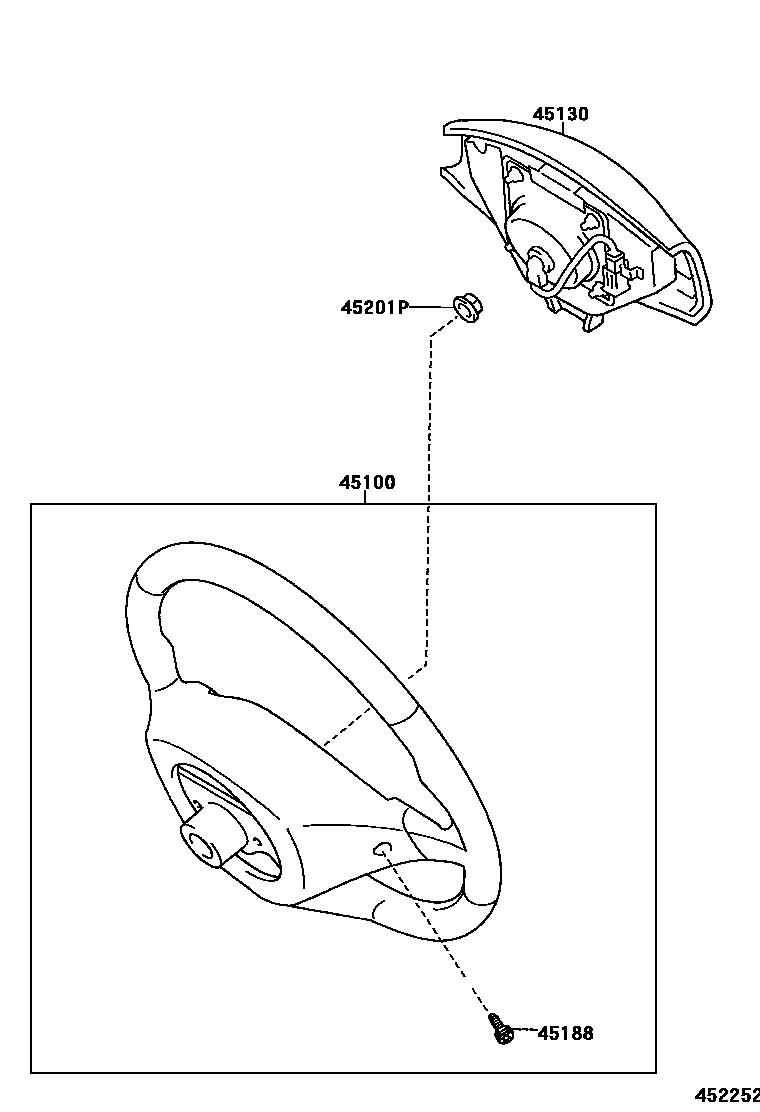

STEERING WHEEL

0001 13-SPOKE 0002 13-SPOKE

45100WHEEL ASSY, STEERING

main45100-42080-C0iACA2#,ZCA2#..AERO; ACA20,ZCA25..WIDE,X; ACA21,ZCA26..WIDE,X200005-200307

main45100-42100-C0iACA2#,ZCA2#..AERO; ACA20,ZCA25..WIDE,X; ACA21,ZCA26..WIDE,X200005-200307

main45100-42200-C0iACA2#,ZCA2#..X200307-200511

main45100-42210-C0iACA2#,ZCA2#..X200307-200511

main45100-42220-C0iACA2#..X200307-200511

main45100-42230-C0iACA2#200307-200511

45130BUTTON ASSY, HORN

main45130-42090-C0iACA2#,ZCA2#..AERO; ACA20,ZCA25..WIDE,X; ACA21,ZCA26..WIDE,X200005-200307

BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM14,15

main45130-42110-C0iACA2#,ZCA2#200307-200511

BLACK,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iACA2#,ZCA2#200307-200511

main90148-60007×2iACA2#,ZCA2#200005-200307

45201PNUT, STEERING WHEEL SET

main90179-12071iACA2#,ZCA2#200005-200307

4 parts on this diagram · 2 diagrams in section
