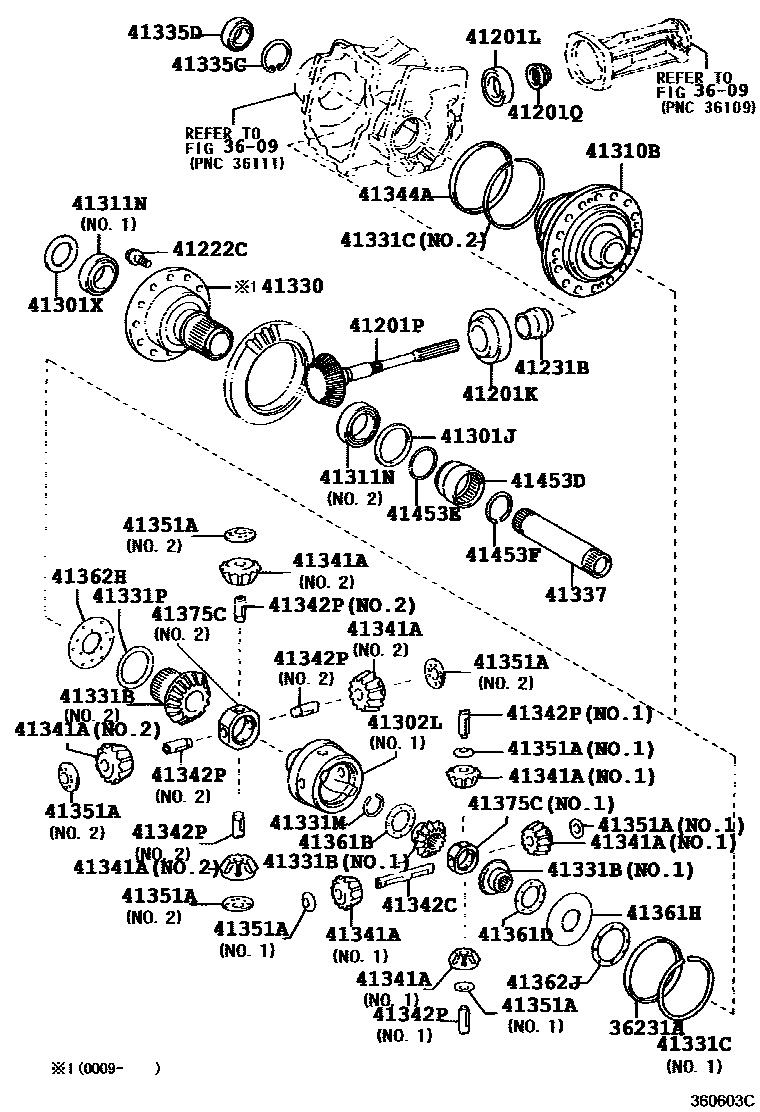

TRANSFER GEAR
3609
36231ASPACER (FOR TRANSFER OUTPUT SHAFT)
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
41201PGEAR KIT, TRANSFER
sub41201-21040
41201QNUT (FOR TRANSFER GEAR)
41222CBOLT (FOR TRANSFER RING GEAR)
41231BSPACER, TRANSFER PINION BEARING
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
41302LCASE SUB-ASSY, DIFFERENTIAL, NO.2
41310BGEAR ASSY, CENTER DIFFERENTIAL PLANETARY
41311NBEARING, TAPERED ROLLER (FOR CENTER DIFFERENTIAL CASE)
41330COUPLING ASSY, CENTER DIFFERENTIAL CONTROL
41331BGEAR, CENTER DIFFERENTIAL SIDE
41331CRING, SHAFT SNAP(FOR PINION SHAFT SPACER)
41331MRING, HOLE SNAP(FOR CENTER DIFFERENTIAL PLANETARY RING GEAR)
41331PWASHER, CONICAL SPRING
41335CRING, HOLE SNAP (FOR SIDE GEAR SHAFT HOLDER)
41335DBEARING (FOR SIDE GEAR SHAFT HOLDER)
41337SHAFT, DIFFERENTIAL SIDE GEAR INTERMEDIATE, NO.2
41341APINION, CENTER DIFFERENTIAL
41342CSHAFT, CENTER DIFFERENTIAL PINION
41342PSHAFT, DIFFERENTIAL PINION
41344ASPACER, CENTER DIFFERENTIAL PINION SHAFT, NO.1
41351AWASHER, CENTER DIFFERENTIAL PINION TRUST
41361BWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361DWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.2
41361HWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
41362HWASHER, DIFFERENTIAL SIDE GEAR THRUST, NO.2, LH
41362JWASHER, DIFFERENTIAL SIDE GEAR THRUST, NO.2, RH
41375CHOLDER, CENTER DIFFERENTIAL PINION SHAFT
41453DSLEEVE, CENTER DIFFERENTIAL LOCK
41453ERING, O
41453FRING, SHAFT SNAP
35 parts on this diagram · 1 diagram in section
