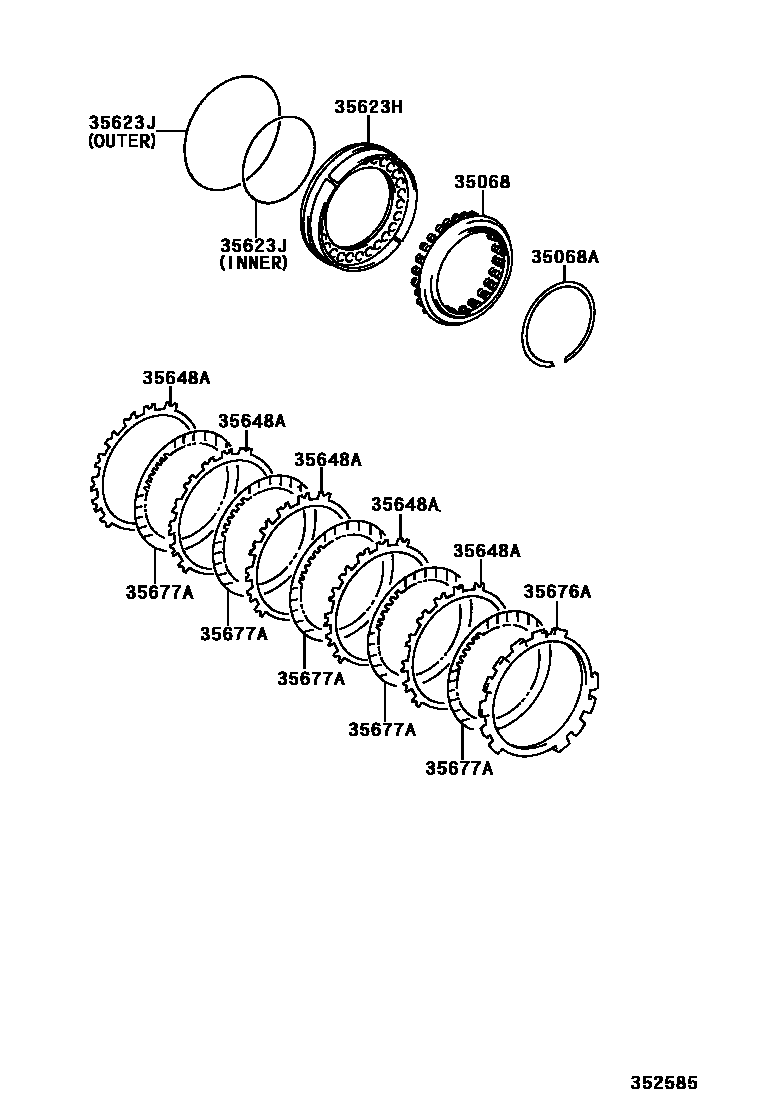

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U140F 0002 1U341E

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-21010iACA2#..ATM200005-200307

main35068-21011iACA2#200404

main35068-52030iZCA2#200005-200307

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-99035iACA2#..ATM200005-200307

35623HPISTON, 1ST & REVERSE BRAKE

main35623-28020iACA2#..ATM200005-200307

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99096iACA2#..ATM200005-200307

main90301-99098iACA2#..ATM200005-200307

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35692-21011×5iACA2#200509

main35692-28010×5iACA2#..ATM200005-200307

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35678-21010iACA2#200307

main35678-21020iACA2#200307

main35678-21030iACA2#200307

main35678-21040iACA2#..ATM200005-200307

main35678-21050iACA2#..ATM200005-200307

main35678-21060iACA2#..ATM200005-200307

main35678-21070iACA2#200307

main35678-21080iACA2#..ATM200005-200307

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35682-28010×5iACA2#..ATM200005-200307

7 parts on this diagram · 2 diagrams in section
