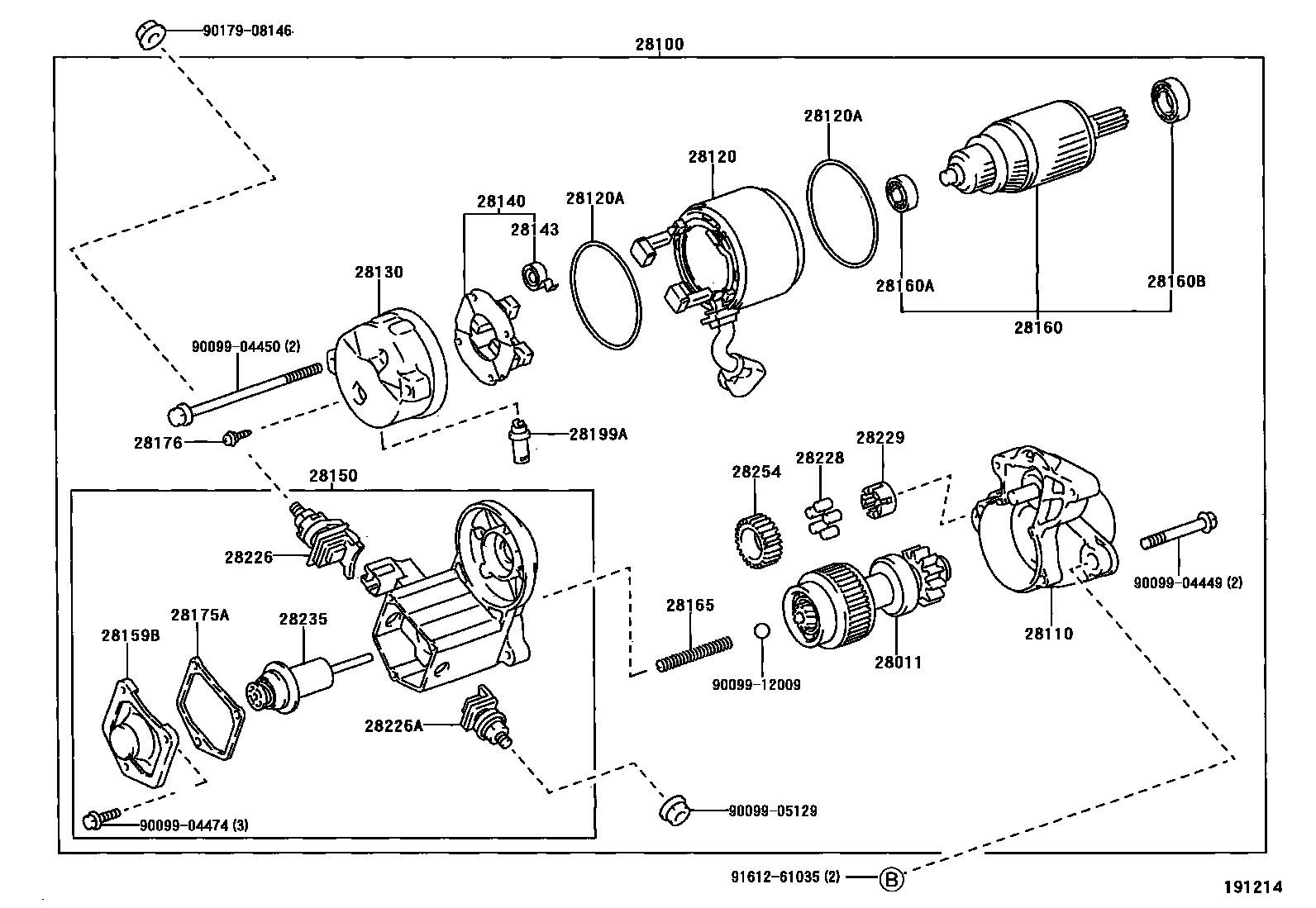

STARTER

0001 112V 1.2KW 0002 112V 0.8,1.0KW 0003 112V 1.2KW 0004 112V 0.8KW,1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-70020i1ZZFE..ZCA2#200307

main28011-74070i1AZFSE..ACA2#200307

28100STARTER ASSY

main28100-22030i1ZZFE..ZCA2#200307

main28100-22040i1ZZFE..ZCA2#200307

main28100-74270i1AZFSE..ACA2#200005-200307

28110HOUSING ASSY, STARTER DRIVE

main28110-22030i1ZZFE..ZCA2#200005-200307

main28110-74270i1AZFSE..ACA2#200005-200307

28120YOKE ASSY, STARTER

main28120-16180i1AZFSE..ACA2#200005-200307

main28120-70020i1ZZFE..ZCA2#200307

12V 0.8KW

main28120-70050i1ZZFE..ZCA2#200307

12V 1.0KW

28120ARING, O(FOR STARTER YOKE)

main90099-14064×2i1AZFSE..ACA2#200005-200307

main90099-14092×2i1ZZFE..ZCA2#200005-200307

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15190i1ZZFE..ZCA2#200005-200307

main28130-74270i1AZFSE..ACA2#200005-200307

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i1ZZFE..ZCA2#200005-200307

main28140-74120i1AZFSE..ACA2#200307

28143SPRING, STARTER BRUSH

main28143-70020×4i1ZZFE..ZCA2#200005-200307

main28143-76060×4i1AZFSE..ACA2#200005-200307

28150SWITCH ASSY, MAGNET STARTER

main28150-70030i1ZZFE..ZCA2#200005-200307

main28150-74270i1AZFSE..ACA2#200307

28159BCOVER, MAGNET SWITCH

main28159-55050i1AZFSE..ACA2#200005-200307

28160ARMATURE ASSY, STARTER

main28160-70021i1ZZFE..ZCA2#200307

12V 0.8KW

main28160-70050i1ZZFE..ZCA2#200307

12V 1.0KW

main28160-76060i1AZFSE..ACA2#200005-200307

28160ABEARING, STARTER ARMATURE

main90099-10196i1AZFSE..ACA2#200005-200307

28160BBEARING, STARTER ARMATURE, NO.2

main90099-10197i1AZFSE..ACA2#200005-200307

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-74070i1AZFSE..ACA2#200005-200307

28175AGASKET, MAGNET SWITCH COVER

main28175-55050i1AZFSE..ACA2#200005-200307

28176SCREW, STARTER

main90099-00270×2i1AZFSE,1ZZFE..ACA2#,ZCA2#200005-200307

28199APROTECTOR, DUST STARTER

main28199-46080i1ZZFE..ZCA2#200005-200307

main28199-74110i1AZFSE..ACA2#200005-200307

28226STARTER KIT, BATTERY TERMINAL

main28226-55050i1AZFSE..ACA2#200005-200307

28226ASTARTER KIT, MOTOR TERMINAL

main28226-74070i1AZFSE..ACA2#200005-200307

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i1AZFSE..ACA2#200005-200307

28229RETAINER, STARTER IDLE GEAR

main28229-74070i1AZFSE..ACA2#200005-200307

28235PLUNGER, MAGNET SWITCH

main28235-74130i1AZFSE..ACA2#200005-200307

28254PINION, STARTER IDLE GEAR

main28254-74070i1AZFSE..ACA2#200005-200307

9009904449

main90099-04449

9009904450

main90099-04450

9009904474

main90099-04474

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9161261035

main91612-61035

30 parts on this diagram · 4 diagrams in section
