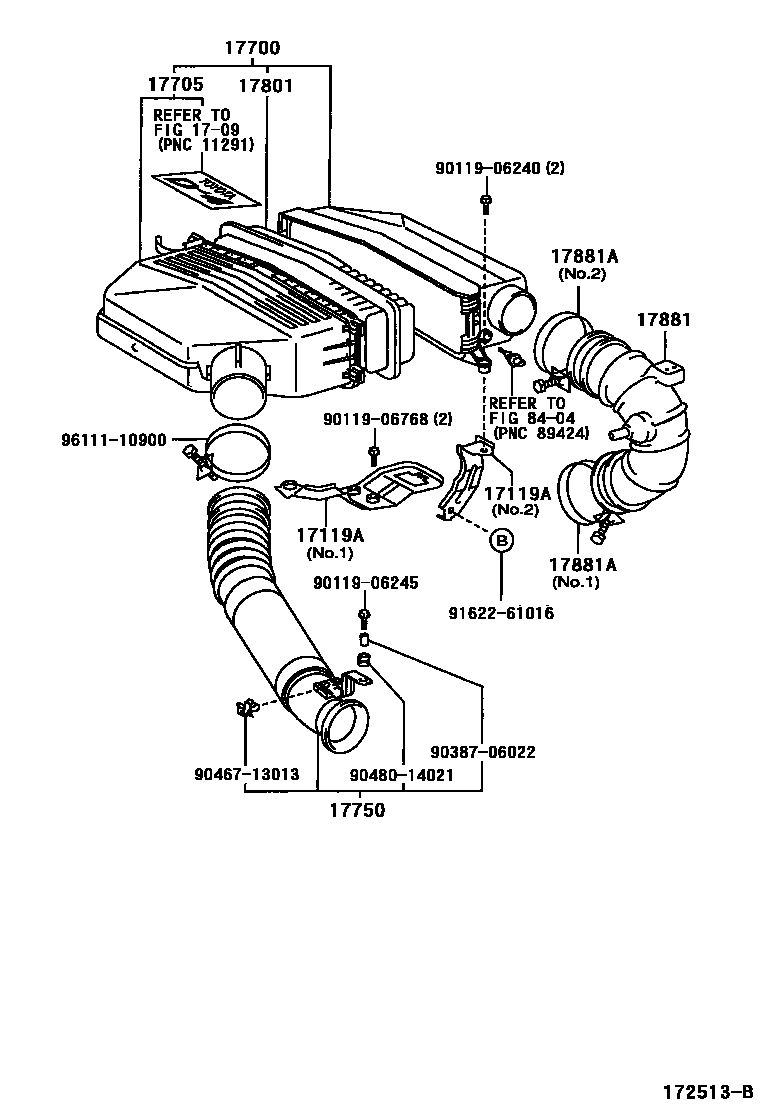

AIR CLEANER

0001 1 0002 1 0003 1

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

17119ABRACKET, AIR CLEANER

main17119-22050i1ZZFE..ZCA2#200005-200307

main17119-28020i1AZFSE..ACA2#200307

main17119-28030i1AZFSE..ACA2#200307

17700CLEANER ASSY, AIR

main17700-22110i1ZZFE..ZCA2#200005-200307

main17700-28100i1AZFSE..ACA2#200005-200307

main17700-28220i1AZFSE..ACA2#200307

17705CAP SUB-ASSY, AIR CLEANER

main17705-22110i1ZZFE..ZCA2#200005-200307

main17705-28060i1AZFSE..ACA2#200005-200307

main17705-28210i1AZFSE..ACA2#200307

17750COVER ASSY, AIR CLEANER INLET, SEAL

main17750-28010i1AZFSE..ACA2#200005-200307

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-28010i1AZFSE..ACA2#200005-200307

main17801-70050i1ZZFE..ZCA2#200307

17881HOSE, AIR CLEANER, NO.1

main17881-22060i1ZZFE..ZCA2#200307

main17881-28050i1AZFSE..ACA2#200307

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i1AZFSE..ACA2#200005-200307

main96111-10830×2i1AZFSE..ACA2#; 1ZZFE..ZCA2#200005-200307

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011906240

main90119-06240

9011906245

main90119-06245

9011906768

main90119-06768

9038706022

main90387-06022

9046713013

main90467-13013

9048014021

main90480-14021

9162261016

main91622-61016

9611110900

main96111-10900

17 parts on this diagram · 3 diagrams in section
