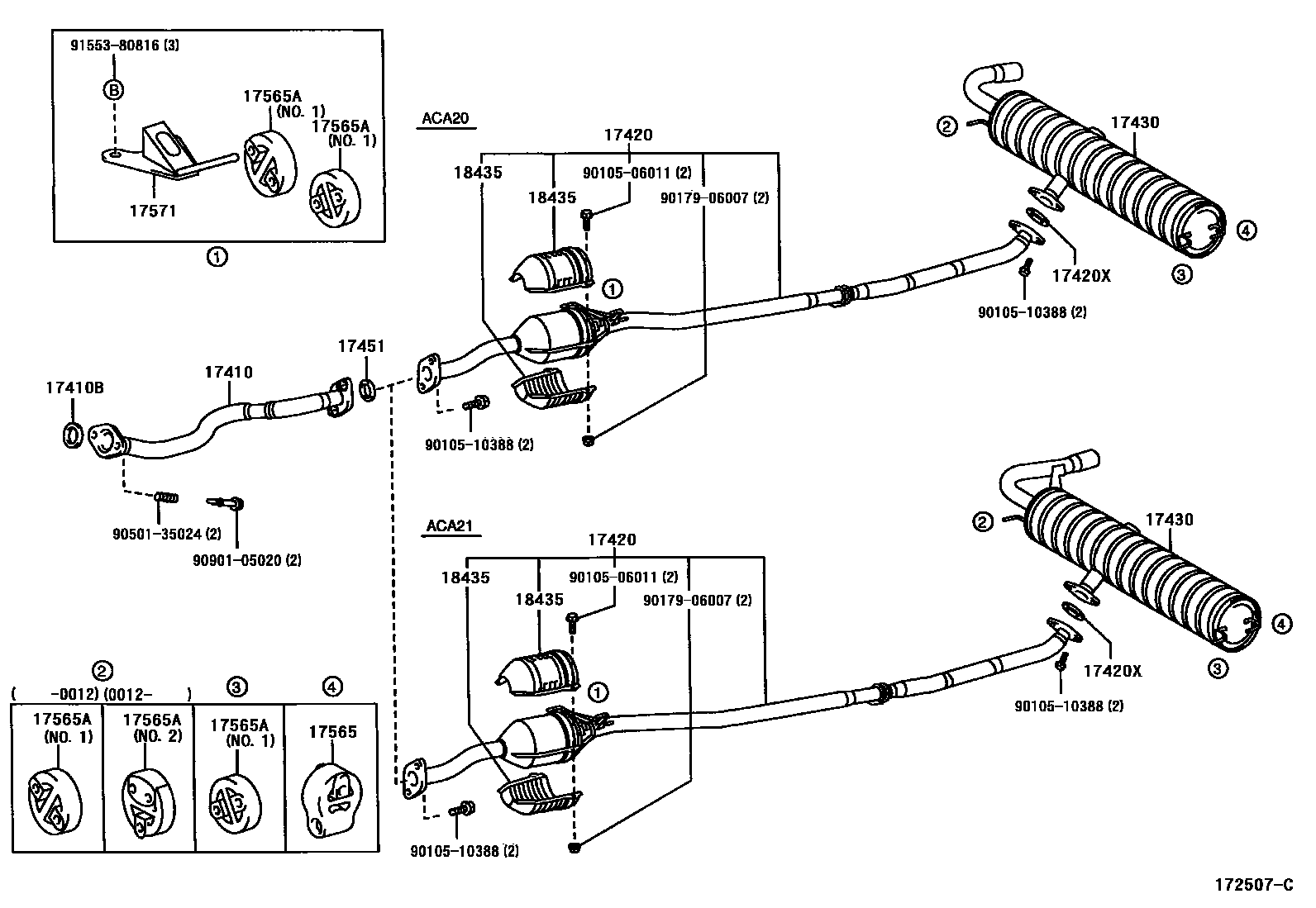

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
18435PROTECTOR, CATALYTIC CONVERTER
9010506011
main90105-06011
9010510388
main90105-10388
9017906007
main90179-06007
9050135024
main90501-35024
9090105020
main90901-05020
9155380816
main91553-80816
16 parts on this diagram · 4 diagrams in section
