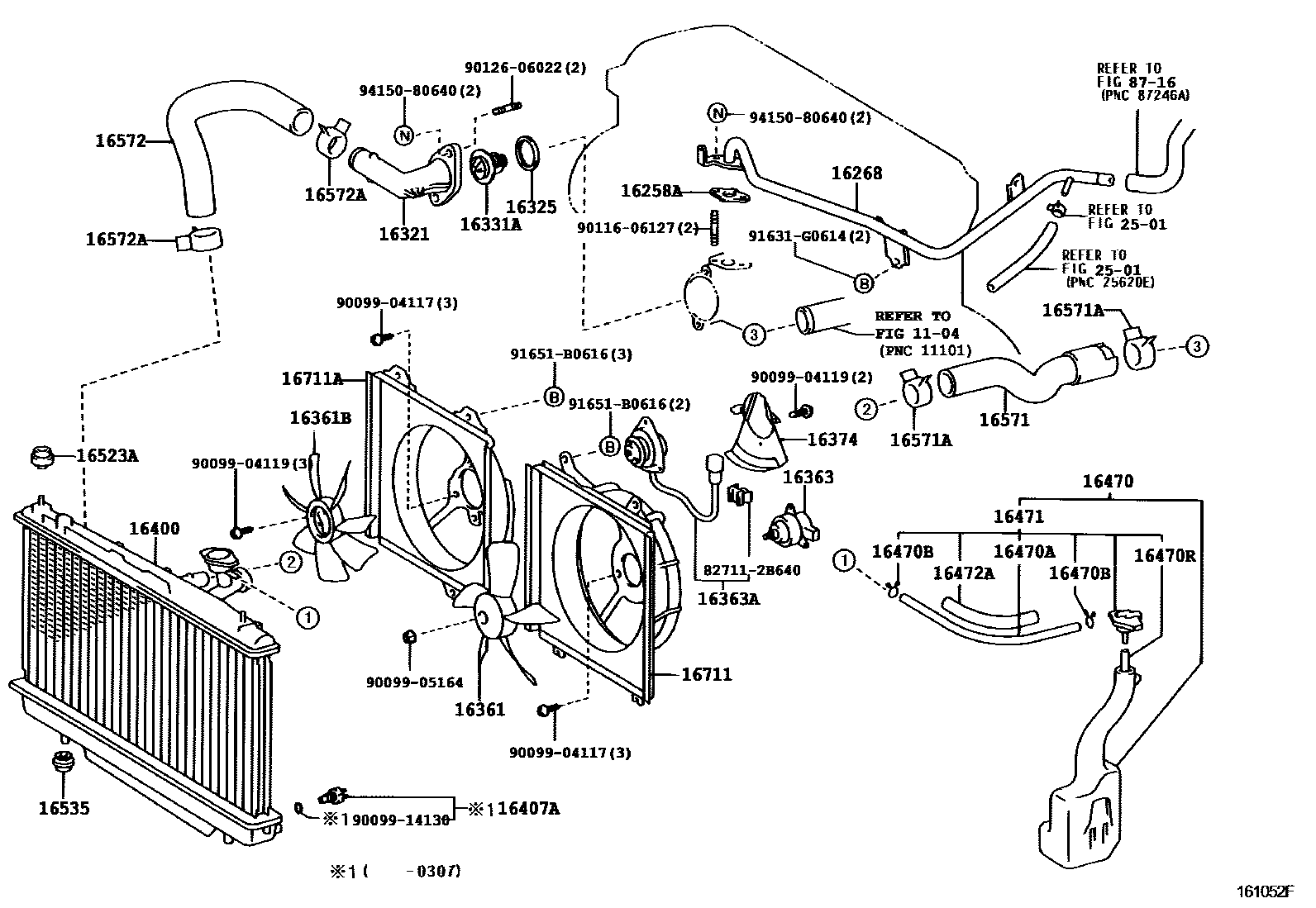

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

1104

16258AGASKET(FOR HEATER RETURN)

main16258-28010i1AZFSE..ACA2#200005-200304

sub16258-28030

main16258-28011i1AZFSE..ACA2#200304-200308

sub16258-28030

main16258-28030i1AZFSE..ACA2#200308

16268PIPE, WATER BY-PASS, NO.1

main16268-22080i1ZZFE..ZCA2#200307

sub16268-22081

main16268-22100i1ZZFE..ZCA2#200005-200307

sub16268-22101

main16268-28020i1AZFSE..ACA2#200005-200307

16321INLET, WATER

main16321-22070i1ZZFE..ZCA2#200005-200307

main16321-28010i1AZFSE..ACA2#200005-200307

16325GASKET, WATER INLET HOUSING, NO.1

main16325-0H020i1ZZFE..ZCA2#200406

main16325-28010i1AZFSE..ACA2#200308-200511

main16325-62010i1ZZFE..ZCA2#200005-200406

main16325-62010i1ZZFE..ZCA2#200406

16331ATHERMOSTAT

main90916-03084i1AZFSE..ACA2#200005-200409

sub90916-03129

main90916-03127i1AZFSE..ACA2#200108-200307

main90916-03129i1ZZFE..ZCA2#200005-200510

main90916-03136i1AZFSE..ACA2#200510-200511

16361FAN

main16361-23050i1ZZFE..ZCA2#200307

PNC 16711 = TYPE A

main16361-28020i1ZZFE..ZCA2#200012-200408

PNC 16711 = TYPE B

sub16361-28021

main16361-28020i1ZZFE..ZCA2#200005-200012

PNC 16711 = TYPE A

sub16361-28021

main16361-28020i1AZFSE..ACA2#200005-200402

sub16361-28021

main16361-28021i1AZFSE..ACA2#200403

main16361-28021i1ZZFE..ZCA2#200408

PNC 16711 = TYPE B

16361BFAN, NO.2

main16361-28060i1AZFSE..ACA2#200005-200307

16363MOTOR, COOLING FAN

main16363-23010i1ZZFE..ZCA2#200012-200307

PNC 16711 = TYPE B

main16363-23010i1AZFSE..ACA2#200005-200307

main16363-23010i1ZZFE..ZCA2#200005-200012

PNC 16711 = TYPE A

main16363-23030i1ZZFE..ZCA2#200307

PNC 16711 = TYPE A

sub16363-28160

16363AMOTOR, COOLING FAN, NO.2

main16363-28060i1AZFSE..ACA2#200005-200307

16374INSULATOR, COOLING FAN MOTOR

main16374-28010i1AZFSE..ACA2#200005-200307

16400RADIATOR ASSY

main16400-22130i1ZZFE..ZCA2#200005-200011

sub16400-22131

main16400-22131i1ZZFE..ZCA2#200011-200307

sub16400-22220

main16400-22220i1ZZFE..ZCA2#200307

main16400-28130i1AZFSE..ACA2#..MTM200005-200307

sub16400-28131

main16400-28140i1AZFSE..ACA2#..ATM200005-200307

sub16400-28460

main16400-28470i1AZFSE..ACA2#200307

16407ACOCK SUB-ASSY, RADIATOR DRAIN

main16407-7A130i1AZFSE..ACA2#200005-200307

16470TANK ASSY, RADIATOR RESERVE

main16470-28050i1ZZFE..ZCA2#200005-200307

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i1AZFSE..ACA2#200005-200307

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1AZFSE..ACA2#200005-200307

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i1AZFSE..ACA2#200005-200307

16471CAP SUB-ASSY, RESERVE TANK

main16405-28020i1AZFSE..ACA2#200005-200307

16472APROTECTOR, HOSE

main16483-28050i1AZFSE..ACA2#200005-200307

16523ACUSHION, RADIATOR SUPPORT

main16523-28010i1AZFSE..ACA2#200005-200307

16535SUPPORT, RADIATOR, LOWER

main16535-74210i1ZZFE..ZCA2#200005-200307

16571HOSE, RADIATOR, INLET

main16571-22060i1ZZFE..ZCA2#200005-200307

main16571-28060i1AZFSE..ACA2#200005-200307

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34004i1ZZFE..ZCA2#200005-200511

main90467-37005i1ZZFE..ZCA2#200005-200511

main90467-37005i1AZFSE..ACA2#200204-200307

main90467-37006i1AZFSE..ACA2#200005-200204

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-22060i1ZZFE..ZCA2#200005-200307

main16572-28030i1AZFSE..ACA2#200005-200307

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-37002i1ZZFE..ZCA2#200005-200511

main90467-37005i1ZZFE..ZCA2#200005-200511

main90467-37005i1AZFSE..ACA2#200204-200307

main90467-37006i1AZFSE..ACA2#200005-200204

sub90467-37005

16711SHROUD, FAN

main16711-22110i1ZZFE..ZCA2#200012-200307

main16711-28130i1AZFSE..ACA2#200005-200307

main16711-28130i1ZZFE..ZCA2#200005-200012

main16711-28150i1ZZFE..ZCA2#200307

16711ASHROUD, FAN, NO.2

main16711-22090i1AZFSE..ACA2#200005-200307

2501

8716

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

9009914130

main90099-14130

9011606127

main90116-06127

9012606022

main90126-06022

91631G0614

main91631-G0614

91651B0616

main91651-B0616

9415080640

main94150-80640

39 parts on this diagram · 4 diagrams in section
