11711BEARING, CRANKSHAFT

main11701-22010-01×5i200307-200407

main11701-22010-02×5i200307-200407

main11701-22010-03×5i200307-200407

main11701-22010-04×5i200005-200307

main11701-22011-01×5i200407

main11701-22011-02×5i200407

main11701-22011-03×5i200407

main11701-22011-04×5i200407

main11711-28010-01×5i200005-200307

main11711-28010-02×5i200307-200511

main11711-28010-03×5i200307-200511

main11711-28010-04×5i200005-200307

main11711-28020-01×5i200511

main11711-28020-02×5i200511

main11711-28020-03×5i200511

main11711-28020-04×5i200511

11721BEARING, CRANKSHAFT, NO.2

main11721-28010-01×5i200307-200511

main11721-28010-02×5i200307-200511

main11721-28010-03×5i200005-200307

main11721-28010-04×5i200005-200307

main11721-28020-01×5i200511

main11721-28020-02×5i200511

main11721-28020-03×5i200511

main11721-28020-04×5i200511

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020×2i200307

main11791-28020×2i200307

13011RING SET, PISTON

main13011-22090i200005-200111

main13011-22150i200111-200307

main13011-22200i200408-200410

main13011-22220i200410

main13011-22230i200307-200408

main13011-28110i200005-200307

main13011-28200i200307

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

13041BEARING, CONNECTING ROD

main13041-22023-01×4i200005-200307

main13041-22023-02×4i200005-200307

main13041-22023-03×4i200005-200307

main13041-22024-01×4i200405

main13041-22024-02×4i200405

main13041-22024-03×4i200405

main13281-28010-01×8i200005-200307

main13281-28010-02×8i200005-200307

main13281-28010-03×8i200307

13101PISTON SUB-ASSY, W/PIN

main13101-22030×4i200005-200112

main13101-22031×4i200112-200307

main13101-22140×4i200307-200505

main13101-22141×4i200505-200508

main13101-22180×4i200508

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-20064×8i200005-200307

main90520-22025×8i200307

13201ROD SUB-ASSY, CONNECTING

main13201-09201×4i200501

main13201-09790-A0×4i200504-200511

main13201-09790-B0×4i200504-200511

main13201-09790-C0×4i200504-200511

main13201-29038×4i200005-200307

main13201-29125-A0×4i200005-200307

main13201-29125-B0×4i200005-200307

main13201-29125-C0×4i200005-200307

main13201-29176×4i200501

main13201-29685-A0×4i200404-200504

main13201-29685-B0×4i200404-200504

main13201-29685-C0×4i200504-200511

13211PISTON

main13211-28040-A0×4i200005-200307

main13211-28040-B0×4i200005-200307

main13211-28040-C0×4i200005-200307

main13211-28090-A0×4i200307

main13211-28090-B0×4i200307

main13211-28090-C0×4i200307

13251PIN, PISTON

main13251-28010-A0×4i200005-200307

main13251-28010-B0×4i200307

main13251-28010-C0×4i200307

13265BOLT, CONNECTING ROD

main13265-22020×8i200307

main13265-28010×8i200307

13405FLYWHEEL SUB-ASSY

main13405-28020i200005-200307

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i200005-200307

13405BBOLT, FLYWHEEL SETTING

main90105-12322×8i200005-200307

13411CRANKSHAFT

main13401-0D050i200501

main13401-22010i200307-200501

main13401-22020i200005-200307

main13411-28040i200112-200307

main13411-28902i200005-200112

13434AKEY(FOR OIL PUMP DRIVE SPLINE)

main95161-30416i200307

13453GEAR, FLYWHEEL RING

main13453-74011i200005-200307

13471PULLEY, CRANKSHAFT

main13470-22020i200005-200111

main13470-22021i200307

main13470-28020i200307

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-30416i200005-200307

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12127i200307

main90119-14106i200307

13519GEAR, OIL PUMP DRIVE

main13519-28010i200005-200307

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-22020i200005-200307

main13521-28010i200005-200307

main13521-28030i200601

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-22020i200005-200307

main19315-28010i200005-200307

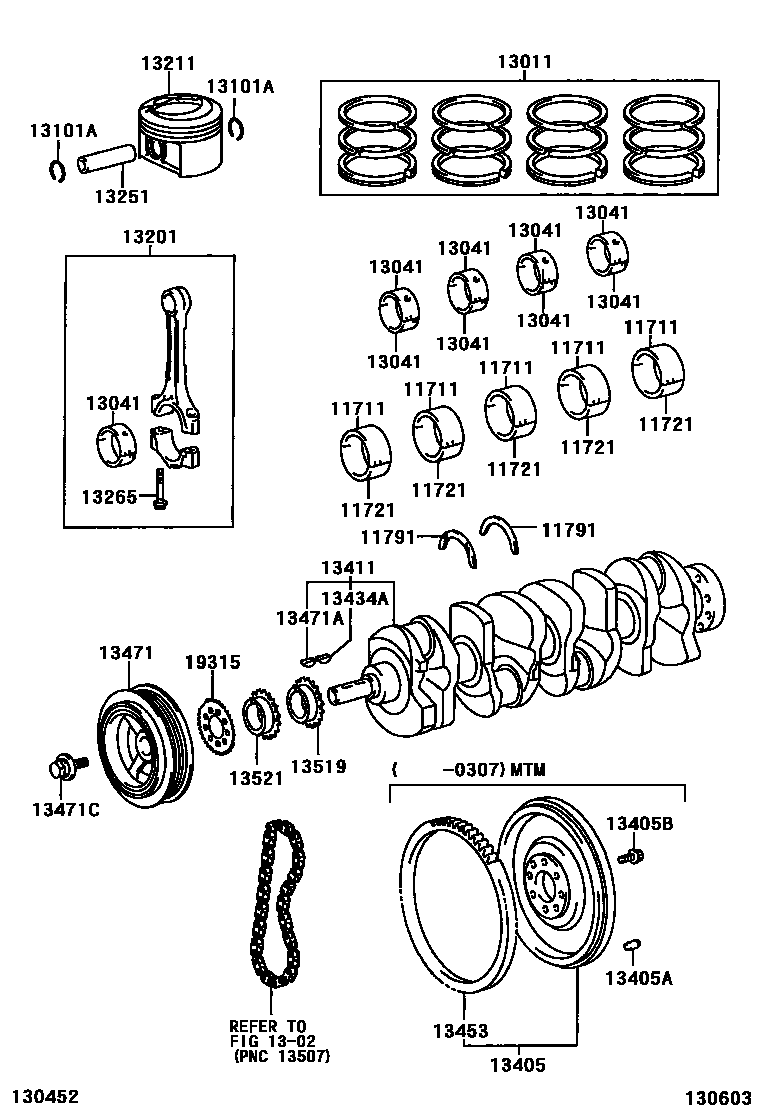

CRANKSHAFT & PISTON
