SHORT BLOCK ASSEMBLY

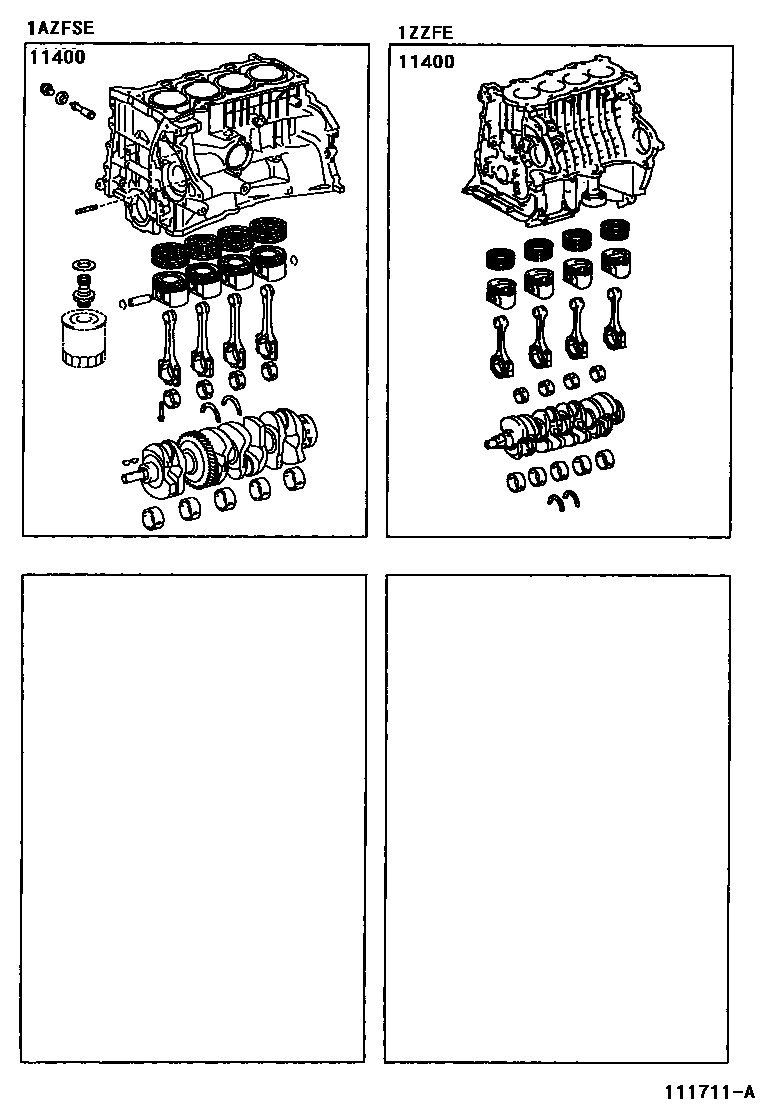

Parts diagram

11400BLOCK ASSY, SHORT

main11400-22060i200101-200202

main11400-22061i200202-200307

main11400-22100i200005-200101

main11400-22180i200408

main11400-22190i200404-200408

main11400-22220i200307-200404

main11400-28060i200005-200307

main11400-28150i200307

1 parts on this diagram · 1 diagram in section
