STANDARD TOOL

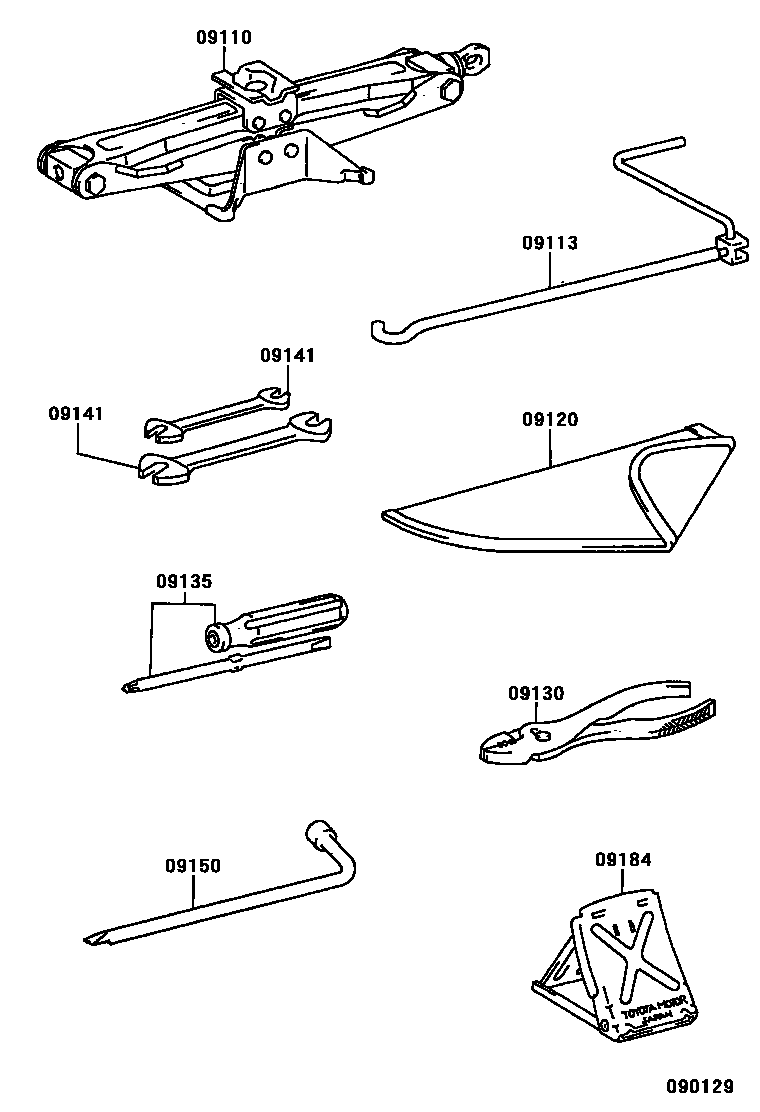

Parts diagram

09110JACK ASSY

main09110-42030i200307-200511

09113HANDLE, JACK

main09113-42010i200005-200307

09120BAG, TOOL

main09120-30050i200005-200307

09130PLIERS

main99913-11500i200005-200307

09135DRIVER, SCREW

main99915-10700i200307

09141SPANNER

main99914-10810i200005-200307

main99914-11214i200005-200307

09150WRENCH, HUB NUT BOX

main09150-40010i200005-200307

09184STOPPER, WHEEL

main09184-00010i200005-200307

8 parts on this diagram · 1 diagram in section
