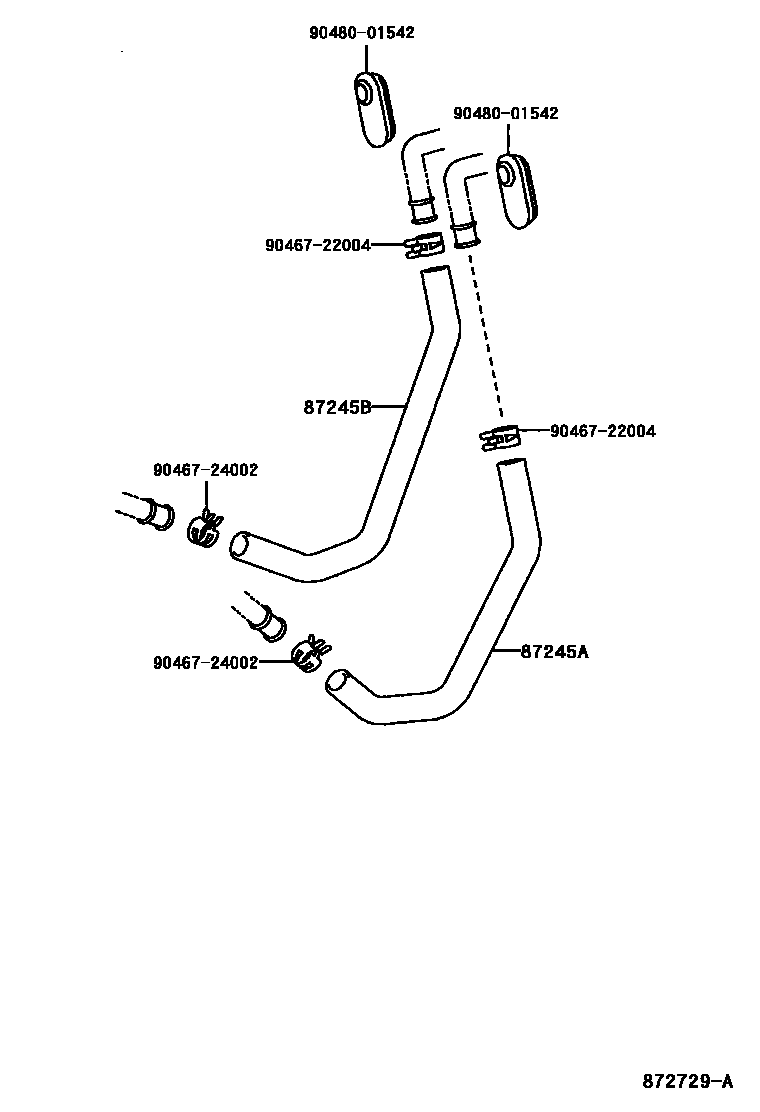

HEATING & AIR CONDITIONING - WATER PIPING

87245AHOSE, HEATER WATER, INLET A

main87245-42010iSXA1#..STD199404-199610

main87245-42011iSXA1#..STD199610-199709

main87245-42050iSXA1#..G199608-199610

main87245-42051iSXA10,11..G199610-199808

main87245-42052iSXA10,11..G199808

main87245-42070iSXA1#..SOT,STD,X199709

87245BHOSE, HEATER WATER, INLET B

main87245-42020iSXA1#..STD199404-199709

main87245-42060iSXA10,11..G199608-199808

main87245-42061iSXA10,11..G199808

main87245-42080iSXA1#..SOT,STD,X199709

9046722004

main90467-22004

9046724002

main90467-24002

9048001542

main90480-01542

5 parts on this diagram · 1 diagram in section
