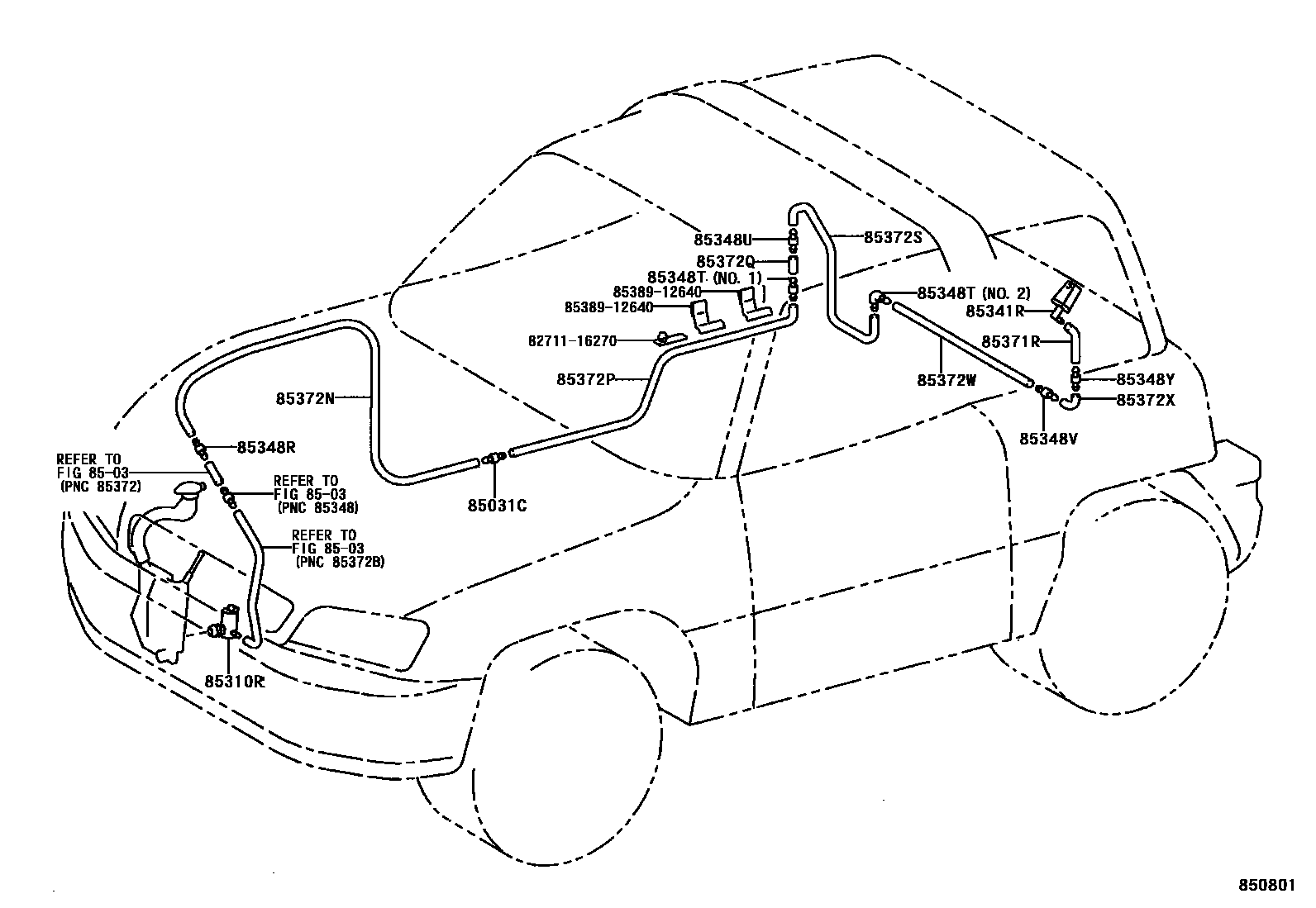

REAR WASHER
8503WINDSHIELD WASHER
85031CVALVE SUB-ASSY, WASHER
85310RMOTOR ASSY, REAR WASHER
85341RNOZZLE ASSY, WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
8271116270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16270
8538912640PACKING, WINDSHIELD WASHER HOSE, NO.1
main85389-12640
18 parts on this diagram · 2 diagrams in section
