WIRELESS DOOR LOCK

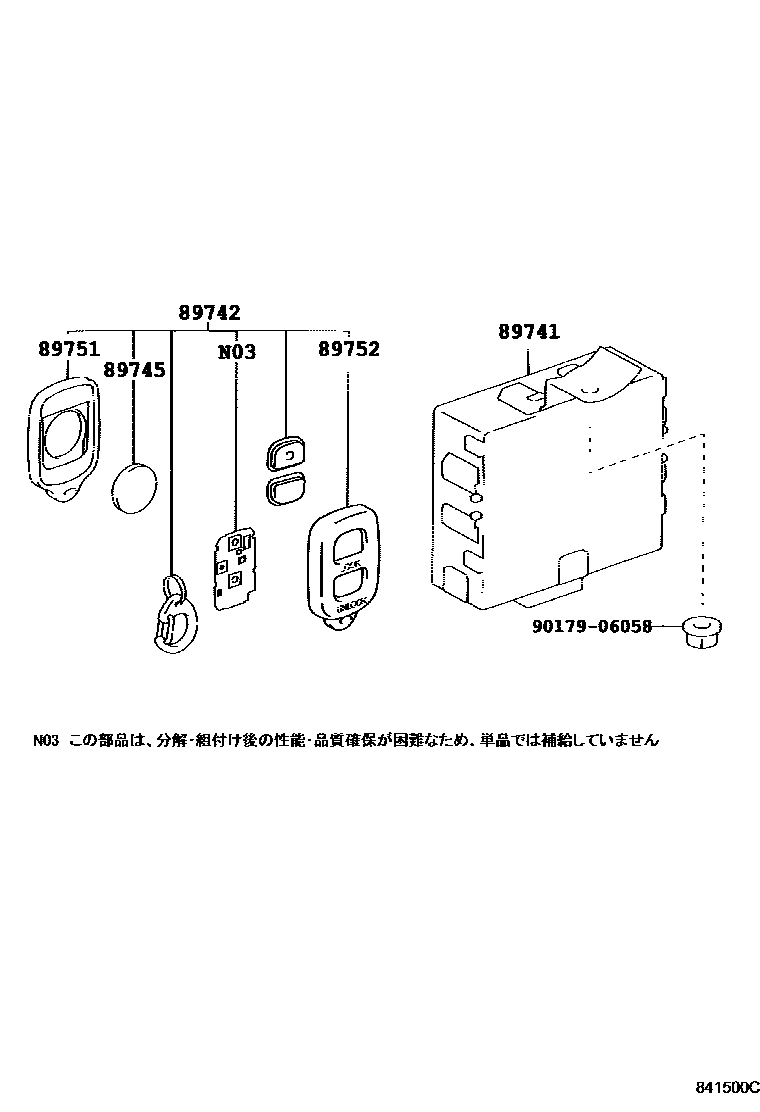

Parts diagram

89741RECEIVER, DOOR CONTROL

main89741-42010i199709-200005

89742TRANSMITTER, DOOR CONTROL

main89742-33120i199709-200005

89745BATTERY, TRANSMITTER

main89745-50010i199709-200005

89751COVER, TRANSMITTER HOUSING

main89751-44050i199709-200005

89752CASE, TRANSMITTER HOUSING

main89752-44020i199709-200005

9017906058

main90179-06058

6 parts on this diagram · 1 diagram in section
