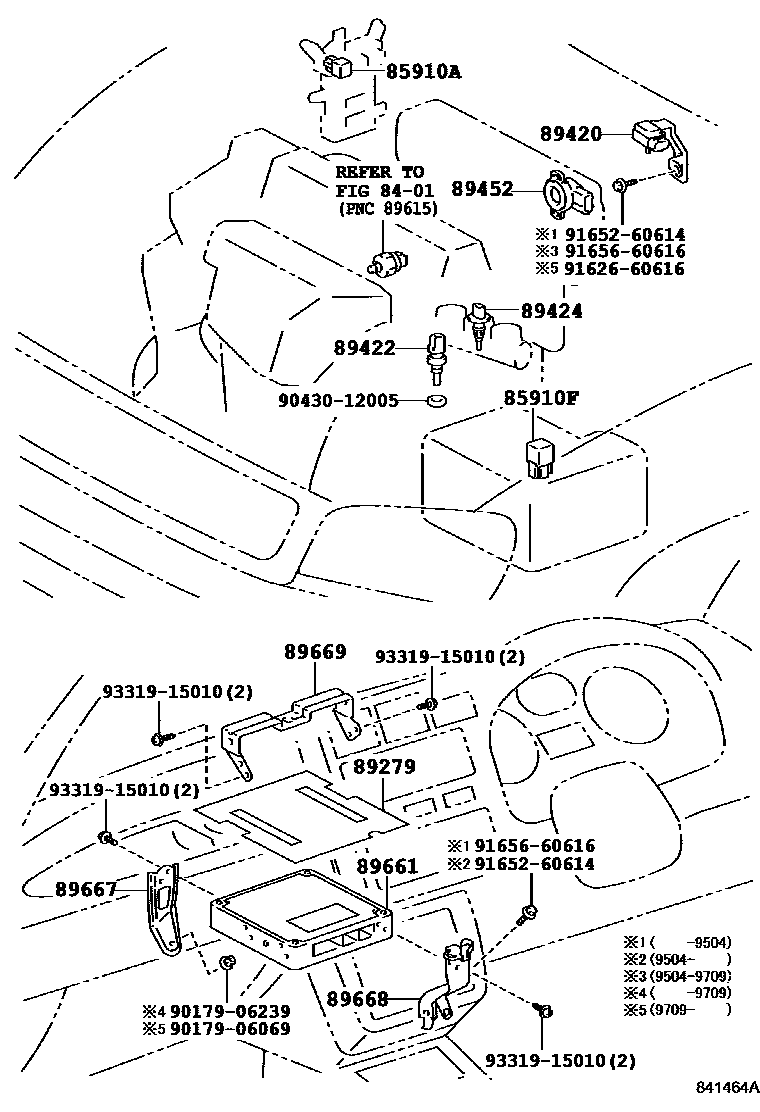

ELECTRONIC FUEL INJECTION SYSTEM

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02009iSXA1#199404-199709

main90987-02012iSXA1#199709

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iSXA1#199404

89279COVER, ENGINE CONTROL COMPUTER

main89279-42010iSXA1#199404

89420SENSOR ASSY, VACUUM

main89420-0W030iSXA1#199606-199608

DELCO

main89420-0W050iSXA1#199608-199709

DELCO

main89420-42010iSXA1#199404-199606

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iSXA10,11..G199808

main89422-20010iSXA1#..STD199404-199709

main89422-22030iSXA10,11..G199808

main89422-35010iSXA1#..G199608-199709

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iSXA1#..STD199404-199709

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iSXA10,11..G199808

main89452-22090iSXA10,11..G199709-199808

main89452-33030iSXA1#..SOT,STD,X199709

89661COMPUTER, ENGINE CONTROL

main89661-42010iSXA1#..MTM..STD199404-199709

main89661-42020iSXA1#..ATM..STD199404-199709

main89661-42280iSXA10,11..MTM..G199608-199808

main89661-42290iSXA10,11..ATM..G199608-199808

main89661-42300iSXA10,11..MTM..(SOT,STD,X)199709

main89661-42310iSXA10,11..ATM..(SOT,STD,X)199709

main89661-42320iSXA15,16..MTM199709

main89661-42330iSXA15,16..ATM199709

main89661-42460iSXA10,11..MTM..G199808

main89661-42470iSXA10,11..ATM..G199808

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-42010iSXA1#199404-199808

main89667-42020iSXA10,11..G199808

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42010iSXA1#199404-199808

main89668-42020iSXA10,11..G199808

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-42010iSXA1#199404-199709

main89669-42020iSXA1#199709

9017906069

main90179-06069

9017906239

main90179-06239

9043012005

main90430-12005

9162660616

main91626-60616

9165260614

main91652-60614

9165660616

main91656-60616

9331915010

main93319-15010

19 parts on this diagram · 1 diagram in section
