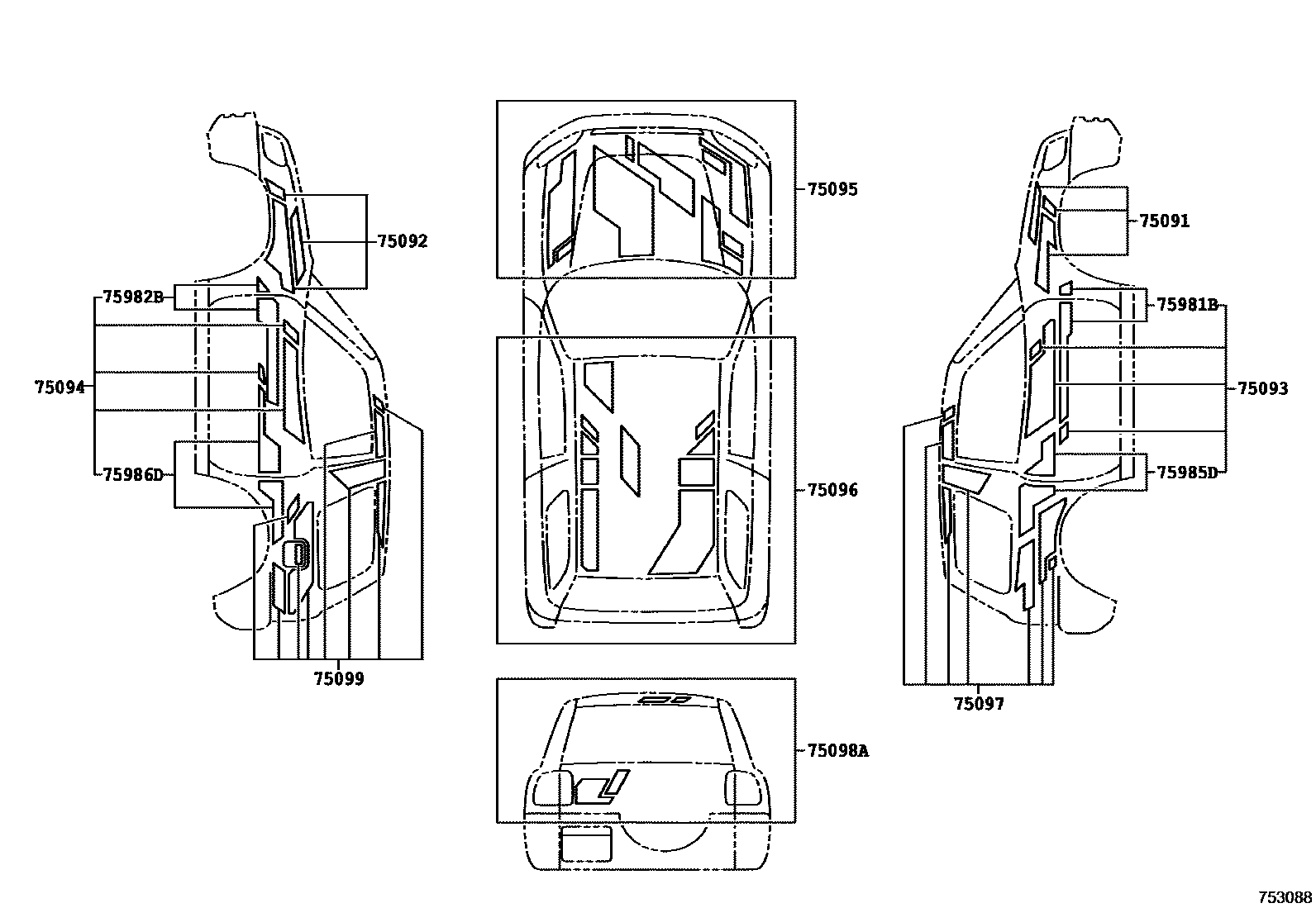

BODY STRIPE

0001 1������ ������ 0002 1������ ������ 0003 1����� & �������������� ������

75091STRIPE SET, FRONT FENDER, RH

main75091-42010-D0iSXA10199503-199603

main75091-42010-F0iSXA10199503-199603

75092STRIPE SET, FRONT FENDER, LH

main75092-42010-D0iSXA10199503-199603

main75092-42010-F0iSXA10199503-199603

75093STRIPE SET, FRONT DOOR, RH

main75093-42010-D0iSXA10199503-199603

main75093-42010-F0iSXA10199503-199603

75094STRIPE SET, FRONT DOOR, LH

main75094-42010-D0iSXA10199503-199603

main75094-42010-F0iSXA10199503-199603

75095STRIPE SET, HOOD

main75095-42010-D0iSXA10199503-199603

main75095-42010-F0iSXA10199503-199603

75096STRIPE SET, ROOF

main75096-42010-D0iSXA10199503-199603

main75096-42010-F0iSXA10199503-199603

75097STRIPE SET, QUARTER, RH

main75097-42010-D0iSXA10199503-199603

main75097-42010-F0iSXA10199503-199603

75098ASTRIPE SET, BACK DOOR

main75098-42010-D0iSXA10199503-199603

main75098-42010-F0iSXA10199503-199603

75099STRIPE SET, QUARTER, LH

main75099-42010-D0iSXA10199503-199603

main75099-42010-F0iSXA10199503-199603

75981BSTRIPE, FENDER, RH

main75981-42010iSXA10199503-199603

75982BSTRIPE, FENDER, LH

main75982-42010iSXA10199503-199603

75985DSTRIPE, FRONT DOOR OUTSIDE, RH

main75985-42010iSXA10199503-199603

75986DSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-42010iSXA10199503-199603

13 parts on this diagram · 3 diagrams in section
